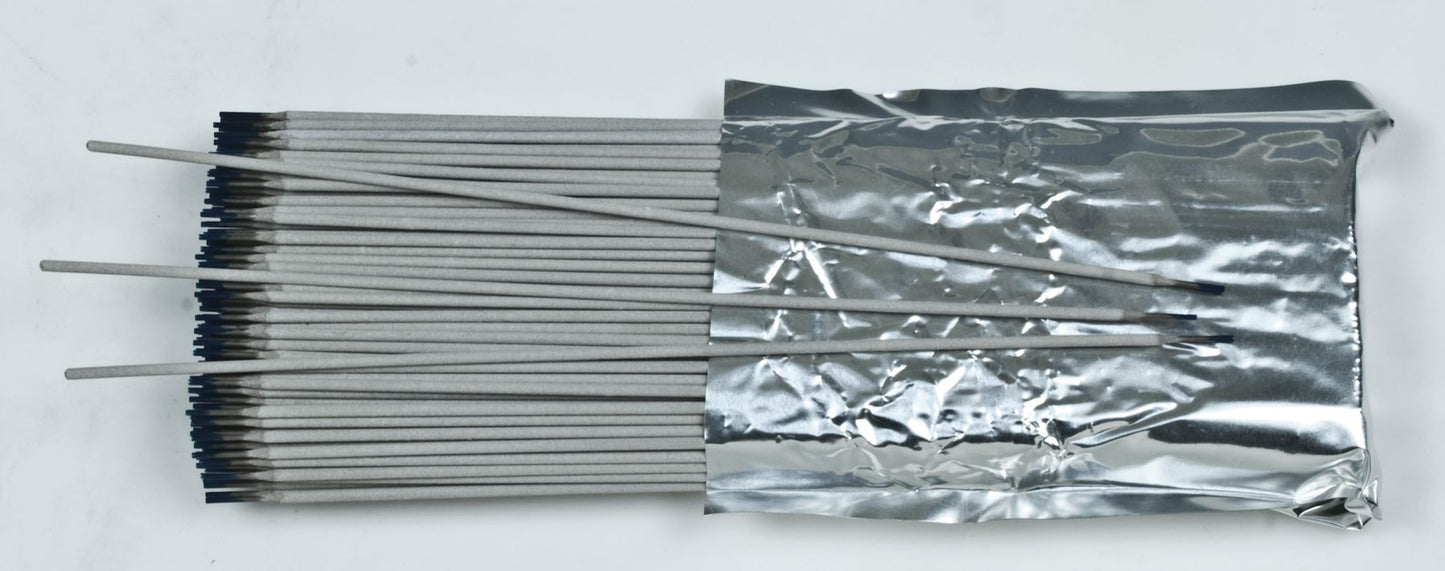

3880 Stainless Steel Stick Rod Electrode 1/16"
(Pack of
5.0)
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSIElongation: Up to 42%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be as clean as possible. However, Cronaweld™ 3880 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. Hold a medium to short arc and tilt electrode 10° in direction of travel. Remove slag between passes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 13-12
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
377 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X5X7
Couldn't load pickup availability
Flat Soapstone Holder Heavy Duty
Couldn't load pickup availability
1/4 on 1/2 Dimension I Single Pass Overlay
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
Product Description
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSIElongation: Up to 42%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be as clean as possible. However, Cronaweld™ 3880 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. Hold a medium to short arc and tilt electrode 10° in direction of travel. Remove slag between passes.
Technical Specifications
| Item#: | CW1885 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/16 " |
| Tensile Strength | 90,000 PSI |
| Elongation | 42 % |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
