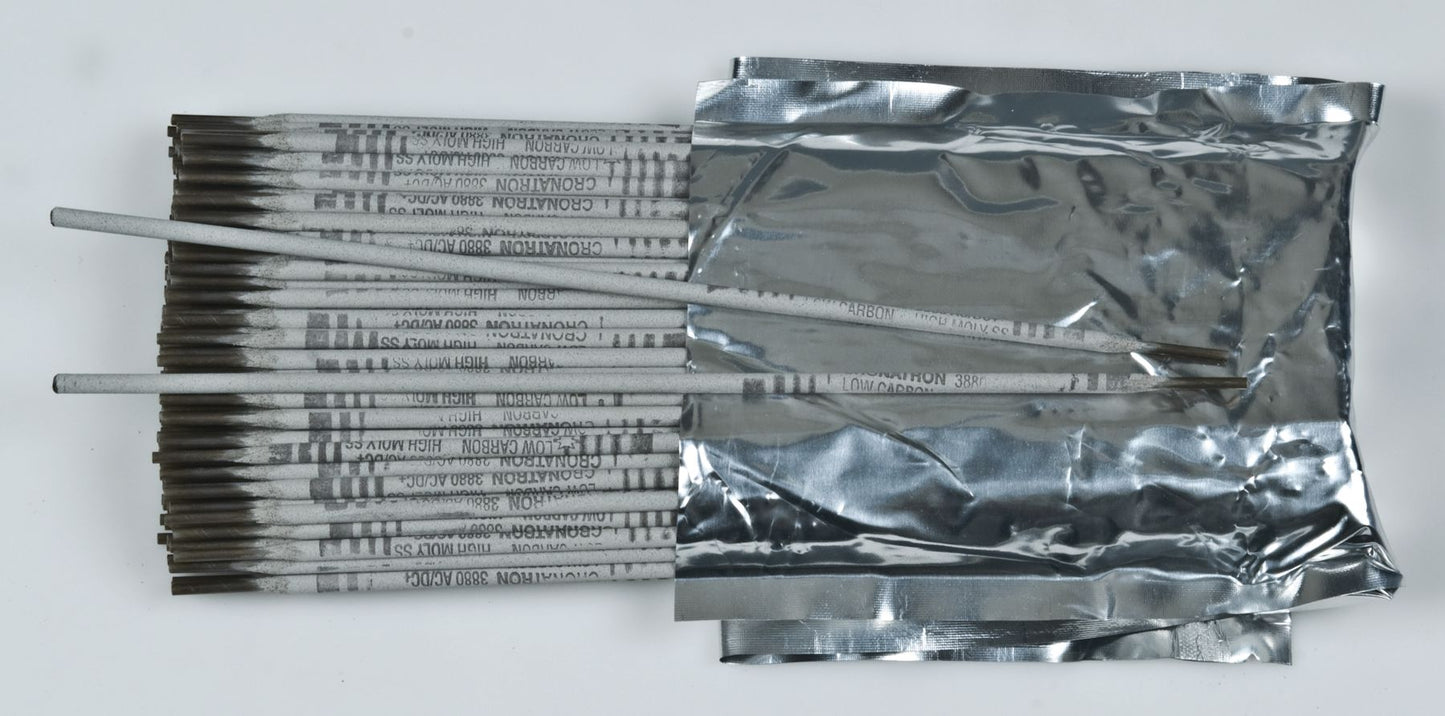

3880 Stainless Steel Stick Rod Electrode, Flux Coated, 50-70 Amps, 42% Elongation, DCRP/AC Polarity, Corrosion Resistance, 3/32"
(Pack of
5)
SKU:CW1884 Item#: CW1884
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSI
Elongation: Up to 42%
Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be as clean as possible. However, Cronaweld™ 3880 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. Hold a medium to short arc and tilt electrode 10° in direction of travel. Remove slag between passes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-12
Frequently Bought Together
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 5/32"
Couldn't load pickup availability
E316L-16 Stainless Steel Stick Rod Electrode 5/32"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Carbon Air Arc Stick Rod Electrode 1/4"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
Oxy-Therm Collet Nut
Couldn't load pickup availability
Product Description
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSI
Elongation: Up to 42%
Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be as clean as possible. However, Cronaweld™ 3880 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. Hold a medium to short arc and tilt electrode 10° in direction of travel. Remove slag between passes.
Technical Specifications
| Item#: | CW1884 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 90,000 PSI |
| Elongation | 42 % |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
