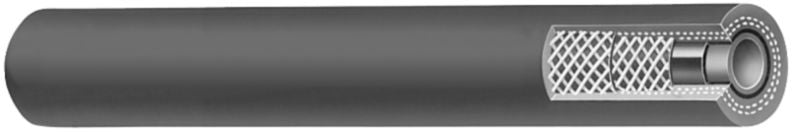

PolarSeal AC134A Refrigerant Hose, 2Plies Spiral Poly. Reinforcement& Nyln Inner Tube, 500PSI, 13/32(-8)"(ID), 0.91"(OD), 25ft
(Pack of
25)
SKU:57879 08 Item#: 57879 08
Ideal for liquid and gaseous R134A and R12 refrigerants in automotive and air conditioning and industrial systems (i.e. tractors, construction trucks, and mobile and stationary refrigeration). PolarSeal® hoses are designed to minimize permeation of R134A refrigerant and contamination of the system.
J2064
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube: Black, synthetic rubber (chloroprene)• Reinforcement: Spiraled polyester• Cover: Black, synthetic rubber (EPDM)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 25-foot length
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 50'
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 0.31" 1ft
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 1.12" 1ft
Couldn't load pickup availability
Standpipe to Male Air Brake PTFE Hose 1/2" 36"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Ideal for liquid and gaseous R134A and R12 refrigerants in automotive and air conditioning and industrial systems (i.e. tractors, construction trucks, and mobile and stationary refrigeration). PolarSeal® hoses are designed to minimize permeation of R134A refrigerant and contamination of the system.J2064
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube: Black, synthetic rubber (chloroprene)• Reinforcement: Spiraled polyester• Cover: Black, synthetic rubber (EPDM)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 25-foot length
Technical Specifications
| Item#: | 57879 08 |
|---|---|
| Manufacturer Model #: | 8AC134A |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064, Type C, Class II Performance |
| Manufacturer Series Number | AC134A |
| Manufacturer Series Name | PolarSeal |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 3 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 2 Plies Spiral Polyester |
| Hose Cover Material | EPDM |
| Fitting Series | G45 |
| Temperature | -22F to +257F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 8.0 lb |
