Axion MSR Pedestal Mount Eye/Face Wash Station, Plastic, Stainless/Galvanized Steel, 10 gpm Flow Rate, 11 in. Bowl, Silver
(Pack of 1)

Haws

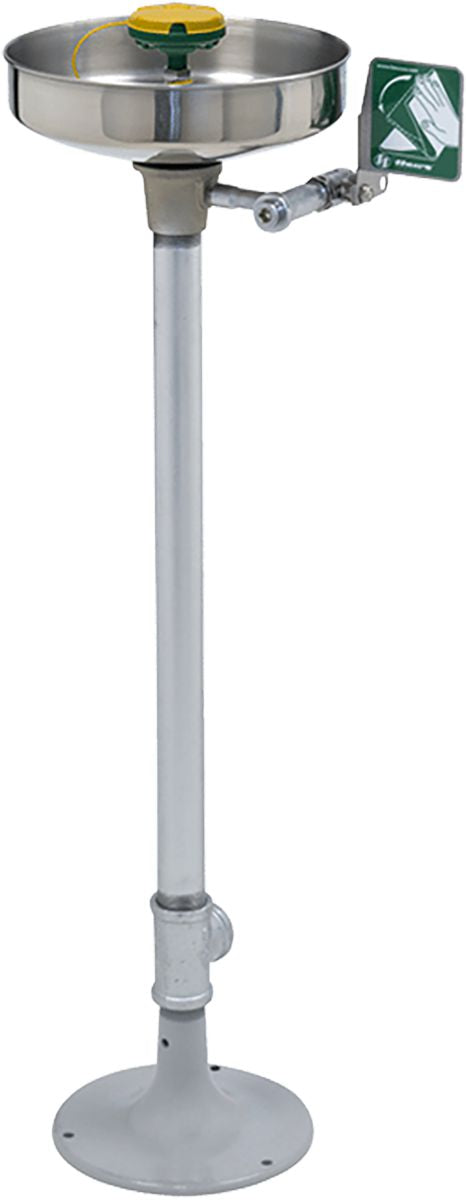

A pedestal eye/face wash includes a stainless steel 11" round bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Units also include 1-1/4" Schedule 40 hot-dipped galvanized steel pipe and fittings along with powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) stainless steel receptor and 1-1/4" NPT galvanized stanchion
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/4" NPT
• ANSI Z358.1 tempering compliance options

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Product Description

Technical Specifications

Item#:	1647982
Style	Plumbed In
Type	Eye/Face Wash
Description	Eye/Face Wash Station
Flow Rate	10 gal/min
Water Supply	1/2" NPT
Approvals	ANSI/ISEA Z358.1, CSA Certified
Material	Plastic/Stainless Steel/Galvanized Steel
Mount Style	Pedestal
Color	Silver
Eyewash Bowl Diameter	11 "
Width	15 "
Height	38 "
Eye Wash Material	Plastic
Body Material	Stainless Steel
Includes	Dust Cover, Floor Flange, Inspection Tag, Pipe and Fittings, Universal Identification Sign
Quantity Per Package	1 ea.
UNSPSC #:	46181810
TAA Compliant:	Yes
