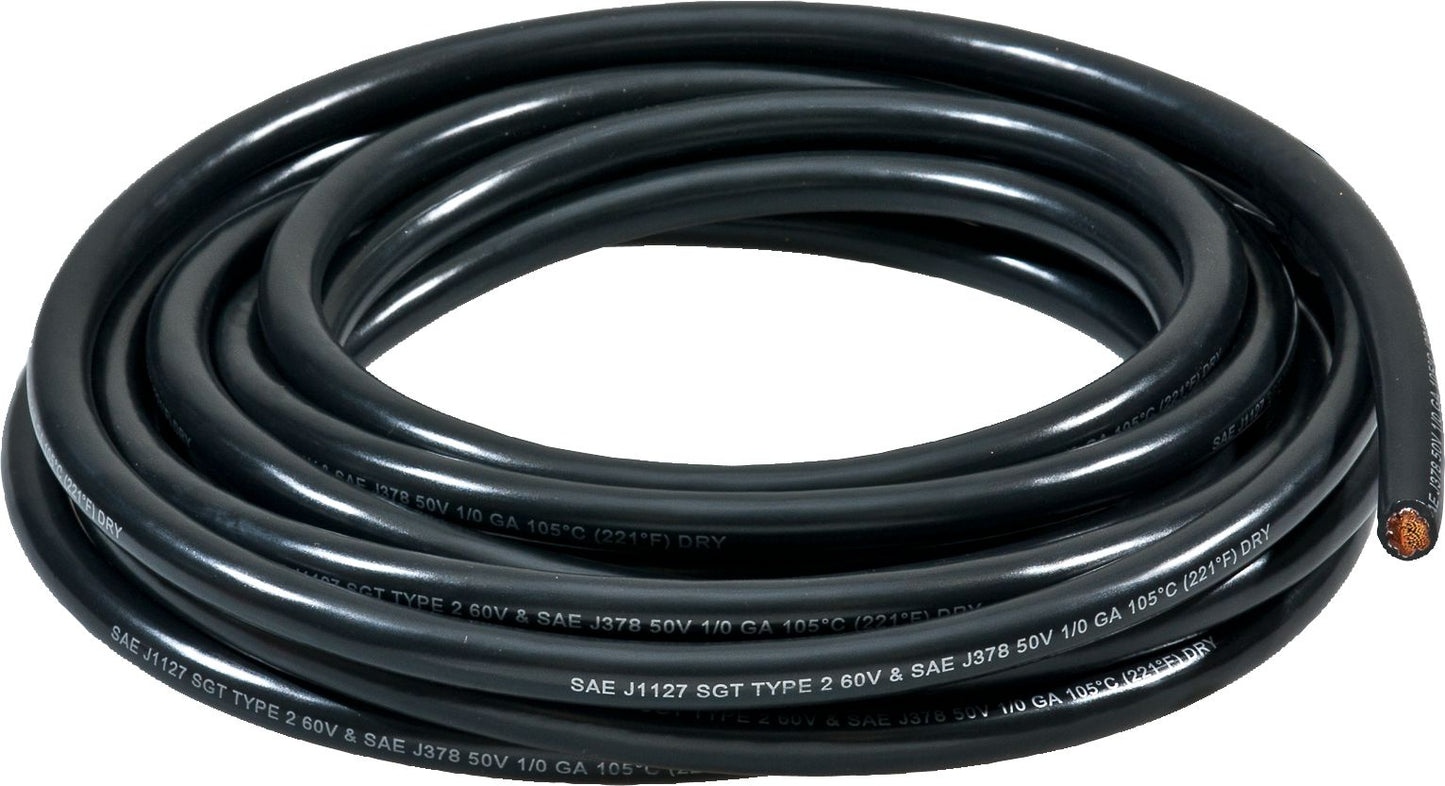

Battery Cable, 1/0 AWG, 25' Length, Black, 50 Volts, PVC Insulated, White-Crimp Color Code, Copper Conductor, Tru-Conduct
(Pack of
1)
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together

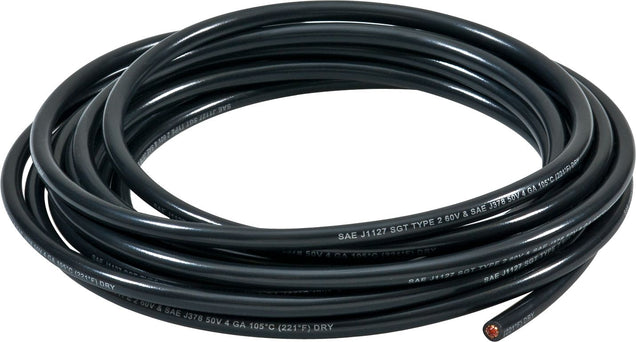

Flexible Battery Cable 4 AWG Black 50'
Couldn't load pickup availability

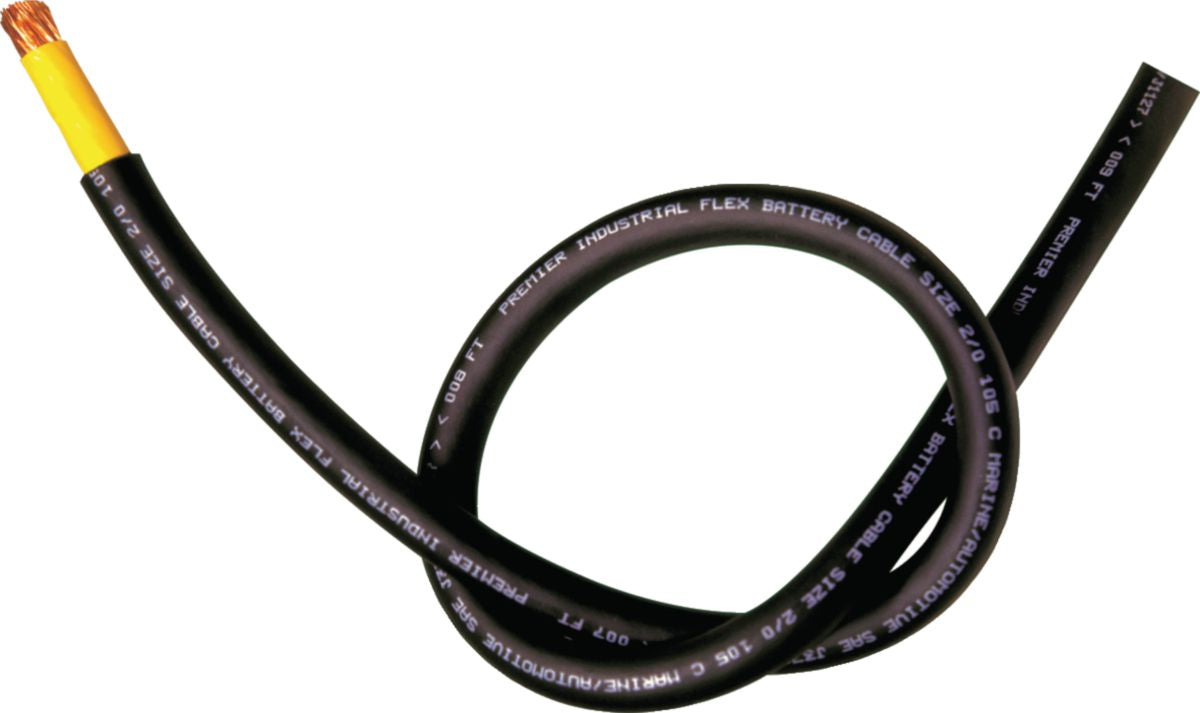

Flexible Battery Cable 4/0 AWG Black 25'
Couldn't load pickup availability

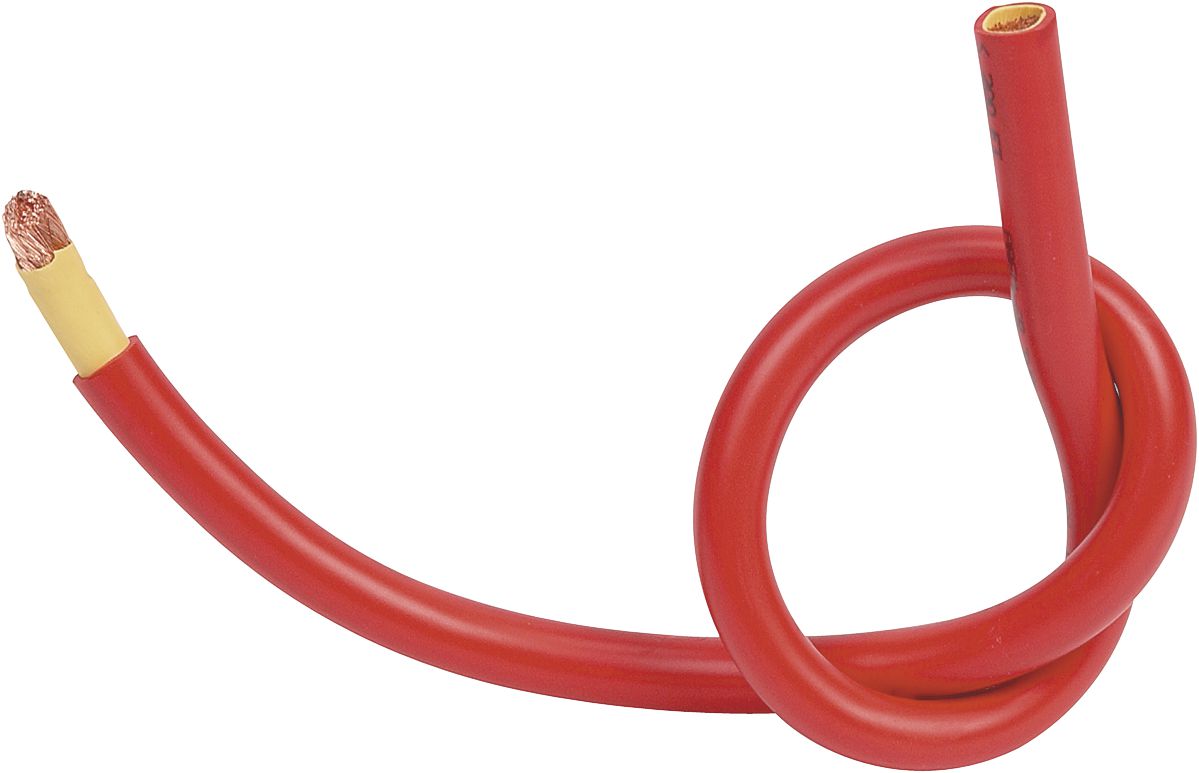

Flexible Battery Cable 2/0 AWG Red 25'
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4 AWG Gray 3/8"
Couldn't load pickup availability
DT Series Plug 13A 2 Contacts
Couldn't load pickup availability
Pin Contact 20-16 AWG Size 16
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Technical Specifications
| Item#: | 84800 |
|---|---|
| Cable Gauge | 1/0 |
| Color | Black |
| Volts | 50 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 140 °F |
| Length | 25 ft |
| Crimp Color Code | White |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 9/16 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 11.0 lb |
