Blind Rivet Nut Insert Riv-Float 1/4-20
(Pack of
25.0)
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

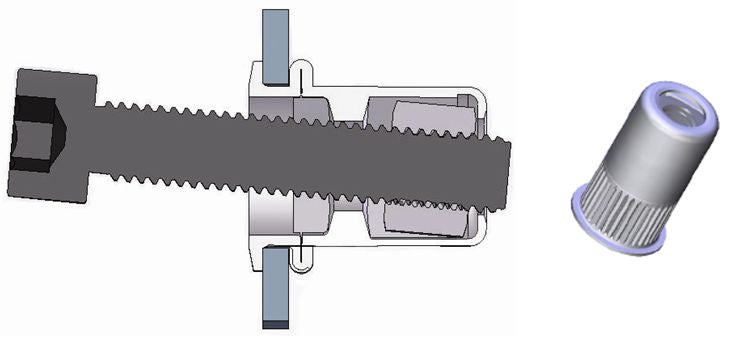

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 6-20
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 5/16-18
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M6-1
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' White
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Positive
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Threaded Insert for Soft Material #8-32
Couldn't load pickup availability
Diamond Grip II Installation Kit 3/8-16
Couldn't load pickup availability
Diamond Grip II Installation Kit #6-32
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405642 |
|---|---|
| Diameter | 1/4 " |
| Grip Range | .027 - .150 " |
| Length | 0.819 " |
| Thread Pitch | 20 |
| Hole Size | 0.531 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | 1/4-20 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
