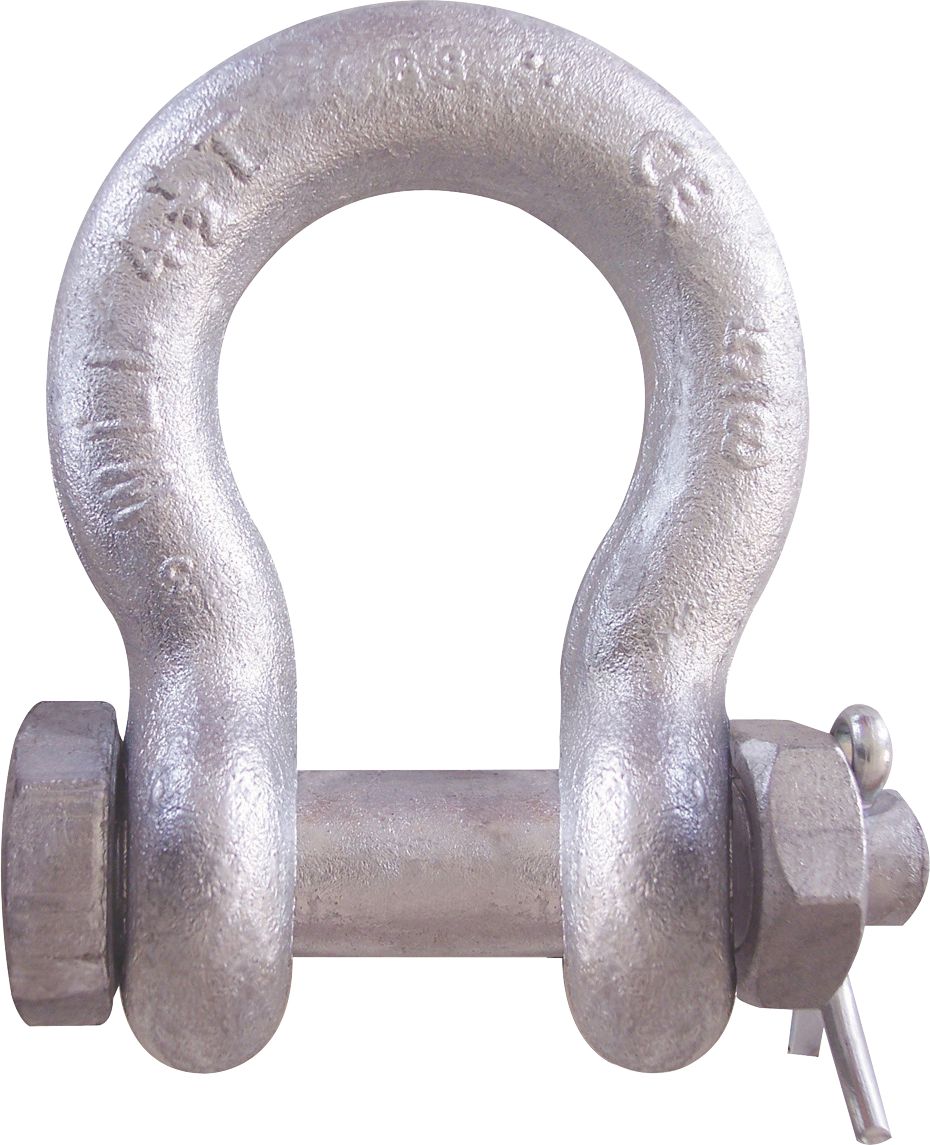

Anchor Shackle, Bolt, Nut and Cotter, 1/4", 1,500 lb WLL, Carbon Steel, Galvanized
(Pack of
2)
SKU:1429914 Item#: 1429914
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 15-22
Frequently Bought Together
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Hook Ceiling Trade Size 10
Couldn't load pickup availability
Eye Bolts, Machinery, 3/8 x 1-1/4"
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 4' Length
Couldn't load pickup availability
Wire Rope Sleeve, 1/16", Aluminum
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Copper, Zinc Plated
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1", 17,000 lb WLL
Couldn't load pickup availability
Oversize Screw Pin Anchor Shackle, Stainless Steel, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 1,500 lb WLL
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429914 |
|---|---|
| Type | Anchor Shackle |
| Style | Bolt, Nut and Cotter |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 1/4 " |
| Working Load Limit | 1,500 lb |
| Pin Diameter | 5/16 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 15/32 " |
| Bow Width | 3/4 " |
| Depth | 1-1/8 " |
| UNSPSC #: | 31162803 |
| TAA Compliant: | Yes |
| Weight: | 0.3 lb |
