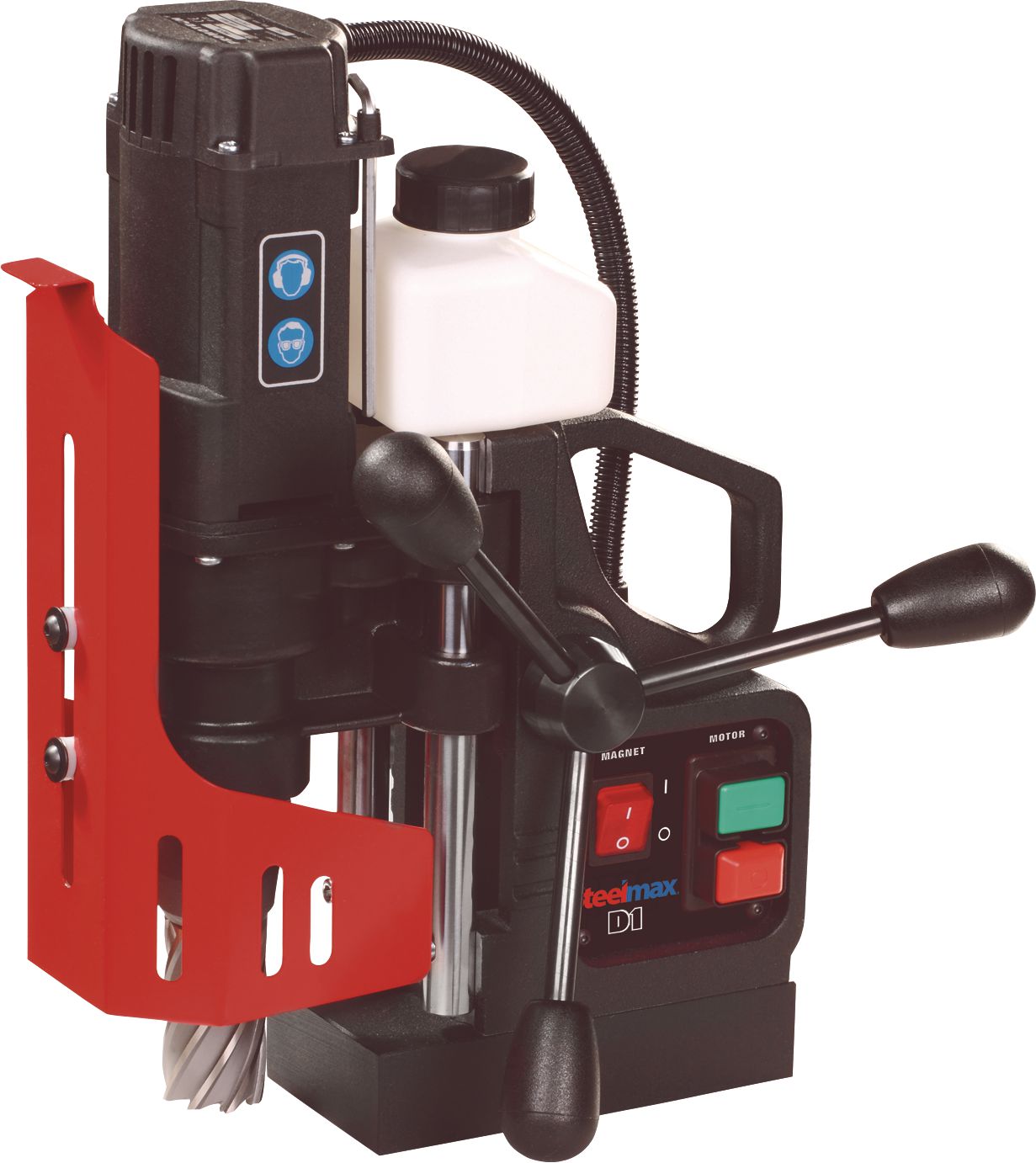

D1 Portable Magnetic Drill, Exposed Motor Cord, Adjustable Cutter Guard, 2" Depth of Cut, 3/4" Arbor Bore, 1.3HP 920W Motor
(Pack of
1)
SKU:64662 Item#: 64662
Steelmax® D1 has higher power, weighs less, and has more features than any drill in its class. Steelmax® D1 accepts up to 1-3/8" dia. cutters with a 2" maximum depth of cut.
• New exposed motor cord
• Ultra compact 14-13/16" working height (with coolant bottle)
• Adjustable cutter guard with built-in chip breaker
• Through-spindle coolant system with removable reservoir
• Little maintenance with no gib adjustment and extreme accuracy
• Fewer parts result in less run-out
• “Safe Magnet” circuitry recognizes magnetic holding power
• Spring slug-ejecting arbor system
• Magnet uses 50% power when motor is not under load
• Advance motor for easy field service
D1 Specifications
• Height: 14-13/16" maximum; 12-1/16" minimum
• Width: 6-3/8"
• Length: 9-1/2"
• Weight: 22 lbs.
• Motor: 1.3 hp 920W (single phase); 120V/350 RPM (load)
• Arbor bore: 3/4"
• Drill point breakaway: 859 lbs.
• Magnetic base: 3-1/8" x 6-5/16" x 1-7/16"
• Magnetic dead lift: 2,135 lbs.
• Cutter dia. (maximum): 1-3/8"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-9/16"
• Centerline pilot to motor face: 2-3/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Premium Grinding Wheel 4-1/2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/32"
Couldn't load pickup availability
D2X Portable Magnetic Drill 2" Depth of Cut
Couldn't load pickup availability
Morse Taper Drill Adapter
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Morse Taper Drill Adapter
Couldn't load pickup availability
Power Cord for 9" Circular Saw
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Brown
Couldn't load pickup availability
Scotch-Brite Roloc Surface Conditioning Disc 2"
Couldn't load pickup availability
Large Index-Tend Pry Bar
Couldn't load pickup availability
Product Description
Steelmax® D1 has higher power, weighs less, and has more features than any drill in its class. Steelmax® D1 accepts up to 1-3/8" dia. cutters with a 2" maximum depth of cut.• New exposed motor cord
• Ultra compact 14-13/16" working height (with coolant bottle)
• Adjustable cutter guard with built-in chip breaker
• Through-spindle coolant system with removable reservoir
• Little maintenance with no gib adjustment and extreme accuracy
• Fewer parts result in less run-out
• “Safe Magnet” circuitry recognizes magnetic holding power
• Spring slug-ejecting arbor system
• Magnet uses 50% power when motor is not under load
• Advance motor for easy field service
D1 Specifications
• Height: 14-13/16" maximum; 12-1/16" minimum
• Width: 6-3/8"
• Length: 9-1/2"
• Weight: 22 lbs.
• Motor: 1.3 hp 920W (single phase); 120V/350 RPM (load)
• Arbor bore: 3/4"
• Drill point breakaway: 859 lbs.
• Magnetic base: 3-1/8" x 6-5/16" x 1-7/16"
• Magnetic dead lift: 2,135 lbs.
• Cutter dia. (maximum): 1-3/8"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-9/16"
• Centerline pilot to motor face: 2-3/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 64662 |
|---|---|
| Type | Magnetic Drill |
| Cutter Diameter | 1-3/8 " |
| Depth of Cut | 2 " |
| Arbor Bore | 3/4 " |
| Drill Point Breakaway | 859 lb |
| Magnetic Dead Lift | 2,135 lb |
| Magnetic Base | 3-1/8" x 6-5/16" x 1-7/16" |
| Centerline Pilot to Motor Face | 2-3/8 " |
| Centerline Pilot to Magnet Face | 1-9/16 " |
| Motor | 1.3 hp 920W (single phase); 120V/350 RPM (load) |
| Length | 9-1/2 " |
| Width | 6-3/8 " |
| Height | 14-13/16" maximum; 12-1/16" minimum |
| Weight | 22 lb |
| UNSPSC #: | 23241801 |
| TAA Compliant: | Yes |
| Weight: | 29.0 lb |
