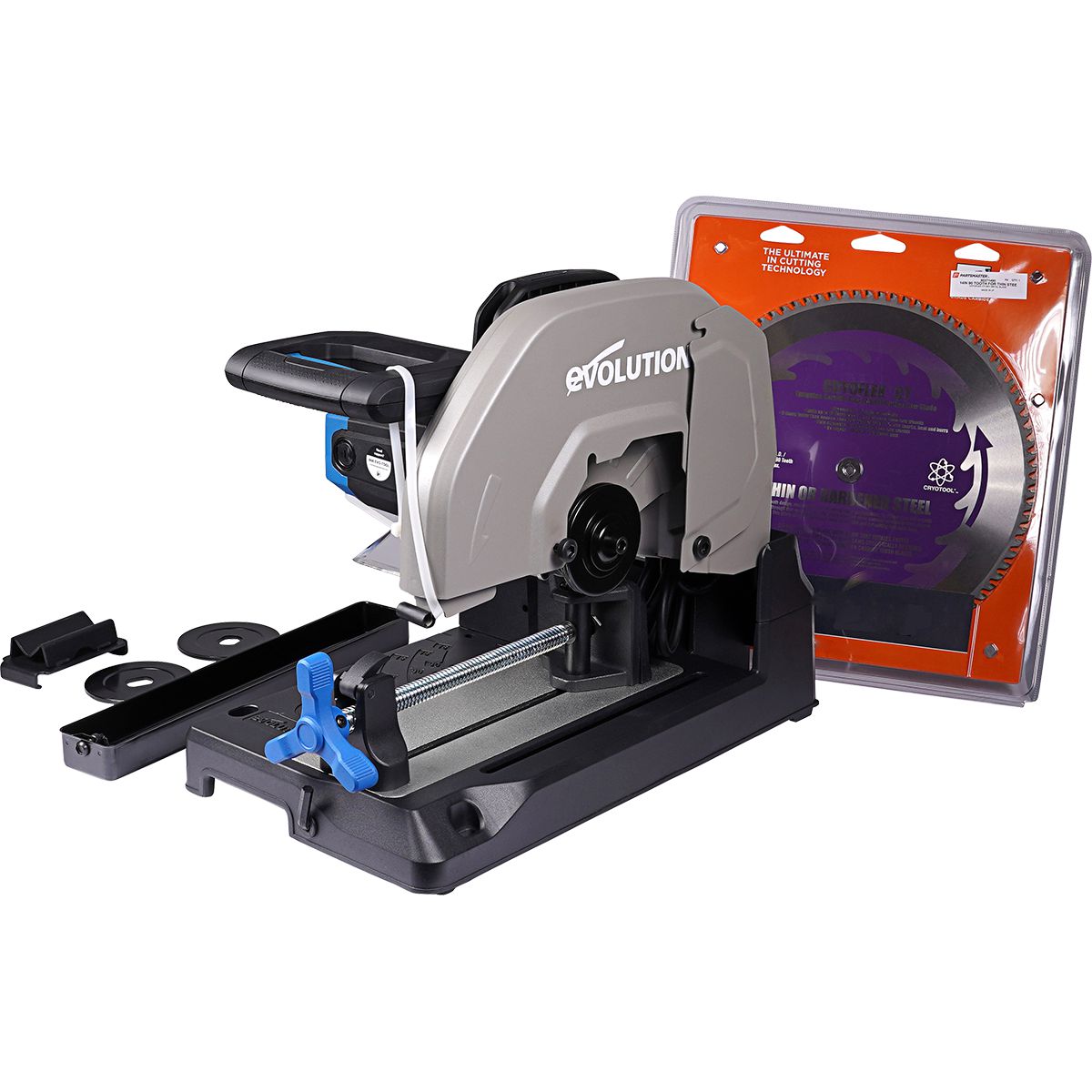

Evolution High Torque Low Speed 110-Volt Metal Cutting Saw W/ 66T Thick Steel Blade
(Pack of
1)
SKU:DY80370009 Item#: DY80370009
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Frequently Bought Together
7-1/4" Circular Saw 3500rpm 13A Motor
Couldn't load pickup availability
14" Chop Saw 1450rpm 15A Motor
Couldn't load pickup availability
Evolution 9" Metal Cutting Circular Saw W/ 3 Stainless Steel Blades
Couldn't load pickup availability
Curved Wood Handle Scratch Brush
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
7-1/4" Circular Saw 3500rpm 13A Motor
Couldn't load pickup availability
14" Chop Saw 1450rpm 15A Motor
Couldn't load pickup availability
Motor Brush Holder for 7-1/4" Circular Saw
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Mini-Hole Saw Kit
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 1/4-20
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
Product Description
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Technical Specifications
| Item#: | DY80370009 |
|---|---|
| Blade Diameter | 14 " |
| Blade Arbor | 1 " |
| Depth of Cut | 5-1/8" for Round 90° (1/4" Wall) |
| Maximum RPM | 1,450 |
| Motor | 115V, 2,200W, 60Hz |
| Dimensions | 22.00" H x 22.0" W x 12-3/4" L |
| UNSPSC #: | 27112802 |
| TAA Compliant: | No |
