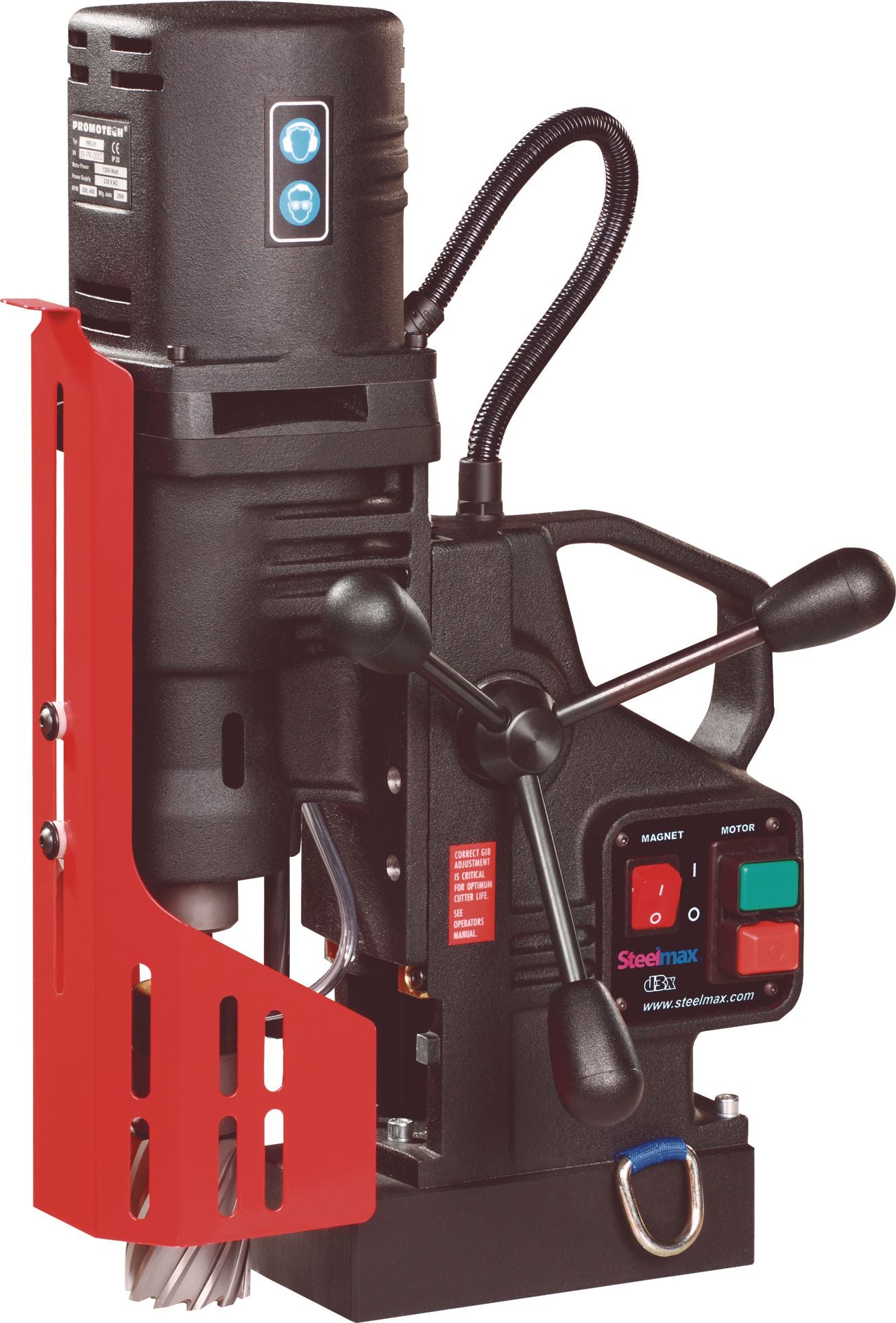

D2X Portable Magnetic Drill 2" Depth of Cut
(Pack of
1.0)
Steelmax® D2X is the portable, powerful, low-maintenance magnetic drill with a unique, self-adjusting gib system that reduces maintenance and costly cutter breakage due to spindle run-out. Longer cutter life means money saved every day you use the D2X.
• Unique, self-adjusting gib system extends cutter life
• Through-spindle coolant system with integrated reservoir
• “Safe Magnet” circuitry increases magnet hold and improves efficiency
• Powerful 1,260W motor and all-metal housing make the D2X a durable production tool
• 2-speed gearbox works with twist bits to 7/8" dia. and annular cutters to 2" dia.
• Adjustable cutter guard with built-in chip breaker
D2X Specifications
• Height: 22-3/4" maximum; 16-3/4" minimum
• Width: 10-11/16"
• Length: 11-11/16"
• Weight: 35 lbs. 9 oz.
• Motor: 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,074 lbs.
• Magnetic base: 3-9/16" x 7-1/16" x 1-7/8"
• Magnetic dead lift: 2,697 lbs.
• Cutter dia. (maximum): 2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-13/16"
• Centerline pilot to motor face: 1-3/4"
• Maximum twist drill dia.: 7/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Morse Taper Drill Adapter
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Cryoflex High Torque Metal Cutting Saw 14 Inch W/O Blade
Couldn't load pickup availability
7-1/4" Circular Saw 3500rpm 13A Motor
Couldn't load pickup availability
14" Chop Saw 1450rpm 15A Motor
Couldn't load pickup availability
Large Index-Tend Pry Bar
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Product Description
Steelmax® D2X is the portable, powerful, low-maintenance magnetic drill with a unique, self-adjusting gib system that reduces maintenance and costly cutter breakage due to spindle run-out. Longer cutter life means money saved every day you use the D2X.• Unique, self-adjusting gib system extends cutter life
• Through-spindle coolant system with integrated reservoir
• “Safe Magnet” circuitry increases magnet hold and improves efficiency
• Powerful 1,260W motor and all-metal housing make the D2X a durable production tool
• 2-speed gearbox works with twist bits to 7/8" dia. and annular cutters to 2" dia.
• Adjustable cutter guard with built-in chip breaker
D2X Specifications
• Height: 22-3/4" maximum; 16-3/4" minimum
• Width: 10-11/16"
• Length: 11-11/16"
• Weight: 35 lbs. 9 oz.
• Motor: 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,074 lbs.
• Magnetic base: 3-9/16" x 7-1/16" x 1-7/8"
• Magnetic dead lift: 2,697 lbs.
• Cutter dia. (maximum): 2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-13/16"
• Centerline pilot to motor face: 1-3/4"
• Maximum twist drill dia.: 7/8"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold; insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | CW5616 |
|---|---|
| Type | Magnetic Drill |
| Cutter Diameter | 2 " |
| Depth of Cut | 2 " |
| Arbor Bore | 3/4 " |
| Drill Point Breakaway | 1,074 lb |
| Maximum Twist Drill Diameter | 7/8 " |
| Magnetic Dead Lift | 2,697 lb |
| Magnetic Base | 3-9/16" x 7-1/16" x 1-7/8 |
| Centerline Pilot to Motor Face | 1-3/4 " |
| Centerline Pilot to Magnet Face | 1-13/16 " |
| Motor | 1260W, 115V/60Hz or 230V/50Hz, 230V/50Hz, 200 RPM and 400 RPM |
| Length | 11-11/16 " |
| Width | 10-11/16 " |
| Height | 22-3/4" maximum; 16-3/4" minimum |
| Weight | 35s. 9 oz lb |
| UNSPSC #: | 23241801 |
| TAA Compliant: | No |
| Weight: | 57.5 lb |
