Home Automotive Hardware Door Panel Retainer Plastic 30mm
Automotive Hardware

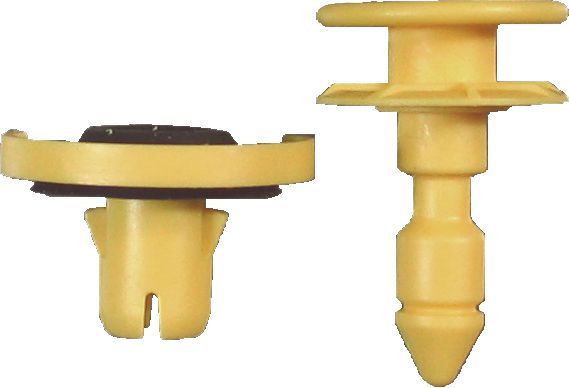

Door Panel Retainer for GM, includes 10 Pins/Grommets, 24mm Grommet Flange Diameter, 9mm Grommet Hole Diameter, 30mm Pin Length
(Pack of 10)

Item#: KT14365

Lawson Products

• Cadillac STS and SRX 2004+, Hummer H3 2006+, Chevrolet Cobalt and HHR 2006+
• GM OEM No. 11562044
• Contains: 15 – 11561600 Pins and 15 – 11561500 Grommets with Seal
• Yellow Pin: 19.5mm Upper Head, 30mm Overall Length, 4.2mm Trim Thickness
• Yellow Grommet: M9 Hole Dia., 24mm Flange Dia., 1.7mm – 1.9mm Panel Range
• Plastic

Read More
Check Availability

Catalog page#: 26-66

Frequently Bought Together


Radiator Side Air Baffle Retainer Nylon 11/16"

Item#: P18339

PZ Series Zinc Clip-On Wheel Weight 3/4oz

Item#: KT14850

PZ Series Zinc Clip-On Wheel Weight 1/2oz

Item#: KT14849

Molding Clip with Sealer Nylon White 10 x 12mm

Item#: P85218

Air Inlet Grille/Bumper Fascia Push-Type Retainer

Item#: KT14302

Phillips Slotted Truss Head License Plate Screw

Item#: KT13772

Deck Lid Molding/High Mounted Stop Lamp Retainer

Item#: 1446680

Univrsl 5 Blade Relay Harness Connector

Item#: 1680214

Trim Panel Retainer Nylon 11/16"

Item#: P85435

Phillips Round Washer Head Trim Drill Point Screw

Item#: P30411

Fender Washer Oversized 3/8" ID 1-1/2" OD

Item#: P41705

MCN Series Lead Clip-On Wheel Weight 1-1/4 oz

Item#: P44747

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Product Description

• Cadillac STS and SRX 2004+, Hummer H3 2006+, Chevrolet Cobalt and HHR 2006+
• GM OEM No. 11562044
• Contains: 15 – 11561600 Pins and 15 – 11561500 Grommets with Seal
• Yellow Pin: 19.5mm Upper Head, 30mm Overall Length, 4.2mm Trim Thickness
• Yellow Grommet: M9 Hole Dia., 24mm Flange Dia., 1.7mm – 1.9mm Panel Range
• Plastic

Technical Specifications

Item#: KT14365
Type Retainer
Style Door
Pin Material Plastic
Pin Color Yellow
Pin Overall Length 30 mm
Pin Upper Head 19.5 mm
Pin Trim Thickness 4.2 mm
Grommet Hole Diameter 9 mm
Grommet Flange Diameter 24 mm
Grommet Panel Range 1.7 - 1.9 mm
Grommet Material Plastic
Grommet Color Yellow
Contains 10 Pins and 10 Grommets
Quantity Per Package 10.0000
UNSPSC #: 25172502
TAA Compliant: Yes
Weight: 0.1 lb
