Home Hardware Automotive Hardware Wheel Wheel Studs Dual End Threaded Stud 3/8 SAE x 3/8 USS 1-1/2"
Automotive Hardware

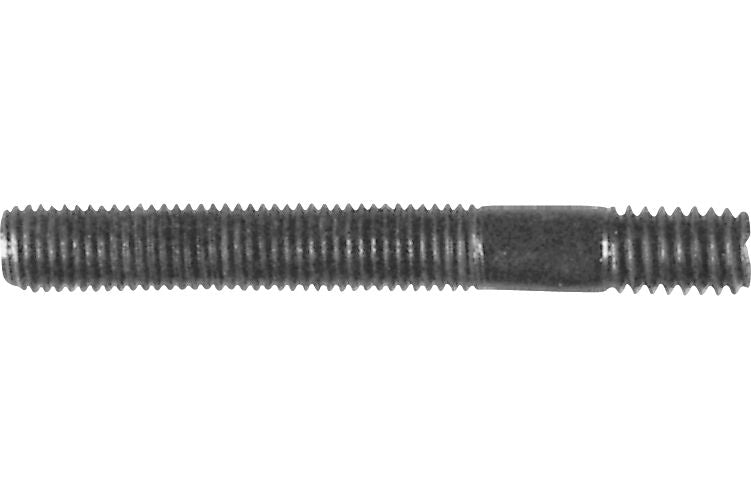

Dual End Threaded Stud 3/8 SAE x 3/8 USS 1-1/2
Dual End Threaded Stud 3/8 SAE x 3/8 USS 1-1/2

Dual End Threaded Stud, Medium Carbon Steel, Oil Finish, 3/8 SAE x 3/8 USS, Class 2A Thread, 1-1/2" Overall Length
(Pack of 10)

Item#: 10517

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

Catalog page#: 21-4

Frequently Bought Together

Bumper Cover and Fender Shield Push-Type Retainer for Ford, Nylon, Black, Fits 8mm Hole, 20mm Head, 26mm Stem Length

Bumper Cover and Fender Shield Push-Type Retainer

Item#: KT13459
Shroud Insulating Button Nylon 11/16

Shroud Insulating Button Nylon 11/16"

Item#: P62445M01
Splash Shield Retainer Nylon 1

Splash Shield Retainer Nylon 1"

Item#: P58193
MCN Series Lead Clip-On Wheel Weight 1-1/2 oz, MCN Series Lead Clip-On Wheel Weight with Hardened Spring Steel Clips

MCN Series Lead Clip-On Wheel Weight 1 oz

Item#: P44736
Cable Tie Nylon 155mm, Cable Tie for GM, Nylon, Gray, Fits 6.3mm Hole, 155mm Overall Length, 5mm Strap Width

Cable Tie Nylon 155mm

Item#: P86126
PZ Series Zinc Clip-On Wheel Weight 3/4oz, PZ Series Zinc Clip-On Wheel Weight with Hardened Spring Steel Clips, Uncoated

PZ Series Zinc Clip-On Wheel Weight 1/2oz

Item#: KT14849
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931
Stepdown Butt Connector 16 to 14/12 to 10 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 16 to 14/12 to 10 AWG, Blue

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189
Superbutt Connector 22 to 18 AWG Red, Superbutt Connector, Extended Barrel, Red, 22 to 18 AWG, 1.05

Superbutt Connector 22 to 18 AWG Red

Item#: 94727
TN Series Lead Clip-On Wheel Weight 3/4oz, TN Series Lead Clip-On Wheel Weight with Hardened Spring Steel Clips

TN Series Lead Clip-On Wheel Weight 1-3/4oz

Item#: P33402
0.50 oz. MC Style Plasteel Clip-On Weight, Plastic Coated Steel Wheel Weight

2.25 oz. MC Style Plasteel Clip-On Weight

Item#: 1580293

Dual End Threaded Stud 5/16 SAE x 5/16 USS 1-1/4"

Item#: 10507
Dayton Wheel Rim Stud 3/4-10 x 2-13/16

Dayton Wheel Rim Stud 3/4-10 x 2-13/16"

Item#: 30141
Universal Five-Hole/Six-Hole Replacement Gasket, Universal Five-Hole or Six-Hole Replacement Gasket

Universal Five-Hole/Six-Hole Replacement Gasket

Item#: 62412

Dual End Threaded Stud 5/16 SAE x 5/16 USS 2-1/2"

Item#: 10511

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10517
Diameter 3/8 SAE x 3/8 USS
Overall Length 1-1/2 "
SAE Nut End 3/4 "
USS Hub End 1/2 "
Approximate Length 1/2 "
Dorman Number 675-098
UNSPSC #: 25171900
TAA Compliant: No
Weight: 0.4 lb
