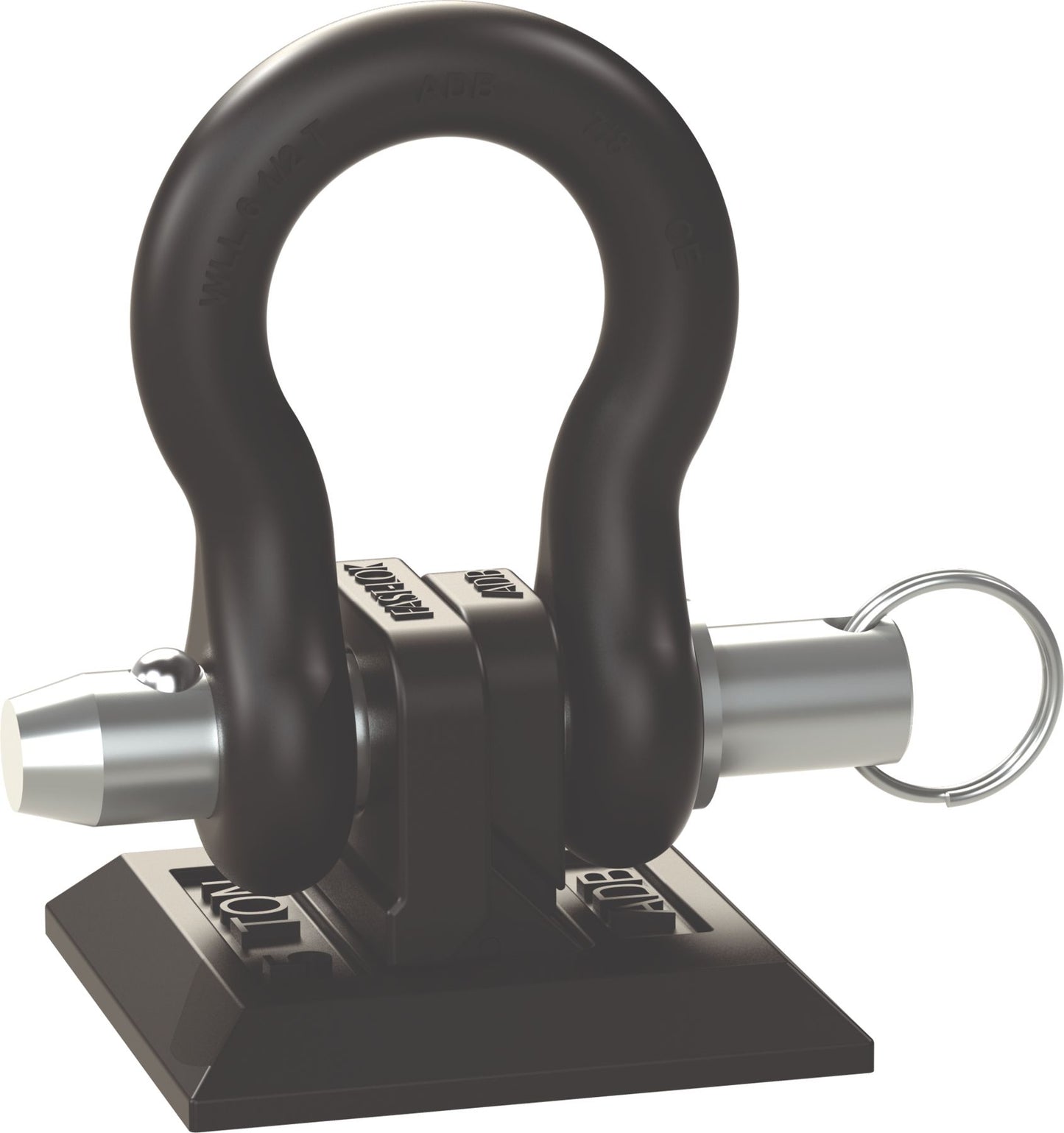

Fast-Lok® Plate Lfting System
(Pack of
1.0)
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.
• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eye Bolt with Nut 5/8" x 6" Long
Couldn't load pickup availability
Shoulder Eyebolt, Machinery, Self-Colored, M7 x 1.0 x 28.5
Couldn't load pickup availability
Shoulder Eye Bolt with Nut, Stainless Steel, 1/2"-13, 2,150 lb WLL
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 11,000 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Safety Engineered, 10,000 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Flip-Flop, 2,000 lb Load Limit
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/8", 2,000 lbs Breaking Strengt
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Product Description
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Technical Specifications
| Item#: | 1423422 |
|---|---|
| Type | Fast-Lok |
| Working Load Limit | 10,000 lb |
| Swivel | 0 ° |
| Pivot | 180 ° |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
