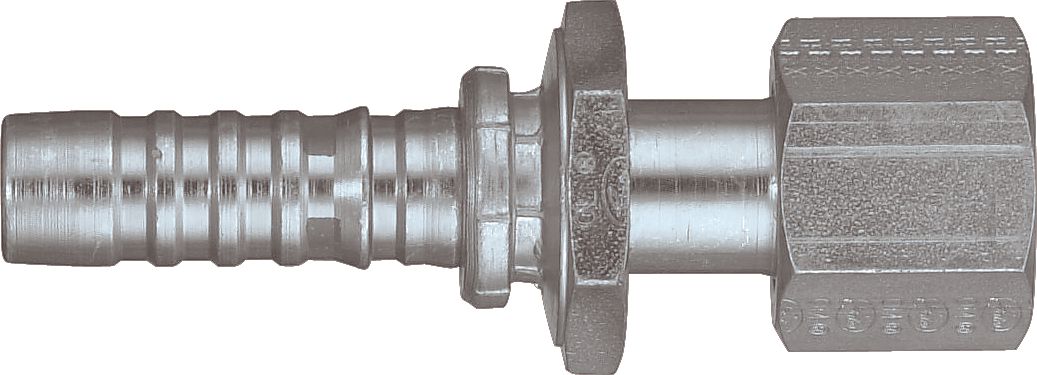

Global Spiral Crimp-On Coupling, Carbon Steel, Female Swivel Flat Face O-Ring Seal, Straight, 3/4" (-12) x 1-3/16-12 (-12)
(Pack of
1)
SKU:23121 Item#: 23121
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Couldn't load pickup availability
Catalog page#: 8-51
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 13/16-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 1" x 1-5/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/2" x 1/2-14
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23121 |
|---|---|
| Manufacturer Model #: | 12GS-12FFORX |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-3/16-12 (-12) |
| Gates Number | 12GS-12FFORX |
| O.D. Tube Size | 3/4 |
| Size | (-12)X(-12) |
| Hex Size | 1-3/8 " |
| Description | Female Swivel FFOR |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.72 lb |
