H285 Clearforce-R Food Transfer Hose, PVC Inner Tube and Cover, 2-Spiral Reinforcement, Clear, 250PSI, 1/4" ID
(Pack of
50)
SKU:41374 04 Item#: 41374 04
• Advantages:
– Easy to handle
– Easily routed
– Moderate oil resistance
– Age, abrasion-, and ozone-resistant
– Won’t mark white surfaces
– Flow or blockage is readily visible
– Economical
– Acceptable in food markets
– Factory tested to exceed minimum electrical resistivity of one megaohm per inch at 1,000V DC
• Agency Ratings: FDA, NSF-51
• Fittings Certified:
– E-Series
– 265 P-Series
– Inserted Hose Ends: Quick Acting (Claw), Hose Barbs, Short Shank Inserts, Long Shank Inserts
• Agency Approvals: FDA, NSF-51
• Construction:
– Inner Tube: Clear PVC
– Reinforcement: Fiber, 2-spiral
– Cover: Clear PVC
• Color: Clear
• Temperature Range: +15°F to +150°F (–9°C to +65°C)
• Application Notes:
– Spraying and conveying fertilizer and pesticides
– Food and beverage dispensing
– Powdered food manufacturing
– Bottling plants
– Dishwasher manufacturers
– Water and bilge lines, washdown hose, etc.
– In-plant air and water service
• Markets:
– Agriculture
– Food processing
– Marine
– Industrial
Couldn't load pickup availability
Catalog page#: 8-146
Frequently Bought Together
Lightweight Garden Hose Assembly 3/4"
Couldn't load pickup availability

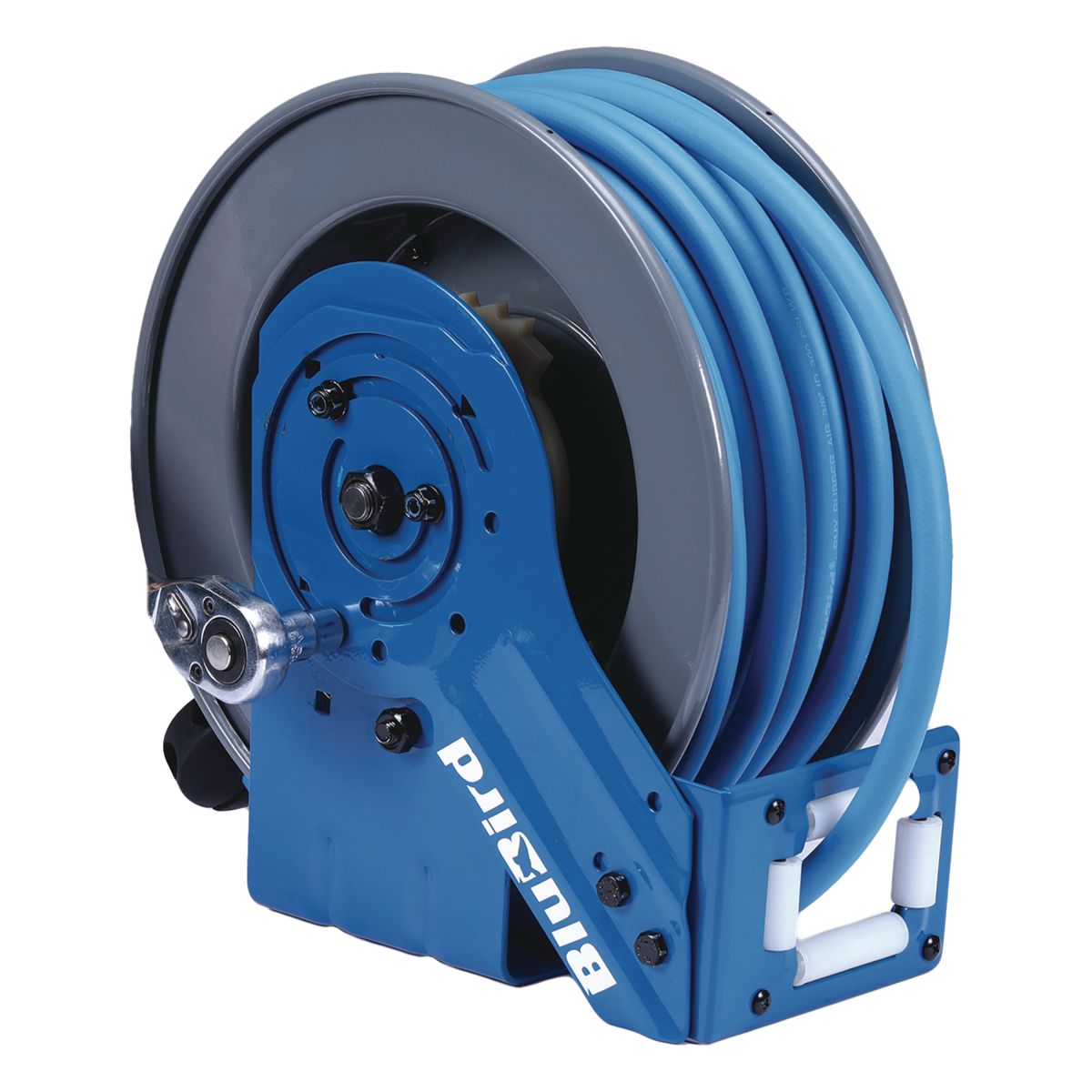

Air/Water Hose Reel 3/8" x 50'
Couldn't load pickup availability
Polyurethane Self-Coiling Air Hose Assembly 1/4" NPT x 0.160" ID x 5' Length
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
H961008GY-350R
Couldn't load pickup availability
Food Master® XTreme™ Hose 2-1/2" ID x 50' Length, White
Couldn't load pickup availability
Food Master® Dry Goods Hose 4" ID x 100' Length, Gray
Couldn't load pickup availability
Product Description
• Advantages:– Easy to handle
– Easily routed
– Moderate oil resistance
– Age, abrasion-, and ozone-resistant
– Won’t mark white surfaces
– Flow or blockage is readily visible
– Economical
– Acceptable in food markets
– Factory tested to exceed minimum electrical resistivity of one megaohm per inch at 1,000V DC
• Agency Ratings: FDA, NSF-51
• Fittings Certified:
– E-Series
– 265 P-Series
– Inserted Hose Ends: Quick Acting (Claw), Hose Barbs, Short Shank Inserts, Long Shank Inserts
• Agency Approvals: FDA, NSF-51
• Construction:
– Inner Tube: Clear PVC
– Reinforcement: Fiber, 2-spiral
– Cover: Clear PVC
• Color: Clear
• Temperature Range: +15°F to +150°F (–9°C to +65°C)
• Application Notes:
– Spraying and conveying fertilizer and pesticides
– Food and beverage dispensing
– Powdered food manufacturing
– Bottling plants
– Dishwasher manufacturers
– Water and bilge lines, washdown hose, etc.
– In-plant air and water service
• Markets:
– Agriculture
– Food processing
– Marine
– Industrial
Technical Specifications
| Item#: | 41374 04 |
|---|---|
| Manufacturer Model #: | H28504 |
| Type | Food Transfer |
| Manufacturer Series Number | H285 |
| Manufacturer Series Name | Clearforce-R |
| I.D. | 1/4 " |
| Dash Size | -4 |
| Working Pressure | 250 PSI |
| Inner Tube Material | PVC |
| Hose Reinforcement | 2-Spiral |
| Hose Cover Material | PVC |
| Fitting Series | Crimp: E Series, Insert: Quick Acting Claw, Hose Barb, Short Shank, Long Shank |
| Temperature | +15F to +150F |
| Color | Clear |
| Size | -4X50 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
| Weight: | 4.0 lb |
