Push-on/Lock-on Hose, Synthetic Rubber Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 3/8" ID
(Pack of
50)
SKU:12101 06 Item#: 12101 06
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber

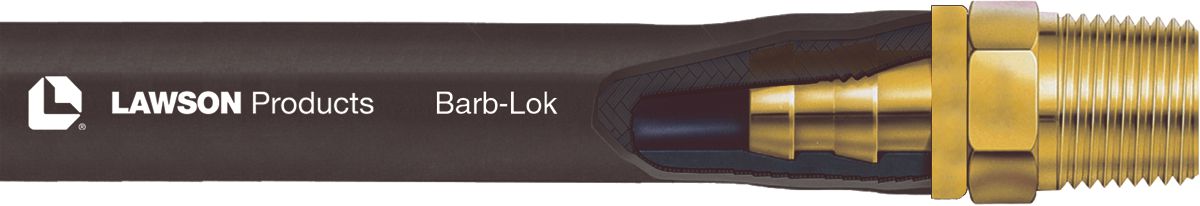

Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-138
Frequently Bought Together
H20106BU
Couldn't load pickup availability
H20108BK-300R
Couldn't load pickup availability
H20108YW
Couldn't load pickup availability
Rubber Air Hose Reel Dual Arm Assembly 3/8" x 50'
Couldn't load pickup availability
Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
Couldn't load pickup availability
Rubber Air Hose Whip / Snubber 3/8" x 5'
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Technical Specifications
| Item#: | 12101 06 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 3/8 " |
| Dash Size | -6 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 3 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Neoprene |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Size | 3/8 (-6) |
| Weight (Lbs. / Ft.) | 0.13 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
| Weight: | 7.4 lb |
