Home Hydraulics Hose and Tubing Barb Lok H100 General Purpose Fiber Cover Hose 3/8" Black
Barb Lok
H100 General Purpose Fiber Cover Hose 3/8
H100 General Purpose Fiber Cover Hose 3/8
Barb-Lok

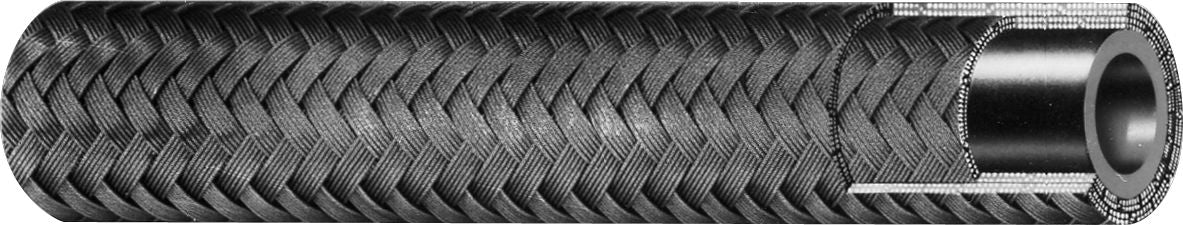

H100 General Purpose Hose, Nitrile Inner Tube, Fiber Cover, 1 Fiber Braid Reinforcement, Black, 350PSI, 3/8" x 250'
(Pack of 250)

Item#: 1185553

Danfoss®

H100 Hose for general purpose low pressure air, diesel fuel, oil and water lines.
Temperature Range: -40°F to +212°F (-40°C to 100°C)
Reinforcement: 1 fiber braid
Cover: Fiber braid (black)
Inner tube: Nitrile

Read More

Frequently Bought Together

Push-on/Lock-on Fiber Braided Cover Hose 5/8

Push-on/Lock-on Fiber Braided Cover Hose 3/4"

Item#: 12100 12
No product placeholder

H20106BU-100

Item#: 1180350
H201 Easy Couple Synthetic Cover Hose 1/4

H201 Easy Couple Synthetic Cover Hose 1/4" Black

Item#: 1185464
Air/Multipurpose Rubber Hose 3/8

Air/Multipurpose Rubber Hose 3/8" Black

Item#: 64730
Super HubT Air/Water Hose Reel 1/2

EZ-Coil Air/Water Hose Reel 3/8" x 50'

Item#: 20775
Red Air/Multipurpose Hose EPDM 4 Spiral Plies Polyester Yarn EPDM 250 psi 3/8

Air/Multipurpose Rubber Hose 3/8" x 50' Red

Item#: KT11972
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Item#: 88719
Constant Torque Hose Clamp SS 4-1/4 to 5-1/8

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

H100 Hose for general purpose low pressure air, diesel fuel, oil and water lines.
Temperature Range: -40°F to +212°F (-40°C to 100°C)
Reinforcement: 1 fiber braid
Cover: Fiber braid (black)
Inner tube: Nitrile

Technical Specifications

Item#: 1185553
Manufacturer Model #: H10006-250R
I.D. 3/8 "
Working Pressure 350 PSI
Burst Pressure 1400 PSI
Minimum Bend Radius 3 "
Weight (Lbs. / Ft.) 0.11
UNSPSC #: 40142009
TAA Compliant: Yes
