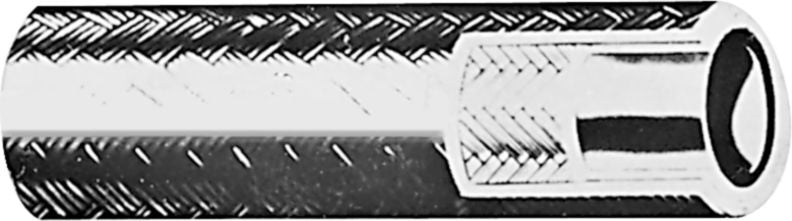

Push-on/Lock-on Low Pressure Hose, Fiber Braid Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 5/8" ID
(Pack of
50)
SKU:12100 10 Item#: 12100 10
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-138
Frequently Bought Together
H20108YW
Couldn't load pickup availability
H20106RD
Couldn't load pickup availability
Low Pressure Push-/Lock-on Hose Rubber 3/4" Black
Couldn't load pickup availability
Rubber Air Hose Whip / Snubber 3/8" x 5'
Couldn't load pickup availability
Polyurethane Self-Coiling Air Hose Assembly 3/8" NPT x 3/8" ID x 50' Length
Couldn't load pickup availability
FLEXAIR 1/2" I.D. x 50' air hose assembly w/ High Flow safety coupler
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hose Clamp 301 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Technical Specifications
| Item#: | 12100 10 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 5/8 " |
| Dash Size | -10 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 6 " |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Weight (Lbs. / Ft.) | 0.19 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 9.5 lb |
