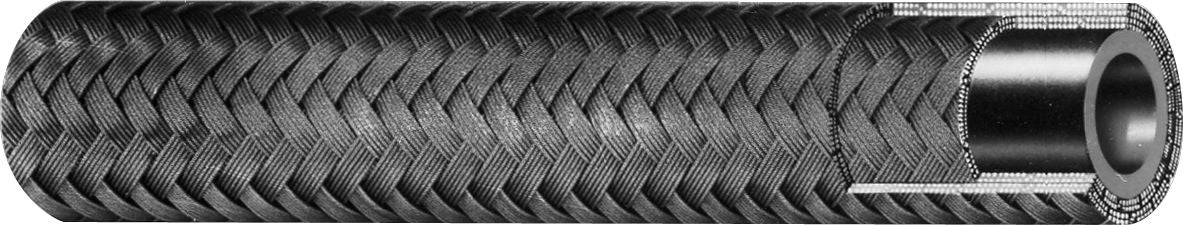

Push-on/Lock-on Hose, Synthetic Rubber Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 3/4" ID
(Pack of
50)
SKU:12101 12 Item#: 12101 12
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-138
Frequently Bought Together
H20108BK-300R
Couldn't load pickup availability
H20108YW
Couldn't load pickup availability
H20106RD
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
Rubber Air Hose Reel Dual Arm Assembly 3/8" x 50'
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Technical Specifications
| Item#: | 12101 12 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 3/4 " |
| Dash Size | -12 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 7 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Neoprene |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Size | 3/4 (-12) |
| Weight (Lbs. / Ft.) | 0.26 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 14.0 lb |
