Home Electrical High Temperature Wire Connector 22 to 16 AWG
Electrical

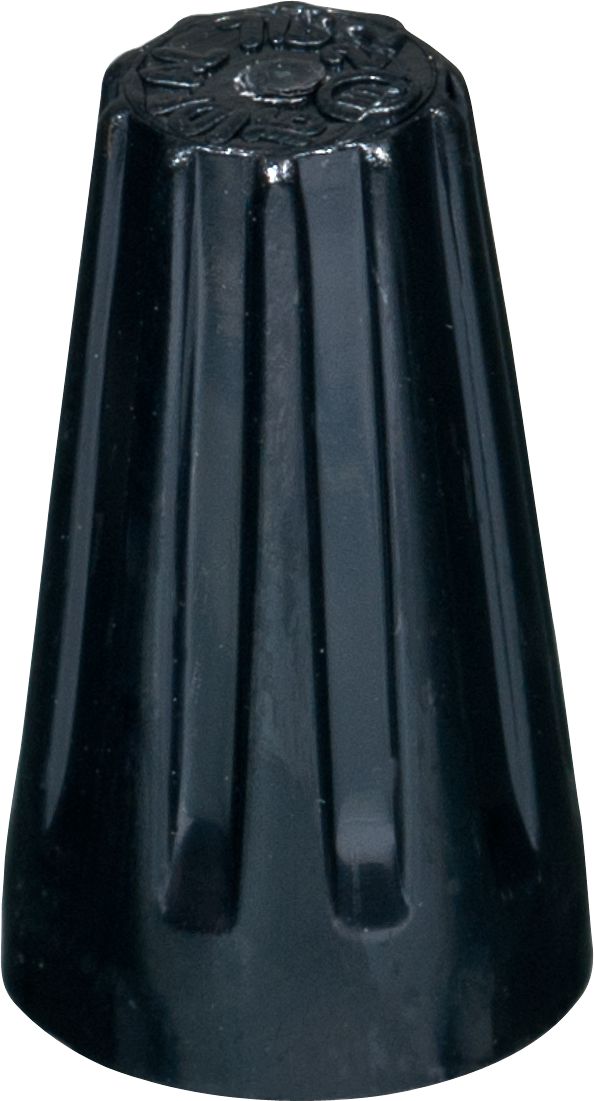

Wire Connector, Plastic, High Temperature, 22 to 16 AWG, 300 Volts, Black
(Pack of 50)

Item#: 98087

Lawson Products

• Extra-rugged, flame retardant, fluted shells made of high-impact plastic
• Wide passage eases insertion
• Resists practically all chemical action
• Unaffected by gasolines, oils, diluted acids and alkaline solutions
• Tight no-slip spring
• Buttress threads guard against flash-over

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 17-67

Frequently Bought Together


Connector Housing 20A 2-Wire Tower

Item#: 96898

MINI Fuse 30A Green

Item#: 95706

Cable Seal Green 20-18 AWG 20A 12V

Item#: 96904

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Wire Connector 22 to 14 AWG Orange

Item#: 25001

Spade Terminal 16 to 14 AWG Blue

Item#: 25267

Ring Tongue Terminal 16 to 14 AWG Blue

Item#: 86042

Fork Pigtail Connector 18 to 12 AWG Green

Item#: 62814

Fork Pigtail Connector 12 AWG White

Item#: 62812

Watertight Wire Nuts 3 X 22 or 4 X 12 or 3 X 10 Gauge Light Blue

Item#: DY20720060

Terminal Vinyl Insulated Pin 22-18 AWG Red

Item#: DY20749500

Terminal Vinyl Insulated Pin 12-10 AWG Yellow

Item#: DY20748800

Wire Pin Connector 22 to 18 AWG

Item#: 94306

Product Description

• Extra-rugged, flame retardant, fluted shells made of high-impact plastic
• Wide passage eases insertion
• Resists practically all chemical action
• Unaffected by gasolines, oils, diluted acids and alkaline solutions
• Tight no-slip spring
• Buttress threads guard against flash-over

Technical Specifications

Item#: 98087
Type High Temp
Wire Gauge 22-16 AWG
Voltage Rating 300V Maximum Pressure Type Splicing Connector
Color Black
Spring Type Tight no-slip spring
Industry Number 71B
Approvals UL, CSA
Style High Temp Black 302 F Max Wire Connectors
UNSPSC #: 39121409
TAA Compliant: Yes
Weight: 0.08 lb
