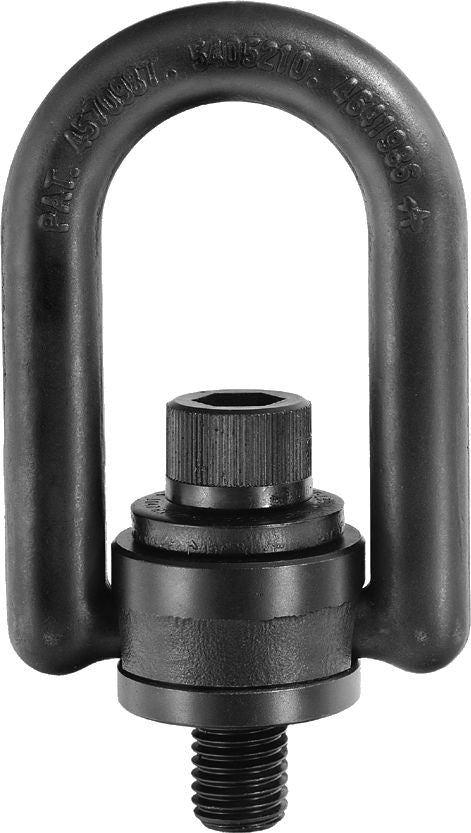

Hoist Ring, Heavy Duty®, Metric, 1,050 kg Load Limit, M12x1.75 Thread Size, 25mm Thread Length
(Pack of
1)
SKU:1423207 Item#: 1423207
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 15-16
Frequently Bought Together
Screw Pin Anchor Shackle, 5/8", 6,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 9,500 lb WLL
Couldn't load pickup availability
Eye Bolts, Machinery, 1/2 x 1-1/2"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 800 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 1,500 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 450 kg Load Limit
Couldn't load pickup availability
Quick Link 3/16" Chain Size 616 Lb Safe Load
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Aluminum
Couldn't load pickup availability
Clevis Grab Hook, Grade 80, 3/8", 7,100 lb WLL
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423207 |
|---|---|
| Manufacturer Model #: | 34515 |
| Type | Heavy Duty |
| Thread Size | M12x1.75 |
| Thread Length | 25 mm |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 1,050 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 37.0 N·m |

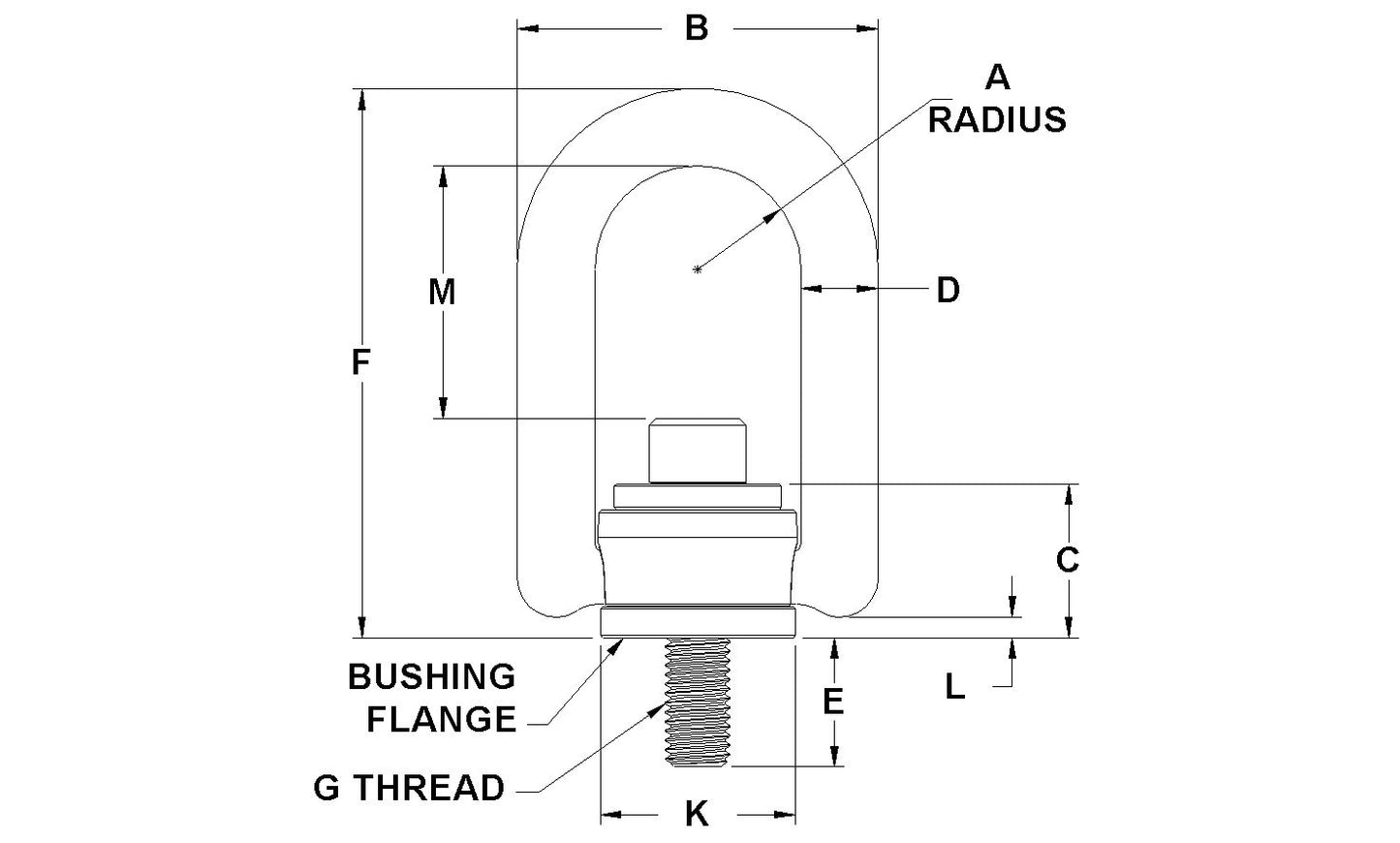

| Dimension A | 25.4 mm |
| Dimension B | 88.9 mm |
| Dimension C | 38.1 mm |
| Dimension D | 19.1 mm |
| Dimension E | 25 mm |
| Dimension F | 134.9 mm |
| Dimension G | M12 x 1.75 mm |
| Dimension K | 48.0 mm |
| Dimension L | 4.4 mm |
| Dimension M | 65.0 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 2.48 lb |
