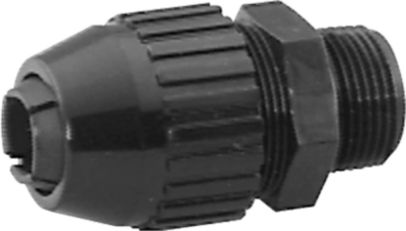

Liquidtight Strain Relief Connector, 1/2" Hub Size, Steel, Straight, 0.55" Throat Diameter Minimum, Nylon, Neoprene Bushing
(Pack of
2)
SKU:53314 Item#: 53314
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten
• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Couldn't load pickup availability
Catalog page#: 17-84
Frequently Bought Together
Electrical Cord Reel 12 AWG 100'
Couldn't load pickup availability
Conduit Strap 1/2" Malleable Iron
Couldn't load pickup availability
Electrical Cord Reel 12 AWG 50'
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/4" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Snap-In Strain Relief Connector
Couldn't load pickup availability
Product Description
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Technical Specifications
| Item#: | 53314 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 1/2" STR |
| Cable Size Minimum | .400 " |
| Cable Size Maximum | .560 " |
| Hub Size | 1/2 " |
| Throat Diameter Minimum | 0.55 " |
| Approvals | UL, CSA |
| Maximum Temperature Rating | 221 F |
| Description | Straight |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
