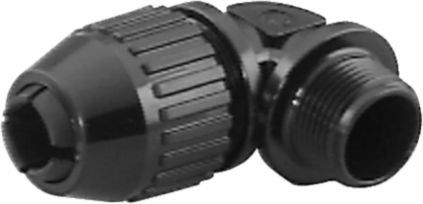

Liquidtight Strain Relief Connector 3/4" Steel
(Pack of
2.0)
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten
• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-84
Frequently Bought Together
Trailer Cable 20' Coiled ABS Green
Couldn't load pickup availability
Coaxial Cable 59/U 73 Ohms 100'
Couldn't load pickup availability
Trailer Cable Harness 15' Straight Black
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
DT Series Socket Wedgelock 13A 2 Contacts
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/4" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 2/4" Steel
Couldn't load pickup availability
Product Description
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Technical Specifications
| Item#: | 53320 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 3/4"-90 |
| Cable Size Minimum | .660 " |
| Cable Size Maximum | .780 " |
| Hub Size | 3/4 " |
| Throat Diameter Minimum | 25/32 " |
| Approvals | UL, CSA |
| Maximum Temperature Rating | 221 F |
| Description | 90° |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.235 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
