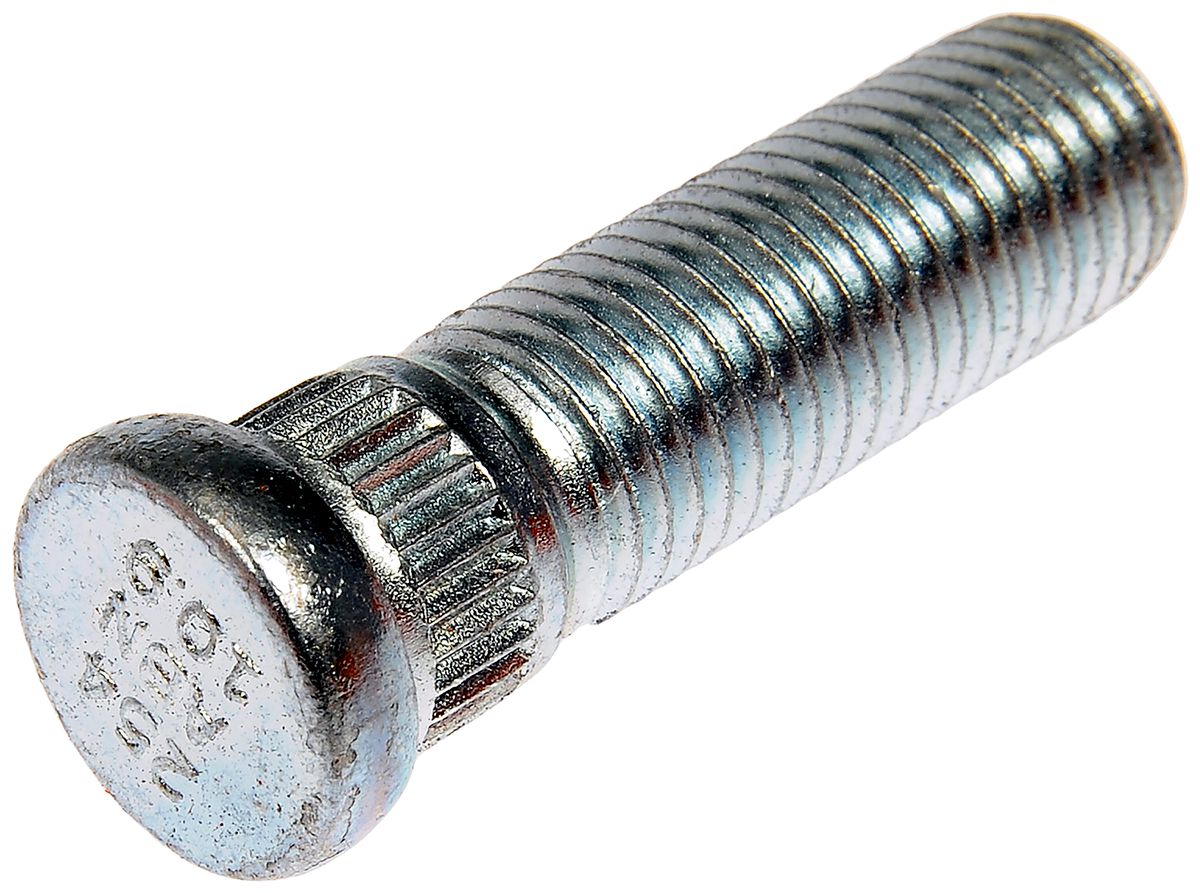

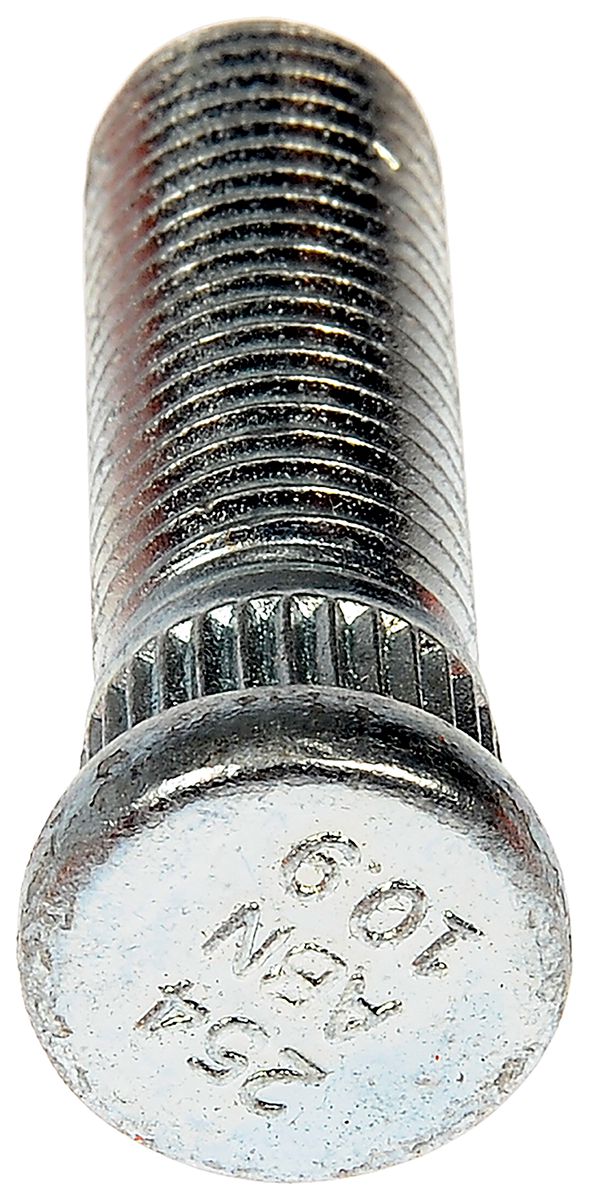

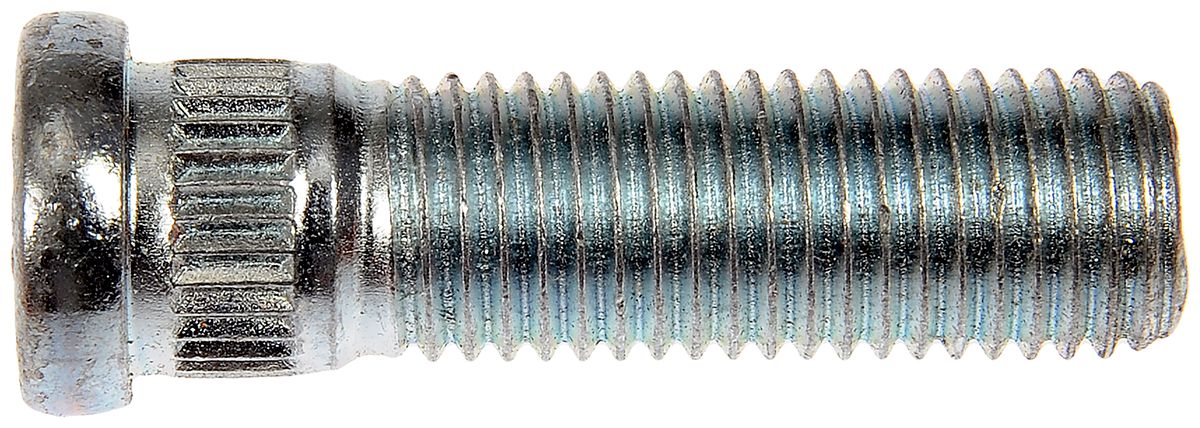

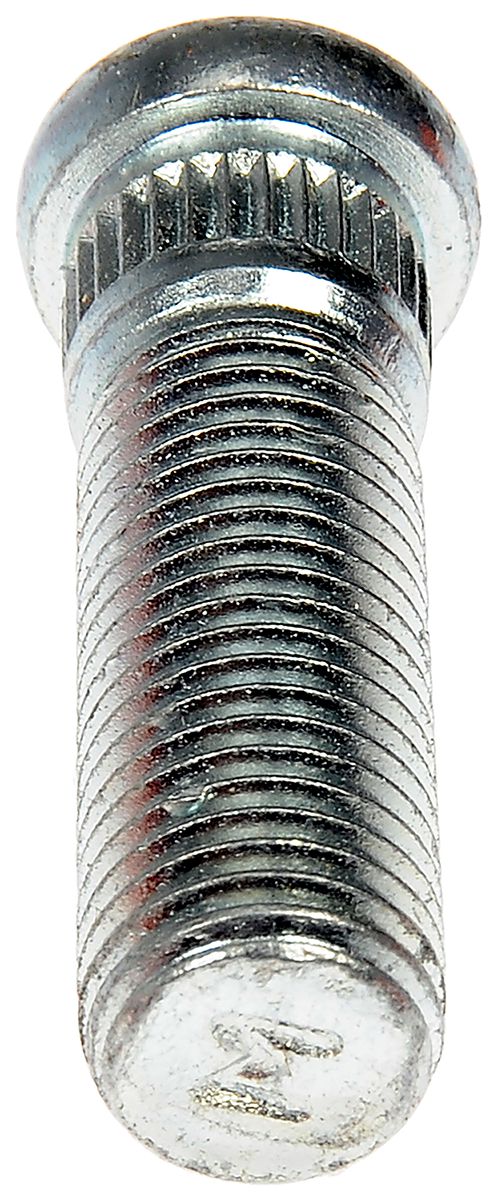

M12-1.50 Serrated Wheel Bolt, M12.73 Knurl; 41.5mm Length, 8mm Shoulder Length, Steel, Silver
(Pack of 10)

SKU:1636118 Item#: 1636118

Lawson Products

• Heat-treated high tensile strength steel
• Supplied in either black oil finish or zinc finish

Check Availability

Quantity

Frequently Bought Together

Splash Shield Retainer Nylon 1"

PZ Series Zinc Clip-On Wheel Weight 3/4oz

PZ Series Zinc Clip-On Wheel Weight 1/2oz

Cable Tie Nylon 155mm

Bumper Cover and Fender Shield Push-Type Retainer

MCN Series Lead Clip-On Wheel Weight 1/4 oz

USS Flat Washer Thru-Hardened Steel 5/16"

SAE Flat Washer Thru-Hardened Steel 5/8"

Hex Nut Grade 8 Alloy Steel 1/4-20

LT1Z Series Zinc Clip-On Wheel Weight 1-1/2oz

P Series Lead Clip-On Wheel Weight 2-3/4oz

Dual End Threaded Stud 5/16 SAE x 5/16 USS 1-1/4"

Wheel Bolt 1/2-20 R 0.618"

Metric Wheel Bolt M12 x 1.5 R 44.5mm

Metric Wheel Bolt M12 x 1.5 R 51mm

Product Description

• Heat-treated high tensile strength steel
• Supplied in either black oil finish or zinc finish

Technical Specifications

Item#:	1636118
Thread Size	M12-1.5 R
Length	41.5 mm
Knurl Diameter	12.73 mm
Shoulder Length	8 mm
Material	Steel
Diameter	12 mm
Head Diameter	16.13 mm
Thread Pitch	1.50 mm
Length Under Head	1.634 "
Thread Length	33.66 mm
Type	Serrated
Dorman Number	610-254
UNSPSC #:	25171900
TAA Compliant:	Yes
Weight:	0.86 lb
