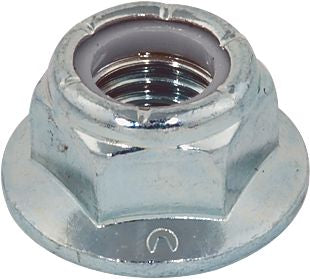

Nylon Insert Flange Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/4" Across Flats, 0.825" Thickness, 3/4-10
(Pack of
5)
SKU:18250 Item#: 18250
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness
• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade G for use with Grade 8
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 3-28
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade G for use with Grade 8
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
Technical Specifications
| Item#: | 18250 |
|---|---|
| Diameter | 3/4 " |
| Thread Pitch | 10 |
| Grade | 8 |
| Finish | Bright Zinc |
| Type | Flange Nuts |
| Material | Alloy Steel |
| Thickness | 0.825 " |
| Across Flats | 1-1/4 " |
| Thread | Coarse |
| Specifications | IFI 100/107 |
| Flange Diameter | 1.585 " |
| UNSPSC #: | 31161712 |
| TAA Compliant: | No |
| Weight: | 0.8 lb |
