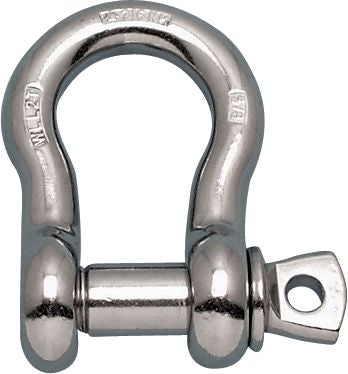

Oversize Screw Pin Anchor Shackle, Stainless Steel, 5/8", 4,000 lb WLL
(Pack of
2.0)
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-23
Frequently Bought Together
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Quick Link 3/16" Chain Size 616 Lb Safe Load
Couldn't load pickup availability
Spring Link, 5/16", 350 lb WLL, Zinc
Couldn't load pickup availability
Quick Link 3/8" Chain Size 2220 Lb Safe Load
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 9,500 lb WLL
Couldn't load pickup availability
Bolt, Nut and Cotter Long Reach Shackle, 1", 19,000 lb WLL
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1427312 |
|---|---|
| Type | Anchor Shackle |
| Style | Screw Pin |
| Body Material | 316-NM Stainless Steel |
| Size | 5/8 " |
| Working Load Limit | 4,000 lb |
| Pin Diameter | 3/4 " |
| Pin Material | 316-NM Stainless Steel |
| Width Between Eyes | 1-1/16 " |
| Bow Width | 1-1/2 " |
| Depth | 2-3/8 " |
| UNSPSC #: | 31132600 |
| TAA Compliant: | No |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
