Home Fasteners Rivets Open-End Rivets Pull Rivet Standard Flange Dome Head 5/32"
Fasteners

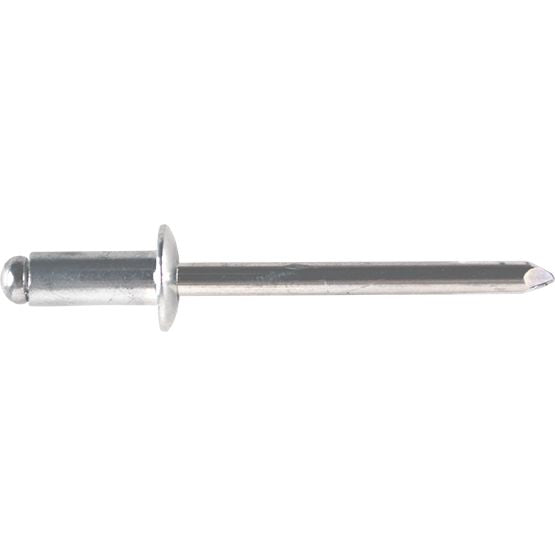

Pull Rivet, Grip-Tite, Standard Flange/Dome Head, Aluminum, 5/32" Diameter, 0.251 to 0.375" Grip Range, 0.55" Body Length
(Pack of 100)

Item#: P43296M01

Lawson Products

Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1966

Open End Rivet Dome Head Aluminum 3/16"

Item#: 1957

Open End Rivet Dome Head Steel 1/4"

Item#: 85101

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1984

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1966

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1983

Butt Connector 16 to 14 AWG Clear

Item#: 1368141

Butt Connector 22 to 18 AWG Clear

Item#: 1368140

High Solids Paints Gloss Black

Item#: 1509224

Product Description

Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

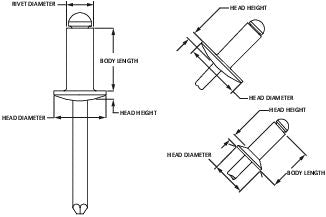

Technical Specifications

Item#: P43296M01
Type Open End
Head Style Dome Head
Material Body / Mandrel Aluminum/Aluminum
Diameter 5/32 "
Grip Range 0.251 – 0.375 "
Industry Number 56
Hole Size 0.160 – 0.164 "
Drill Size #20
Head Diameter 0.312 "
Head Height 0.050 "
Body Length 0.550 "
Shear Strength 230 lb
Tensile Strength 340 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.27 lb
