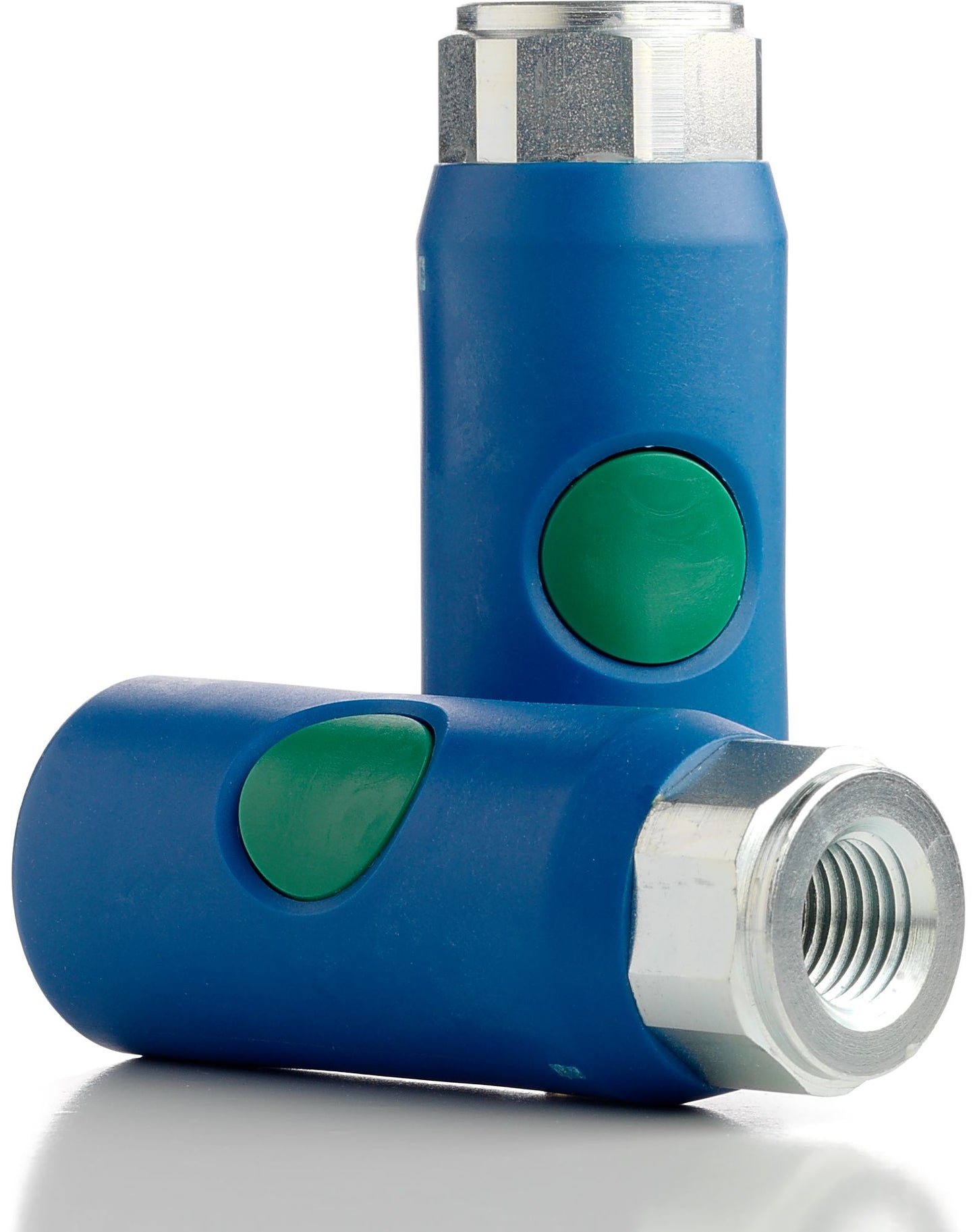

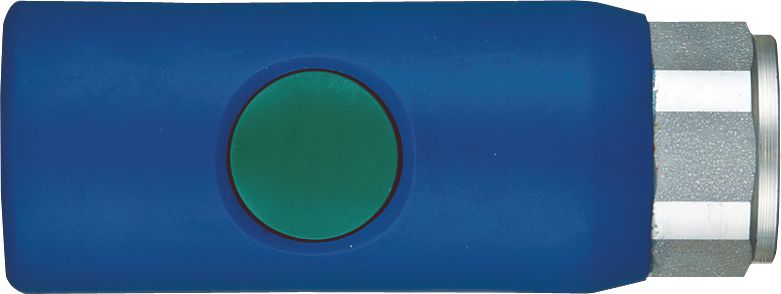

Push-Button Coupler, Steel with Plastic Cover, High Flow, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:KT15123 Item#: KT15123
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 3/8-18
Couldn't load pickup availability
Coupler, Schrader, 1/4'' Body, 1/4-18 Female NPT, Aluminum
Couldn't load pickup availability
Universal Safety Coupler Aluminum 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 3/8-18 (-6)
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15123 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 1/4-18 |
| Material | Steel with Plastic Cover |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
