Home Hydraulics Fittings Industrial Tubing Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32" x M5
Advanced Technology Products (ATP)
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x M5-0.8, Tube x Tube x Metric Male Thread
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x M5-0.8, Tube x Tube x Metric Male Thread

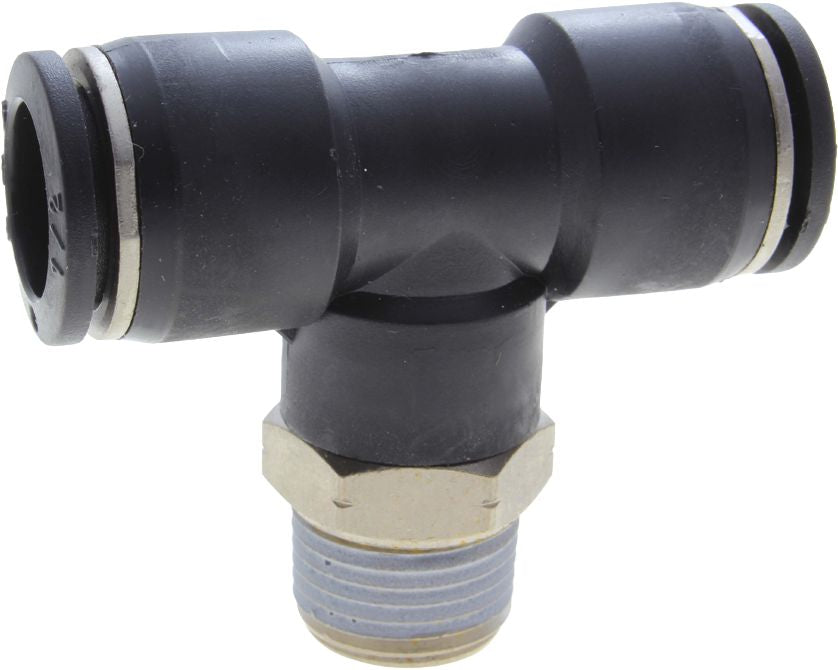

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32" x M5-0.8, Tube x Tube x Metric Thread, 150 PSI Working Pressure
(Pack of 10)

Item#: 1198202

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Tubing Cutter 1/8 to 1/2

Tubing Cutter 1/8 to 1/2"

Item#: 87666
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 86780
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86760
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 1/4" ID x 100' Clear

Item#: 90337
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 1/2 ID x 100' Clear

Item#: 90340
Nylon Metric Tubing 4mm OD x 25m Natural, Industrial Metric Tubing, Nylon, 4mm OD x 2.7mm ID, 25m Length

Nylon Metric Tubing 4mm OD x 25m Natural

Item#: 98251
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4"

Item#: 86769
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"

Item#: 86777
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"

Item#: 86768
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291
Quick Disconnect Plug Steel 1/4

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: 11915
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364
Pipe Bushing Brass 1/2-14 x 1/8-27, Pipe Bushing, Brass, 1/2-14 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86782
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"

Item#: 87640
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86754
USS Flat Washer Thru-Hardened Steel 7/8

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447
Butt Connector 16 to 14 AWG Blue, Butt Connector, 2-Piece Heat Seal, Polyolefin Insulated, 16 to 14 AWG, 1.45

Butt Connector 16 to 14 AWG Blue

Item#: 92823
Nylon Cable Tie 15.25

Nylon Cable Tie 4" Black

Item#: 94609

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)

Technical Specifications

Item#: 1198202
Configuration Male Branch Tee
Tube Size 5/32" (4mm)
Thread Size M5X0.8
Thread Style Metric
Material Nickel-Plated Brass/PBT Resin
Wrench Size 8 mm
Thread Length 3.5 mm
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
