Home Hydraulics Fittings Industrial Tubing Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/4"
Advanced Technology Products (ATP)
Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/4
Push-to-Connect Connector, Nickel-Plated Brass, 5/32
Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/4
Push-to-Connect Connector, Nickel-Plated Brass, 5/32

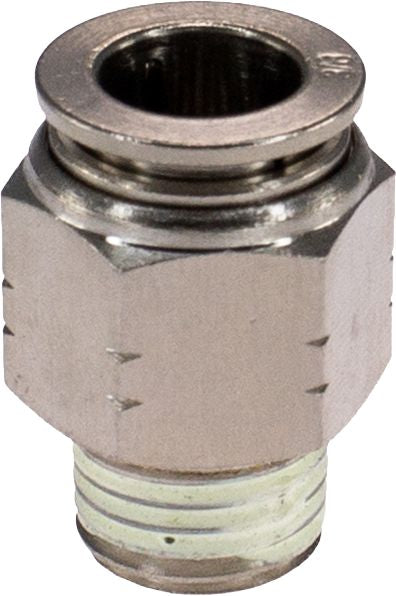

Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/4", Tube x Male NPT, 280 PSI Working Pressure
(Pack of 5)

Item#: 28276

Lawson Products

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-35

Frequently Bought Together

Nylon Metric Tubing 6mm OD x 100' Natural, Industrial Metric Tubing, Nylon, 6mm OD x 4mm ID, 100' Length

Nylon Metric Tubing 6mm OD x 100' Natural

Item#: 98253
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 1/4" ID x 100' Clear

Item#: 90337
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4"

Item#: 1197100
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86760
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 86780
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8"

Item#: 87628
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/2"

Item#: 54340
Push-to-Connect Straight Union, 316 Stainless Steel, 1/2 x 1/2

Push-to-Connect Straight Union, 316 Stainless Steel, 1/2 x 1/2"

Item#: 1198188
Push-to-Connect Connector, Nickel-Plated Brass, 5/32 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass, 5/32 x 1/8"

Item#: 28272
Pipe Nipple Steel Black Schedule 40 Welded 3/8-18 x 4

Pipe Nipple Steel Black Schedule 40 Welded 1/2-14 x 1-1/8 " Close

Item#: 8709
Pipe Hex Nipple Brass 1/2-14 x 1/4-18, Pipe Hex Nipple, Brass, 1/2-14 x 1/4-18, Male NPT x Male NPT, 1200PSI

Pipe Hex Nipple Brass 3/8-18 x 1/4-18

Item#: 5296
Pipe Nipple Steel Black Schedule 40 Welded 3/8-18 x 4

Pipe Nipple Steel Black Schedule 40 Welded 1/4-18 x 7/8 " Close

Item#: 8695
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 1-13/16 to 2-3/4"

Item#: 87142
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615
DOT Elbow Male Nylon 1/4 x 1/8-27, DOT Air Brake Push to Connect Elbow, Male, Nylon, 1/4 x 1/8-27, Tube x Pipe

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm

Item#: 98215
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55737
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"

Item#: 86749
Vision Pro Super Illuminator Work Light

Vision Pro Super

Item#: DY21061040
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102
SAE Flat Washer Thru-Hardened Steel 5/8

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Product Description

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 28276
Style Nickel-Plated Brass Push-To-Connect
Configuration Male Connector
Tube Size 1/4 "
Thread Size 1/4 "
Thread Style NPT
Material Nickel-Plated Brass
Wrench Size 14 mm
Internal Hex Size 4 mm
Thread Length 0.43 "
Working Pressure 280 PSI
Temperature Range -4 to +176 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.2 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
