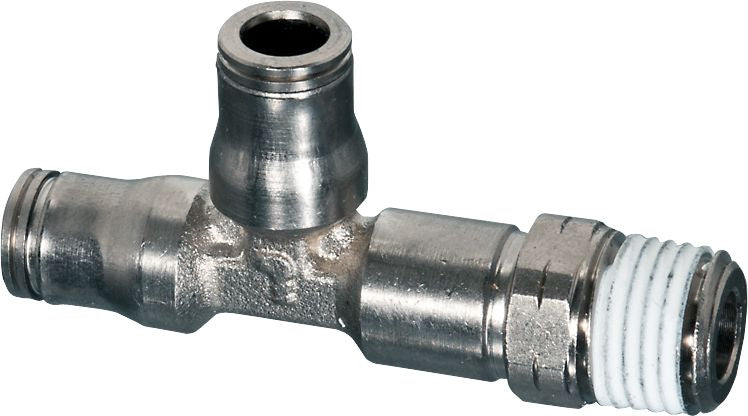

Push-to-Connect Run Tee, Nickel-Plated Brass, 1/4 x 1/4 x 1/4", Tube x Tube x Male NPT, 280 PSI Working Pressure
(Pack of
3)
SKU:28307 Item#: 28307
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-36
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x M5
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"
Couldn't load pickup availability
Hex Bushing Steel 3/8-18 x 1/4-18
Couldn't load pickup availability
Pipe Tee Brass 1/4-18 x 1/4-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 1/8-27 Male NPT
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"
Couldn't load pickup availability
Heavy-Duty Tube and Hose Cutter 1 to 1/8"
Couldn't load pickup availability
Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28307 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Male Run Tee |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Thread Length | 0.43 " |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.27 lb |
