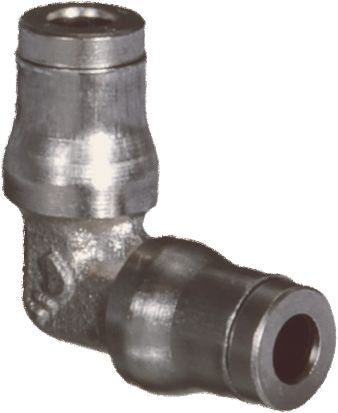

Push-to-Connect Union Elbow, Nickel-Plated Brass, 1/4 x 1/4", Tube, 280 PSI Working Pressure
(Pack of
5)
SKU:28330 Item#: 28330
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-36
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4" x 10-32
Couldn't load pickup availability
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"
Couldn't load pickup availability
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28330 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Union Elbow |
| Tube Size | 1/4 " |
| Material | Nickel-Plated Brass |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
