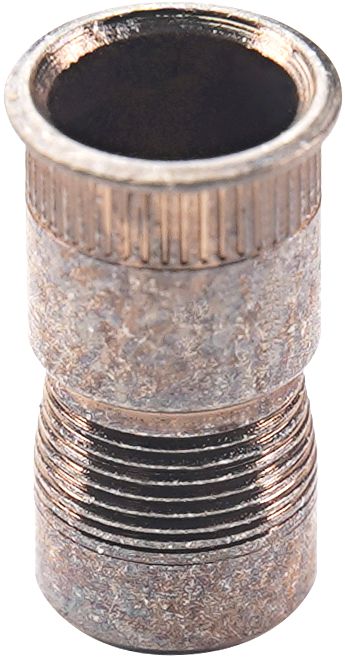

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, M3-0.5, 9.4mm Length, 4.75mm Hole
(Pack of
25)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-17
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Standard Threaded Insert #8-32
Couldn't load pickup availability
Standard Threaded Insert #4-40
Couldn't load pickup availability
1/4-20x1/2 Blind Cert
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
Couldn't load pickup availability
Diamond Grip II Threaded Insert 5/16-18
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85894 |
|---|---|
| Diameter | M3 |
| Thread Pitch | 0.5 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 4.75 mm |
| Pilot Drill Size | 3/16 " |
| Pilot Drill Number | 84729 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 5.36 mm |
| Body Diameter | 4.76 mm |
| Length | 9.40 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
