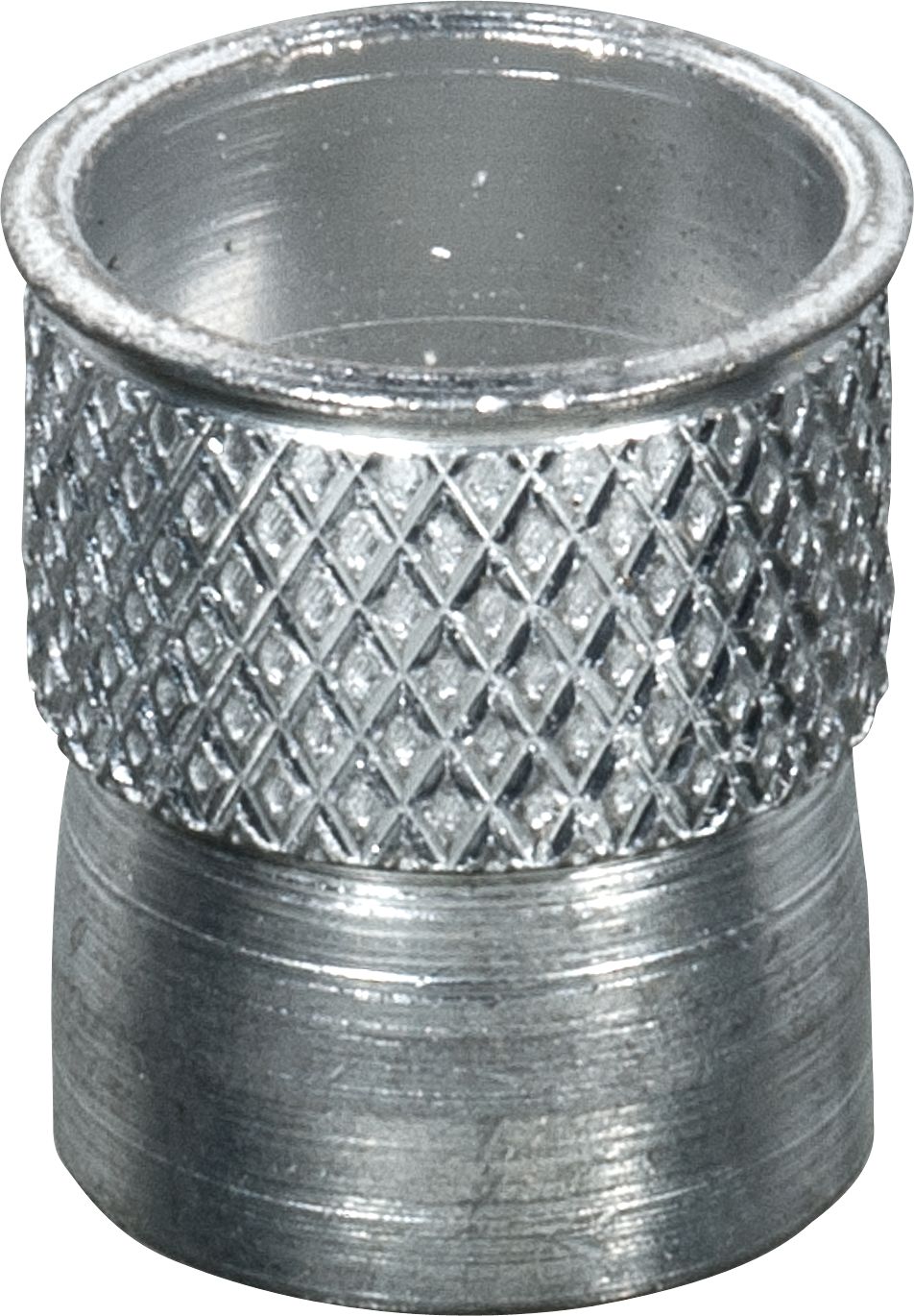

Threaded Insert for Soft Material, Steel, Cadmium Finish, Diamond Knurled, Small Flange, Coarse Thread, 3/8-16, 0.74" Length
(Pack of
25)
Enhance the strength and reliability of your assemblies with our carbon steel Threaded Inserts. These CAD-plated inserts are engineered with large knurls that bite firmly into soft materials like plastics, wood, and aluminum, creating a permanent, wear-resistant hold. The design allows for greater clamping pressure, providing higher strength and better seals in your projects. Easy to install, these threaded inserts offer a robust solution for creating durable threads in softer materials.
• CAD-plated
• Ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum
• Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-17
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Threaded Insert for Soft Material #6-32
Couldn't load pickup availability
Standard Threaded Insert M8-1.25
Couldn't load pickup availability
6-32x5/16 Blind Cert
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Product Description
Enhance the strength and reliability of your assemblies with our carbon steel Threaded Inserts. These CAD-plated inserts are engineered with large knurls that bite firmly into soft materials like plastics, wood, and aluminum, creating a permanent, wear-resistant hold. The design allows for greater clamping pressure, providing higher strength and better seals in your projects. Easy to install, these threaded inserts offer a robust solution for creating durable threads in softer materials.• CAD-plated
• Ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum
• Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95978 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.594 " |
| Pilot Drill Size | 19/32 " |
| Pilot Drill Number | 81034 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.615 " |
| Body Diameter | 0.590 " |
| Length | 0.740 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.51 lb |
