Home Fasteners StemLock® Rear-Flange Structural Rivet Steel 1/4"
Fasteners

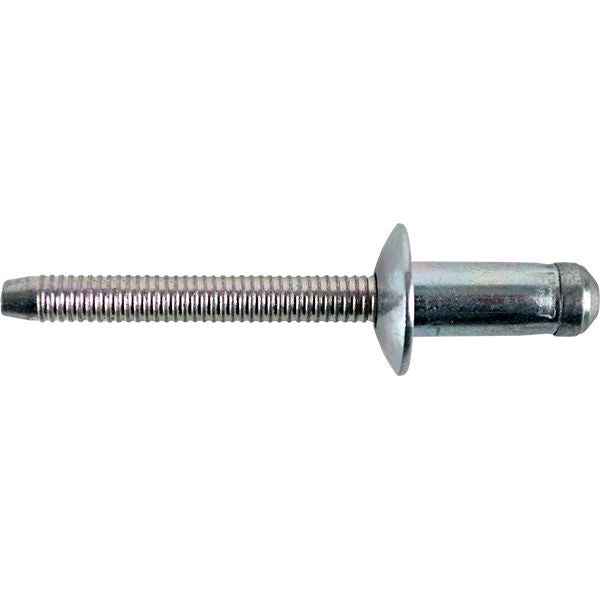

StemLock® Rear-Flange Structural Rivet, Dome Head, Steel, 1/4" Diameter, 0.11 to 0.189" Grip Range, 0.59" Body Length
(Pack of 100)

Item#: 1543614

RivetKing®

Dome Head

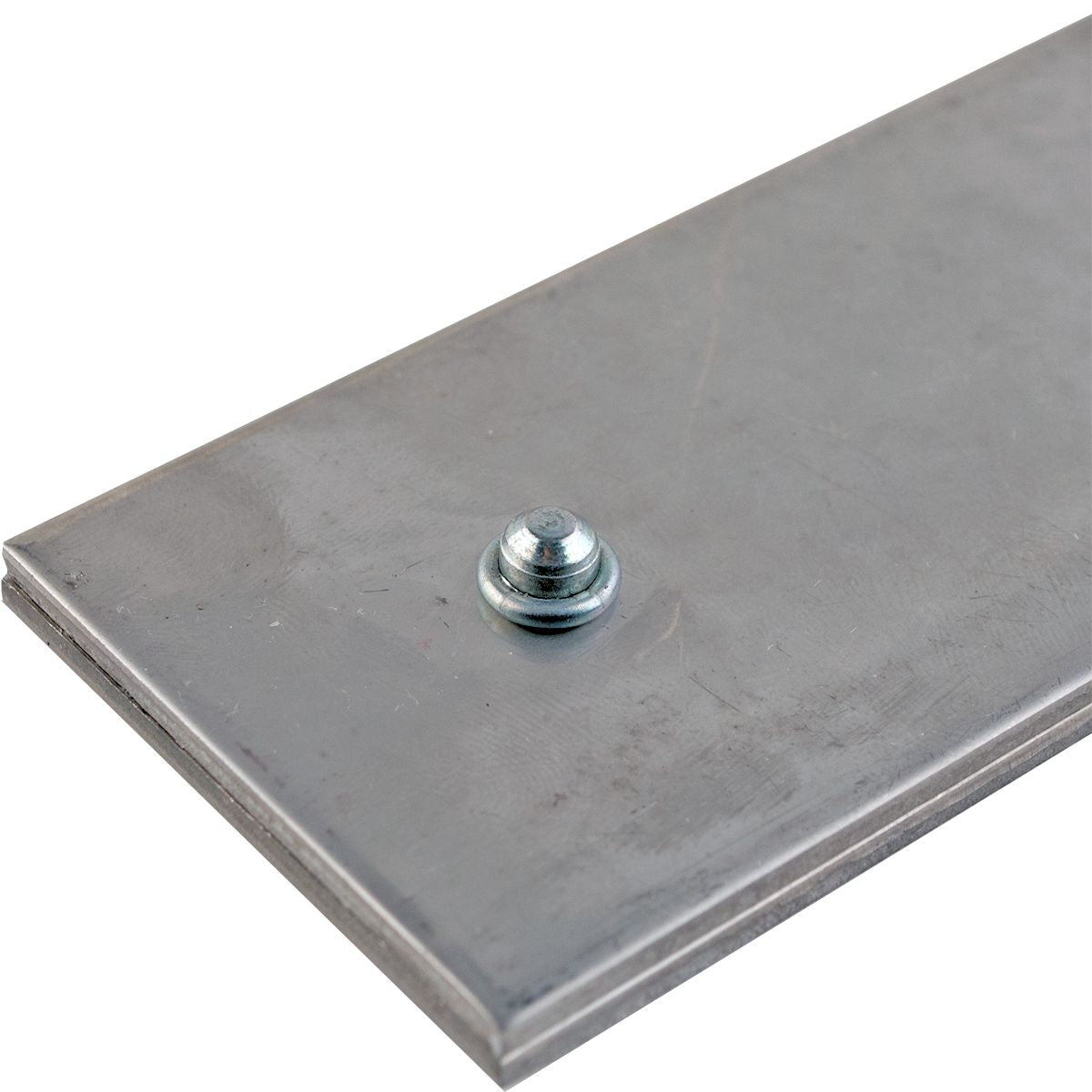

• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 7-15

Frequently Bought Together


Hex Nut Grade 5 Steel 5/16-18

Item#: FA95678

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Flat Washer Grade 12 Thru-Hardened Steel M6

Item#: 87508

Structural Rivet Internal Lock Dome Head SS 1/4"

Item#: 1543644

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 1962

Structural Rivet Internal Lock Steel 3/16"

Item#: 90478

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Nutsetter & Bit Set, Magnetic, 22pc

Item#: FA5737

Structural Rivet Internal Lock Aluminum 1/4"

Item#: 1543652

StemLock® Rear-Flange Structural Rivet Steel 1/4"

Item#: 1543618

Structural Rivet Internal Lock Aluminum 1/4"

Item#: 1543641

Product Description

Dome Head
• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543614
Type Structural – Rear Flange
Head Style Dome Head
Material Body / Mandrel Steel/Steel
Diameter 1/4 "
Grip Range 0.110 – 0.189 "
Hole Size 0.263 – 0.271 "
Head Diameter 0.530 "
Head Height 0.110 "
Body Length 0.590 "
Shear Strength 2,698 lb
Tensile Strength 1,978 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 1.75 lb
