Tapered Anchor Bolt Steel 1/2 x 5"
(Pack of
5.0)
• Heat-treated, zinc-plated Grade 5 bolt
• Removable and reusable
• No unsightly threads protruding
• Excellent performance in high vibration
• Bolt size is hole size
• Pre-assembled with expansion nut
• Equal force all around
• Applications: Pallet racking crane rail, tilt wall, machinery and highway safety

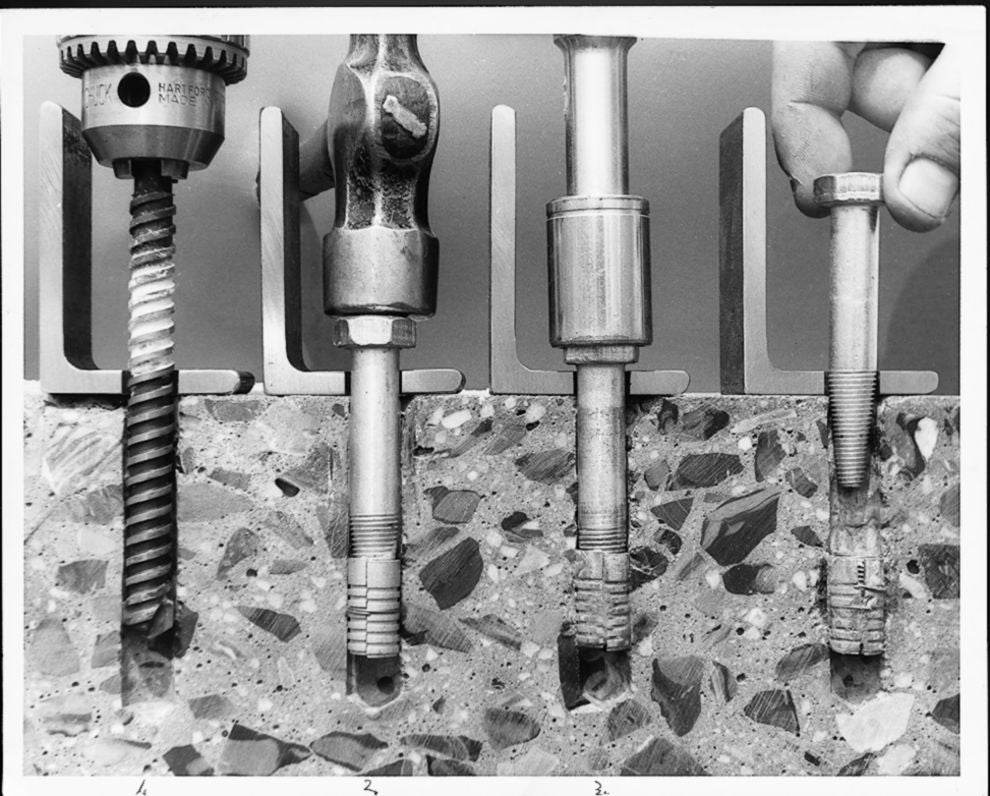

Installation Procedure
1. Drill hole same diameter as Tapered Anchor Bolt, using fixture as a template.
2. Drive Tapered Anchor Bolt into place, leaving recommended head clearance. If hole is oversized, remove and pre-expand the nut to fit hole.
3. Tighten to recommended number of turns and/or torque. For big jobs, use impact wrench for greater speed and consistency.

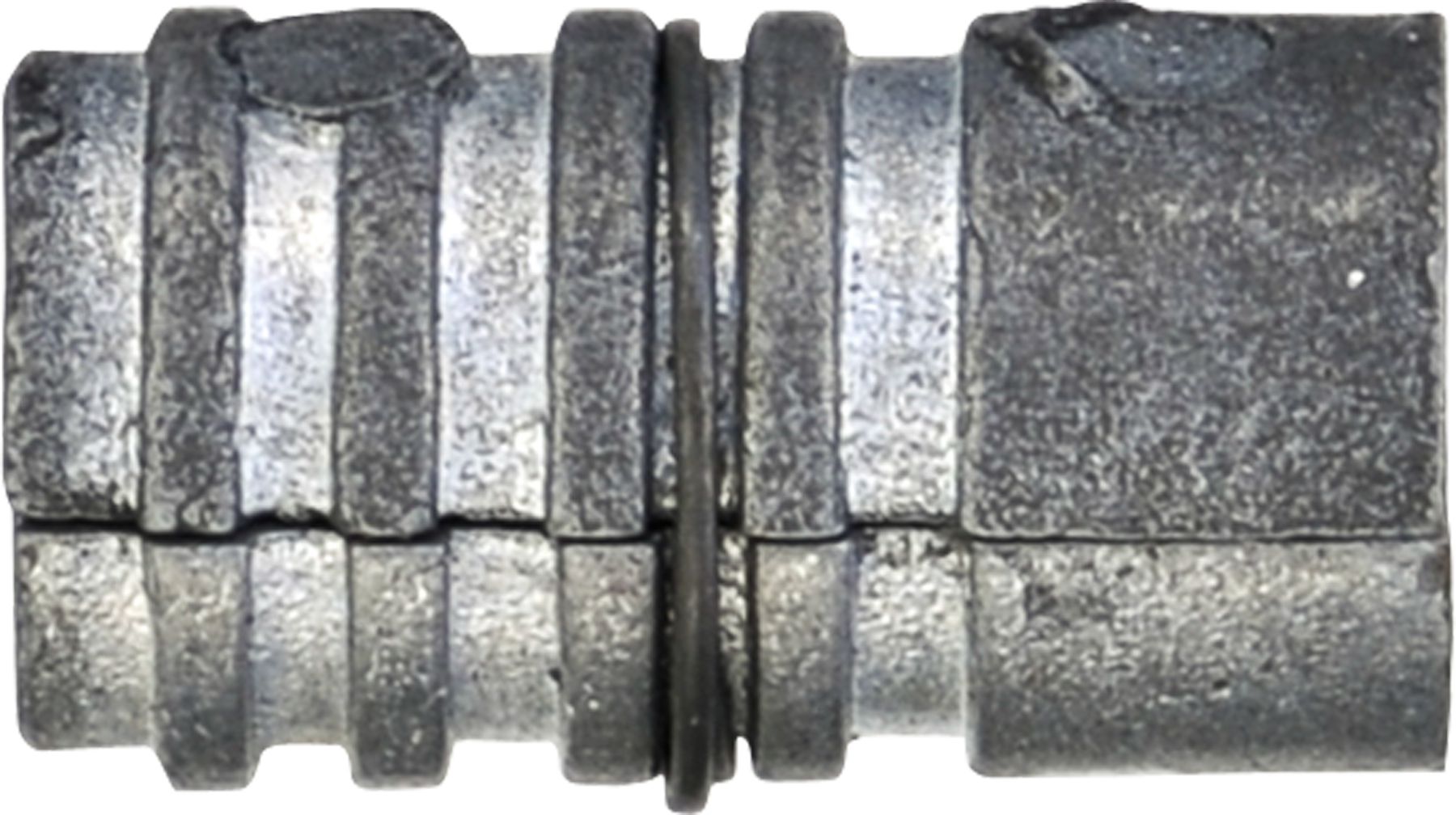

4. When removal is needed, simply unscrew it. Bolt can then be reinserted and torqued to original holding power. To use in another hole, simply add a new expander nut.
Ultimate tensile strength and ultimate shear strength values shown: a 4:1 safety factor is recommended.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 6-29
Frequently Bought Together
Wing Type Toggle Bolt Steel #10-24 x 3"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #6-32 x 2"
Couldn't load pickup availability
ALLIGATOR® Anchor Nylon #6 to #10
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Tapered Anchor Bolt Steel 3/8 x 3"
Couldn't load pickup availability
Product Description
• Heat-treated, zinc-plated Grade 5 bolt• Removable and reusable
• No unsightly threads protruding
• Excellent performance in high vibration
• Bolt size is hole size
• Pre-assembled with expansion nut
• Equal force all around
• Applications: Pallet racking crane rail, tilt wall, machinery and highway safety
Installation Procedure
1. Drill hole same diameter as Tapered Anchor Bolt, using fixture as a template.
2. Drive Tapered Anchor Bolt into place, leaving recommended head clearance. If hole is oversized, remove and pre-expand the nut to fit hole.
3. Tighten to recommended number of turns and/or torque. For big jobs, use impact wrench for greater speed and consistency.
4. When removal is needed, simply unscrew it. Bolt can then be reinserted and torqued to original holding power. To use in another hole, simply add a new expander nut.
Ultimate tensile strength and ultimate shear strength values shown: a 4:1 safety factor is recommended.
Technical Specifications
| Item#: | 95000 |
|---|---|
| Diameter | 1/2 " |
| Length | 5 " |
| Finish | Zinc |
| Minimum Embedment | 2-3/8 " |
| Ultimate Tensile Strength In 3,000 PSI Concrete | 8,165 lb |
| Ultimate Shear Strength In 3,000 PSI Concrete | 12,177 lb |
| Required Torque to Set | 90 ft·lbf |
| Grade | 5 |
| Material | Steel |
| Type | Tapered Anchor Bolt |
| Size | 1/2X5 " |
| Head Height | 1/4 " |
| Drill Size | 1/2 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 1.71 lb |
