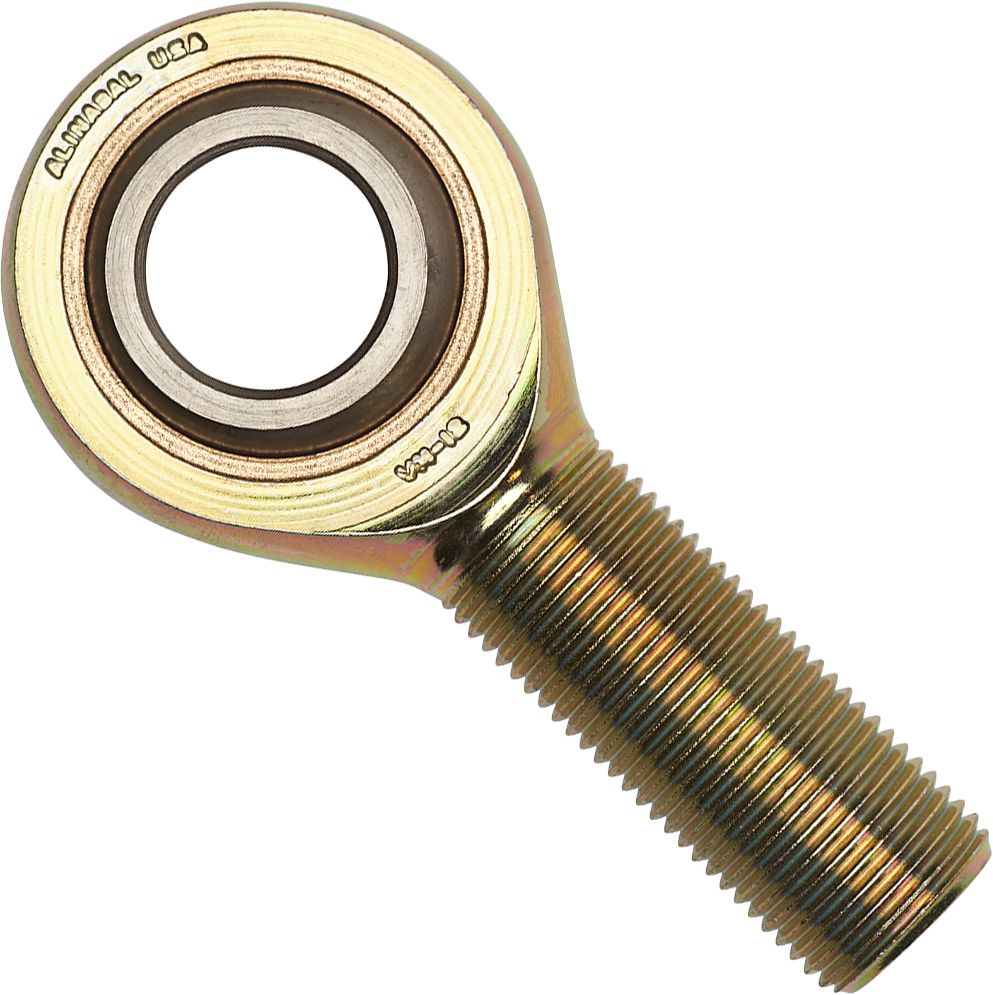

Throttle Ball Joint with Spherical Bearing, UNF Threads, Plated, Low Carbon, Left Hand Threads, 1/2-20 Male Rod End
(Pack of
1)
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 22-26
Frequently Bought Together
Dual Foot Tilt-Lock Air Chuck
Couldn't load pickup availability
Tire Repair Inner Liner Sealer
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 3/4oz
Couldn't load pickup availability
Bumper Cover and Fender Shield Push-Type Retainer
Couldn't load pickup availability
P Series Lead Clip-On Wheel Weight 1-1/2oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1-1/4oz
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/8-18
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 7/16-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/4-28
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 10-32
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 59551 |
|---|---|
| Hole Diameter | .5 " |
| Length of Rod End to Center of Hole | 2.438 " |
| Male Thread | 1/2-20 |
| Ultimate (Radial) Static Load Rating | 7,400 lb |
| Thread | Left Hand Threads |
| Plating | Yes |
| A | .5 " |
| B | 2.438 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
