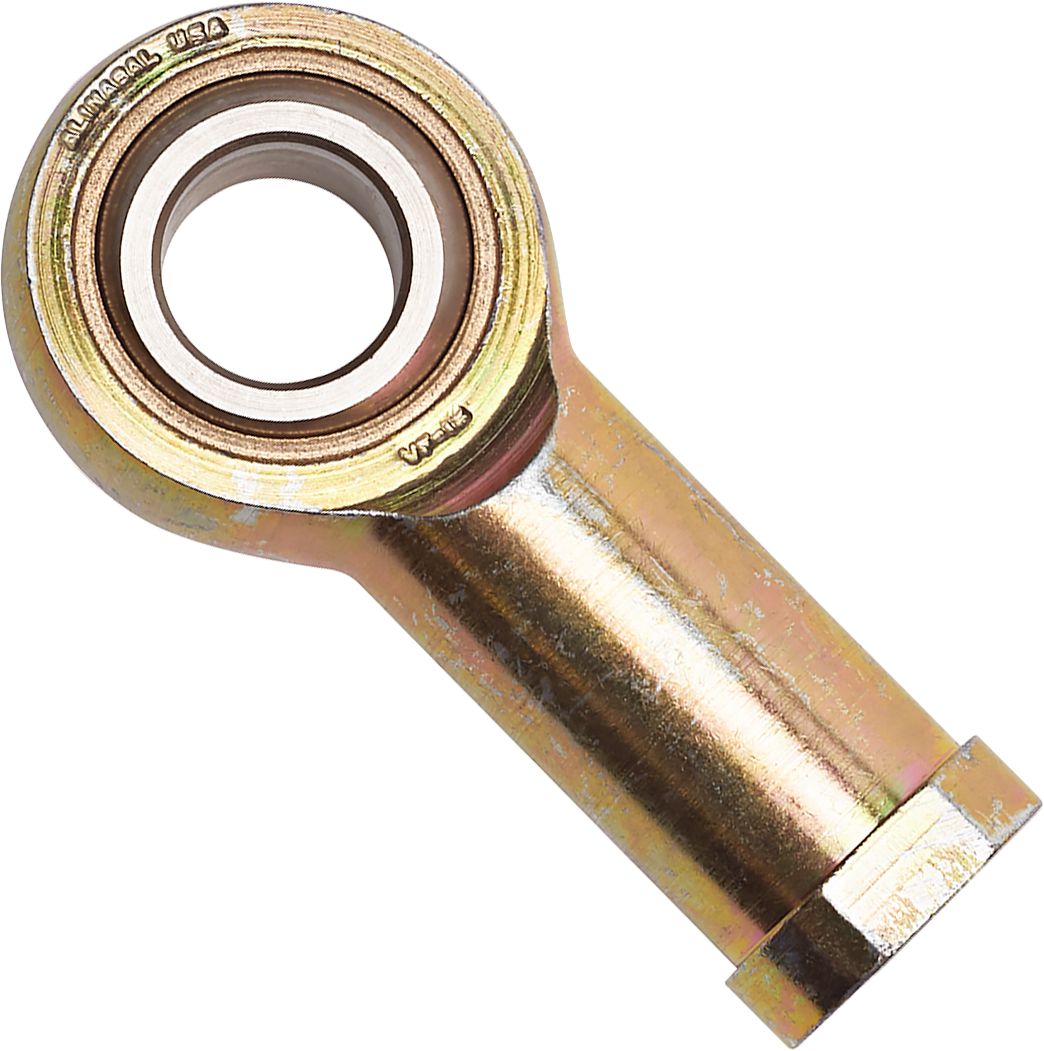

Throttle Ball Joint with Spherical Bearing, UNF Threads, Plated, Low Carbon, Left Hand Threads, 10-32 Female Rod End
(Pack of
1)
SKU:60015 Item#: 60015
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
Catalog page#: 22-26
Frequently Bought Together
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
P Series Lead Clip-On Wheel Weight 0.75oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 2oz
Couldn't load pickup availability
Tire Patch Cement 8oz Chemical
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 3/4 oz
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1/2 oz
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/8-18
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 7/16-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Speedometer with Odometer Gauges 0 to 85MPH
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 60015 |
|---|---|
| Hole Diameter | .19 " |
| Length of Rod End to Center of Hole | 1.062 " |
| Female Thread | 10-32 |
| Ultimate (Radial) Static Load Rating | 1,800 lb |
| Thread | Left Hand Threads |
| Plating | Yes |
| A | .19 " |
| B | 1.062 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
