Home Anchors Wedge Type Stud Bolt Anchor SS 1/2 x 5-1/2"
Anchors

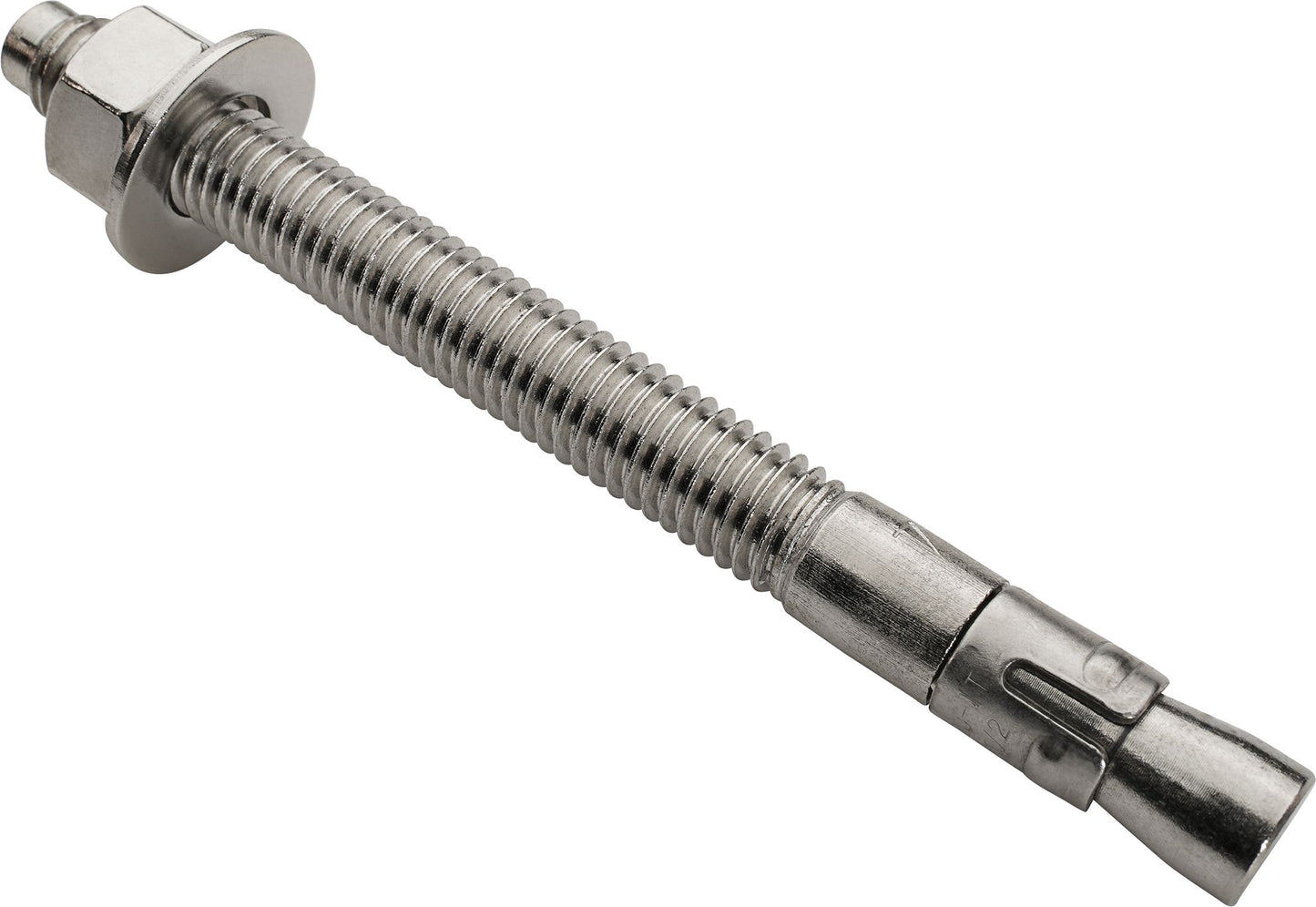

Wedge Type Stud Bolt Anchor SS 1/2 x 5-1/2"

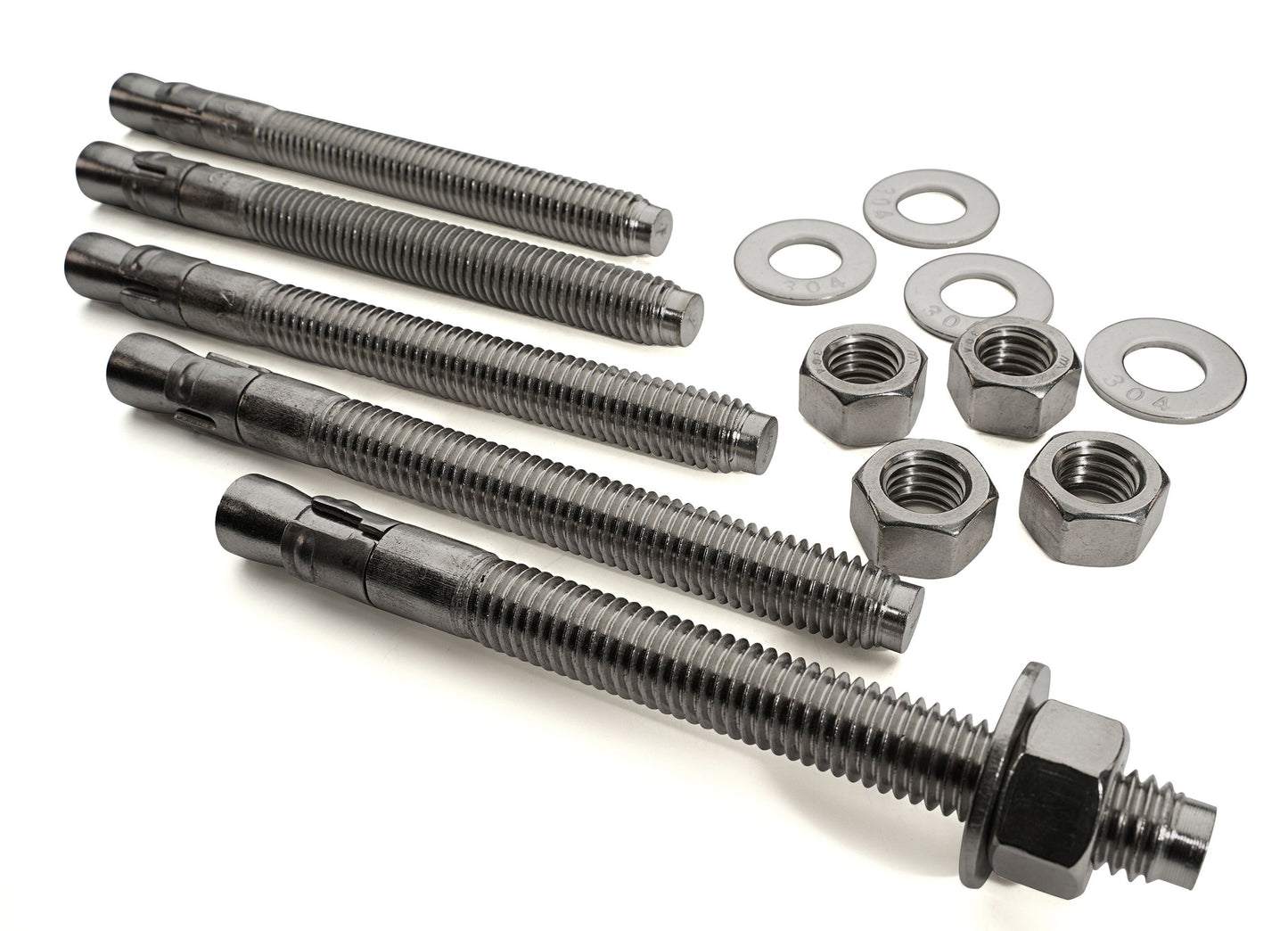

(Pack of 5.0)

Lawson Products

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 6-30

Frequently Bought Together


Self-Drilling Wall Anchor 1-5/8"

Item#: 95096

Masonry Anchor Hex Washer Head Steel 1/4 x 1-3/4"

Item#: 96914

Wing-Type Toggle Bolt Anchor Steel #6-32 x 2"

Item#: 25140

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Lock Washer Alloy Steel 3/8"

Item#: A530

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Rechargeable Neck Light

Item#: 1639014

Butt Connector 22 to 18 AWG Clear

Item#: 1368140

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

Wedge Type Anchor Bolt Steel 3/4 x 5"

Item#: 92865

Wedge Type Anchor Bolt Steel 3/8 x 2"

Item#: 92855

Wedge Type Anchor Bolt Steel 3/8 x 3-1/2"

Item#: 92857

Product Description

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Technical Specifications

Item#: 91632
Diameter 1/2 "
Length 5-1/2 "
Thread Length 3-3/4 "
Drill Size 1/2 "
Material Stainless Steel
Finish Plain
Type Wedge Anchor
Proof Test Load 3,400 lb
Length Identification Code H
Size 1/2X5-1/2 "
Minimum Embedment 2-1/8 "
UNSPSC #: 31162101
TAA Compliant: No
Weight: 1.505 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
