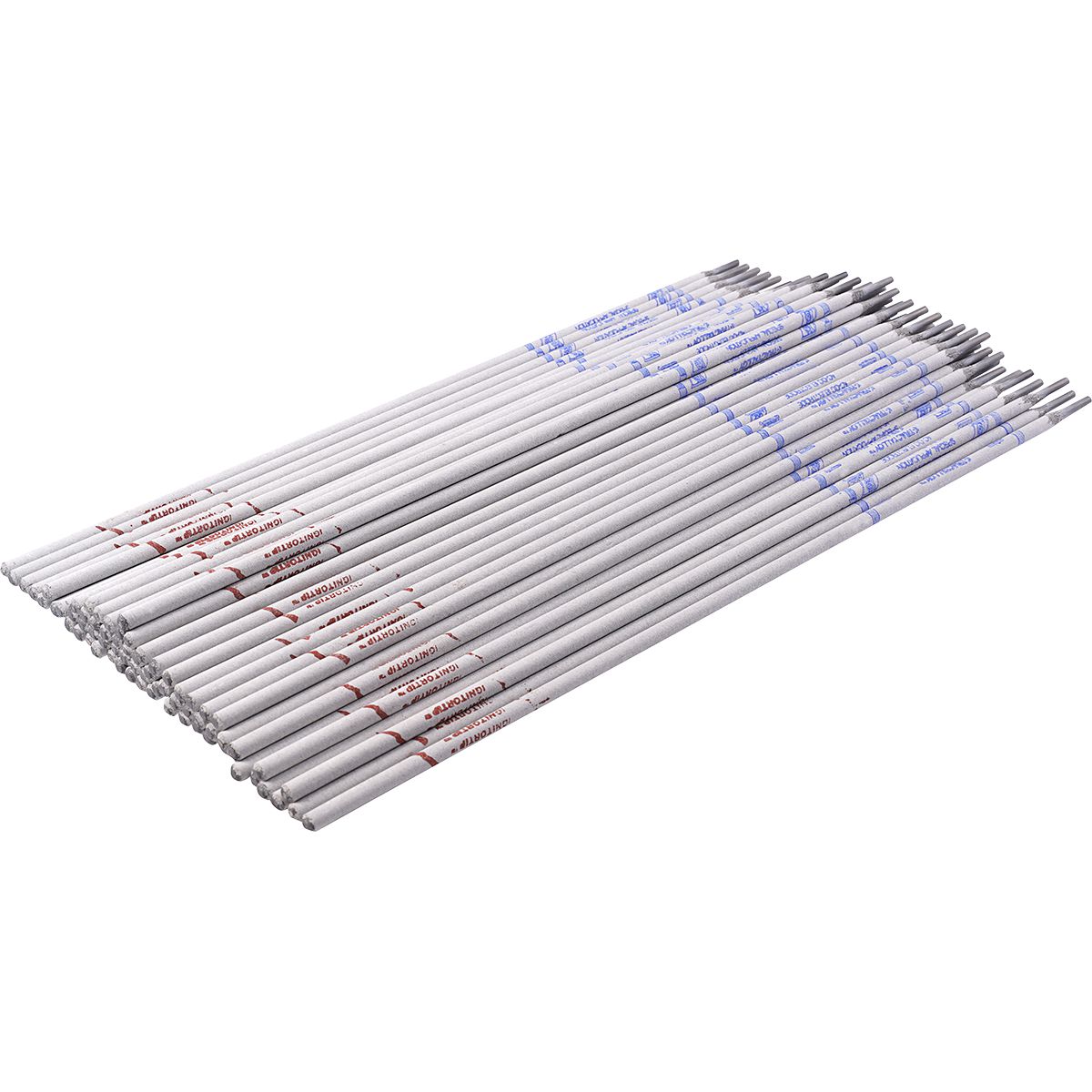

X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 1/8
(Pack of
5.0)
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.
• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
333 Dissimilar Steel Stick Rod Electrode 3/16"
Couldn't load pickup availability
100 Blue Lightning Tough Duplex Alloy 1/8
Couldn't load pickup availability
333 Dissimilar Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Technical Specifications
| Item#: | EG00440000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 150,000 PSI |
| Elongation | 27 % |
| Hardness | 21 HRC |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.15 lb |
