Description

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

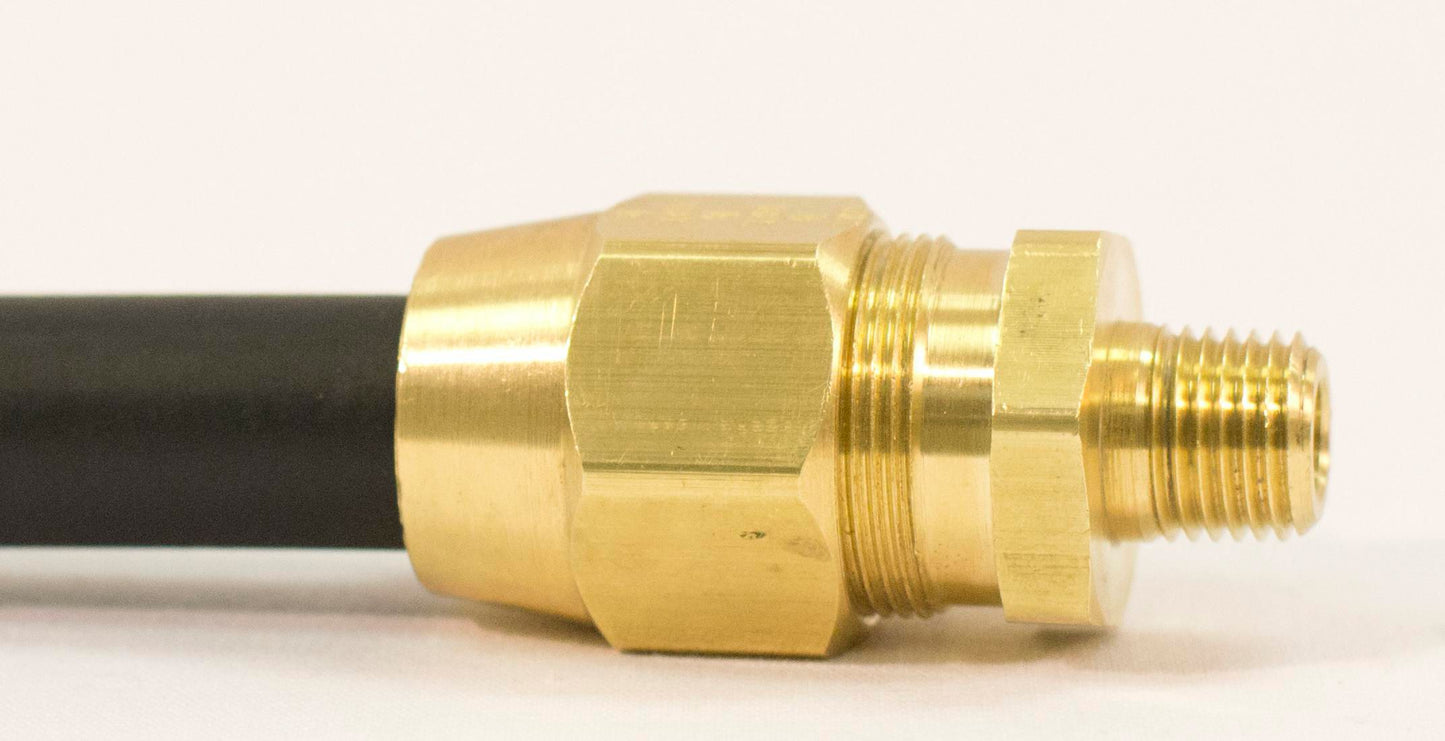

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Female Connectors.

Tech Specs

Item# :

97255P

Product Name :

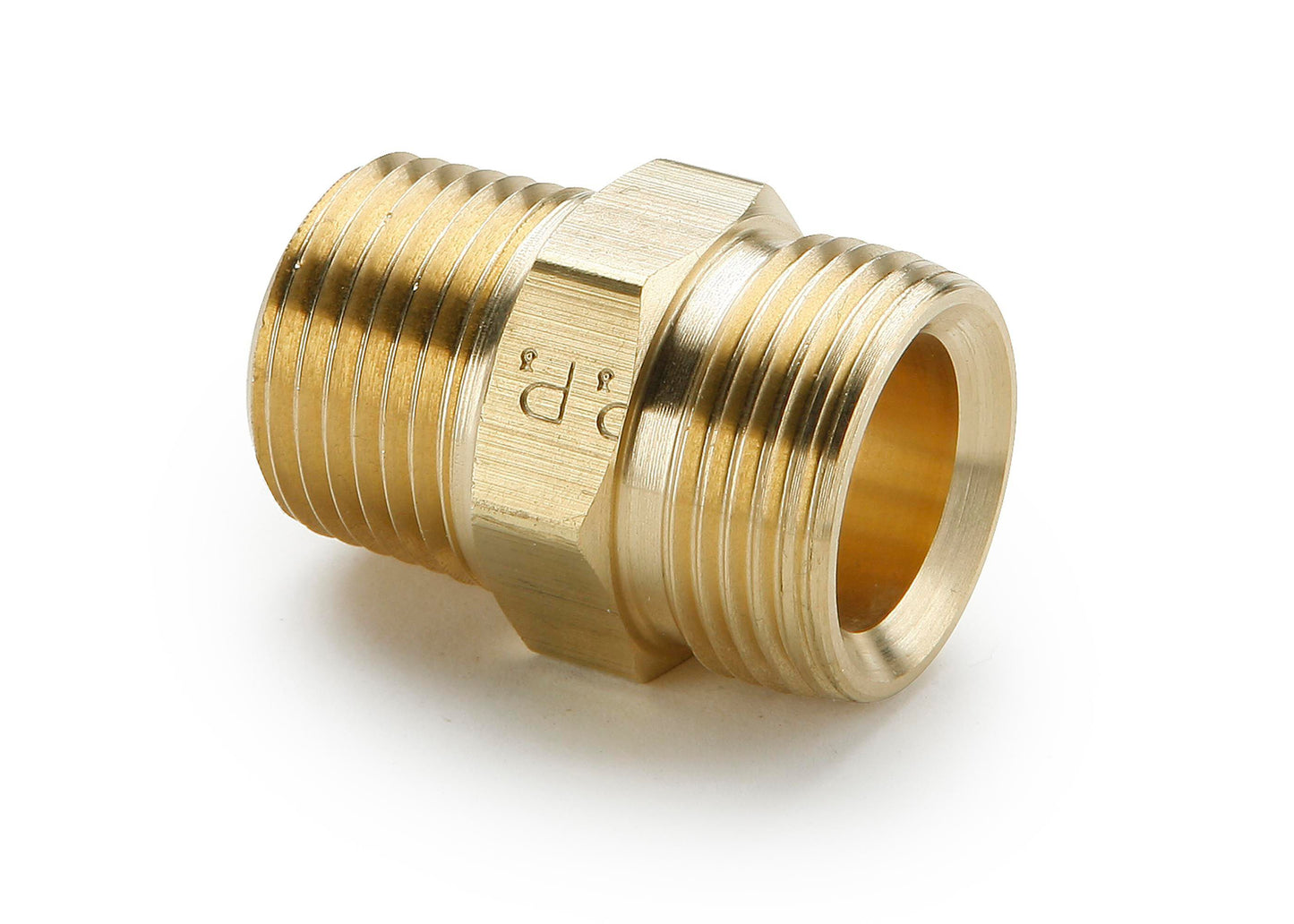

Parker - Parker DOT Field Attachable - Adapter 7/8-20x3/8

Class :

Field Attachable Air Brake Fittings

Fitting Type :

Compression - Rubber

Style :

DOT

Material :

Brass

Configuration :

Thread Adapter

Connection Type A x B :

Straight Thread x Pipe Thread

Fitting Dimension A :

7/8-20 "

Fitting Dimension B :

3/8 "

Type :

Compression

Parker Reference No. :

76RB-7/8-6

UNSPSC #:

25171700

TAA Compliant:

Yes
