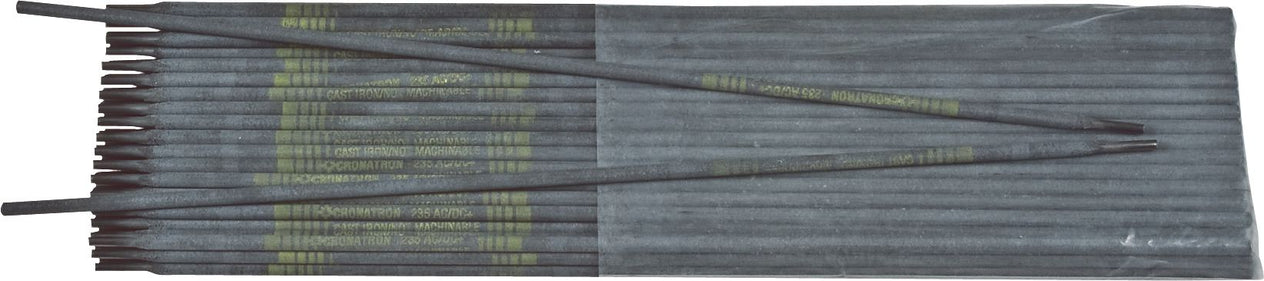

235 Cast Iron Stick Rod Electrode, Flux Coated, 80 to 120 Amps, DCSP Polarity, High Strength Welds, 1/8"
(Pack of 5)

Cronatron®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

Frequently Bought Together

131 Cast-Weld Special Purpose Cast Iron Electrode 3/16

Item#: EG13120000

130 Hpm Cast Iron Machinable Electrode 5/32

Item#: EG13030000

133 Econo-Cast Wear Resistant Cast Electrode 5/32

Item#: EG13330000

Self-Drilling Screw Hex Head #10-16 x 3/4"

USS Flat Washer Thru-Hardened Steel 3/8"

Flat Washer Grade 12 Thru-Hardened Steel M12

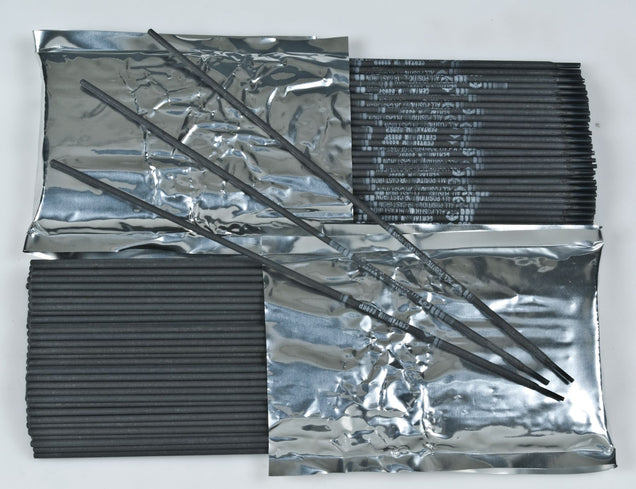

E6010 Mild/Carbon Steel Stick Electrode 1/8"

176 Extreme Abrasion With Impact 1/4X18IN

Item#: EG17610250

3880 Stainless Steel TIG Wire 3/32"

345 Tool Steel TIG Wire 1/16"

665 Copper and Brass TIG Wire 1/16"

383 Stainless Steel TIG Wire 1/16"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	CW1037
Welding Process	Stick
Type	Flux Coated
Diameter	1/8 "
Tensile Strength	60,000 PSI
Base Metal	Cast Iron
Polarity	DCSP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.24 lb

Product Restrictions

Suggested Products

211 Cast Iron TIG Wire 1/8"

211 Cast Iron TIG Wire 3/32"

889 Cast Iron Stick Rod Electrode 3/32"

889 Cast Iron Stick Rod Electrode 3/16"

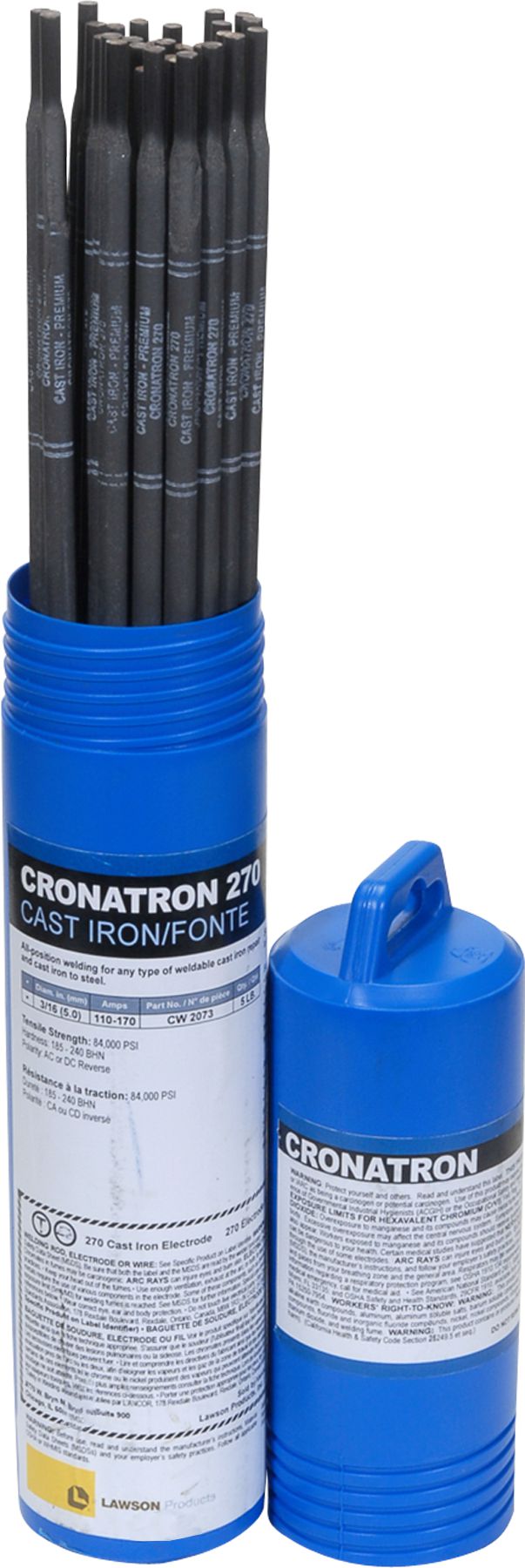

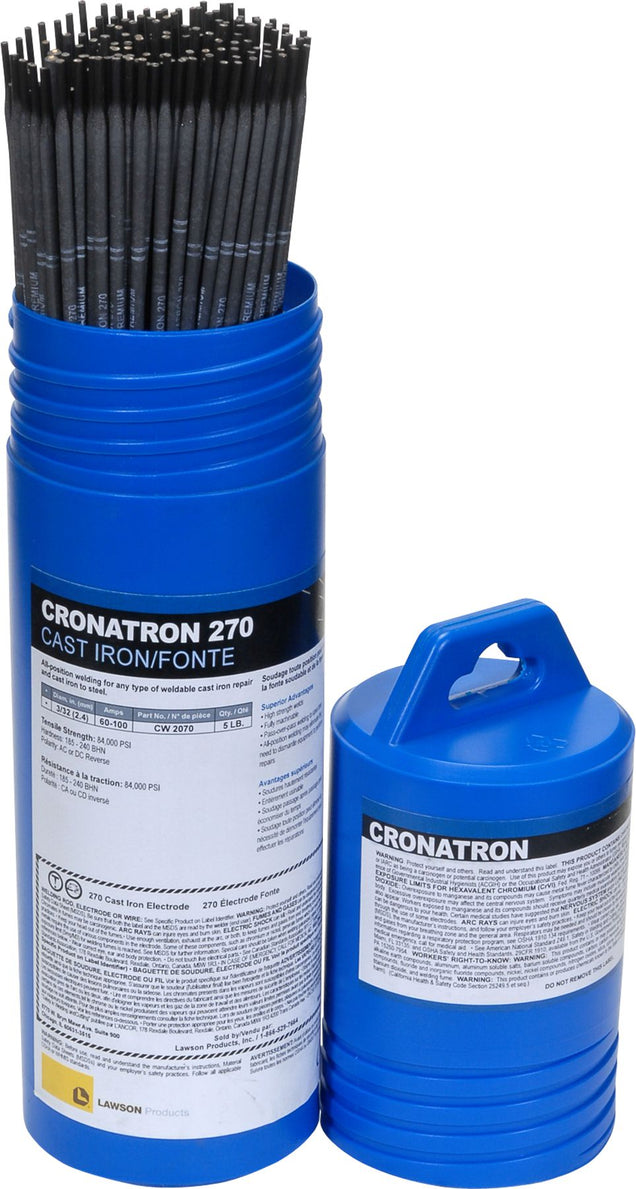

270 Cast Iron Stick Rod Electrode 5/32"

270 Cast Iron Stick Rod Electrode 3/32"

270 Cast Iron Stick Rod Electrode 3/16"

889 Cast Iron Stick Rod Electrode 5/32"

222 Cast Iron Stick Rod Electrode 1/8"

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

211 Cast Iron TIG Wire 1/16"

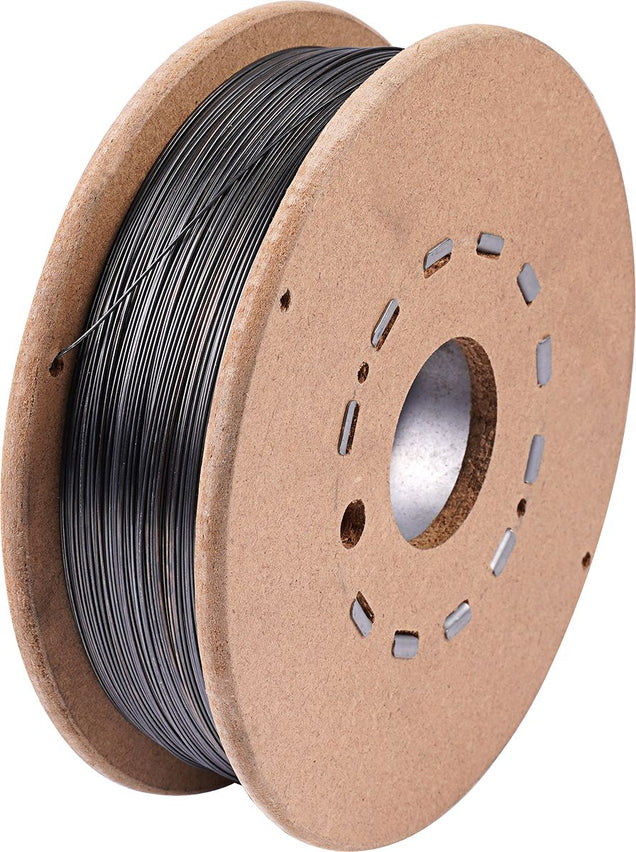

631 Cast-Weld Fc Alloy Wire .035X11LB
