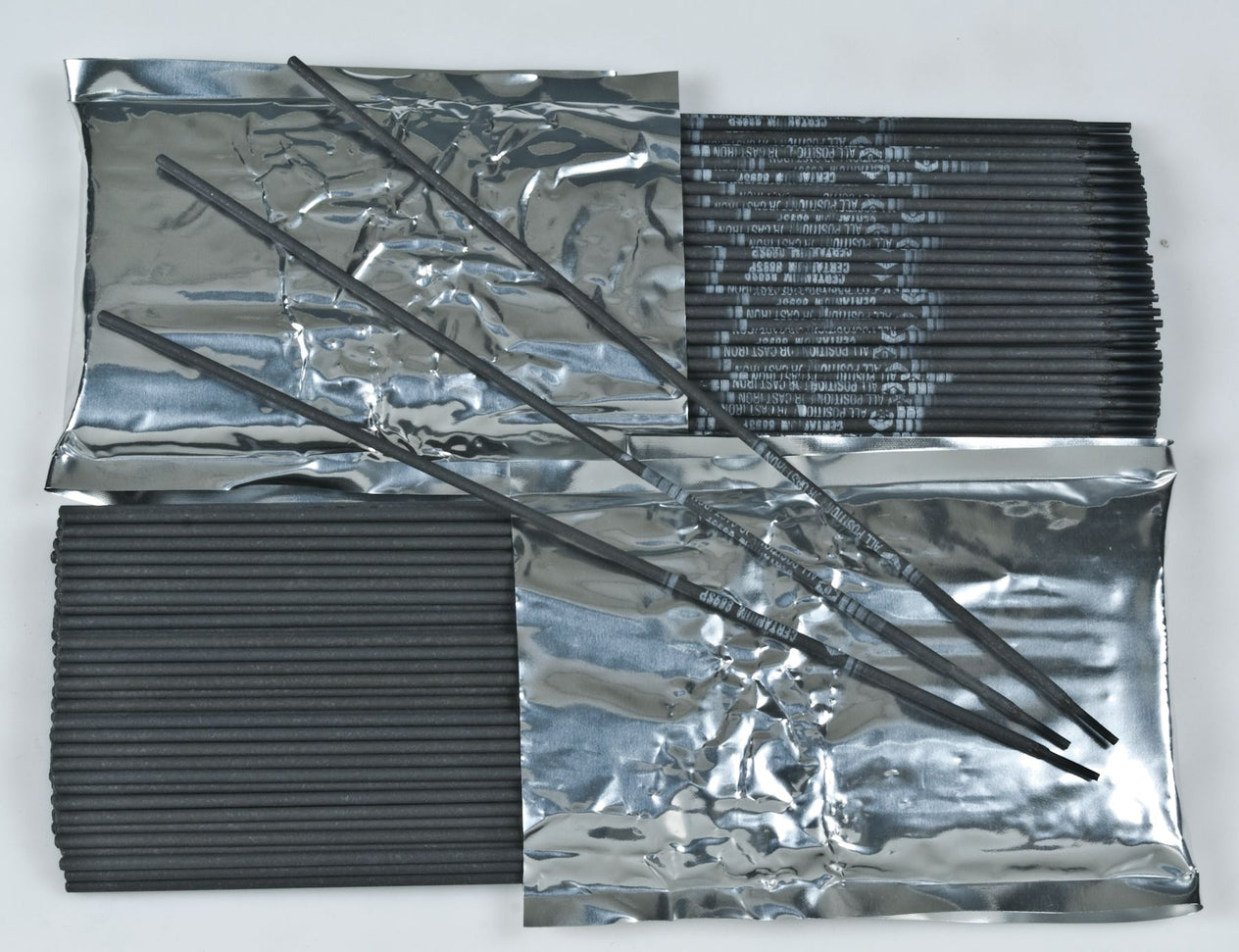

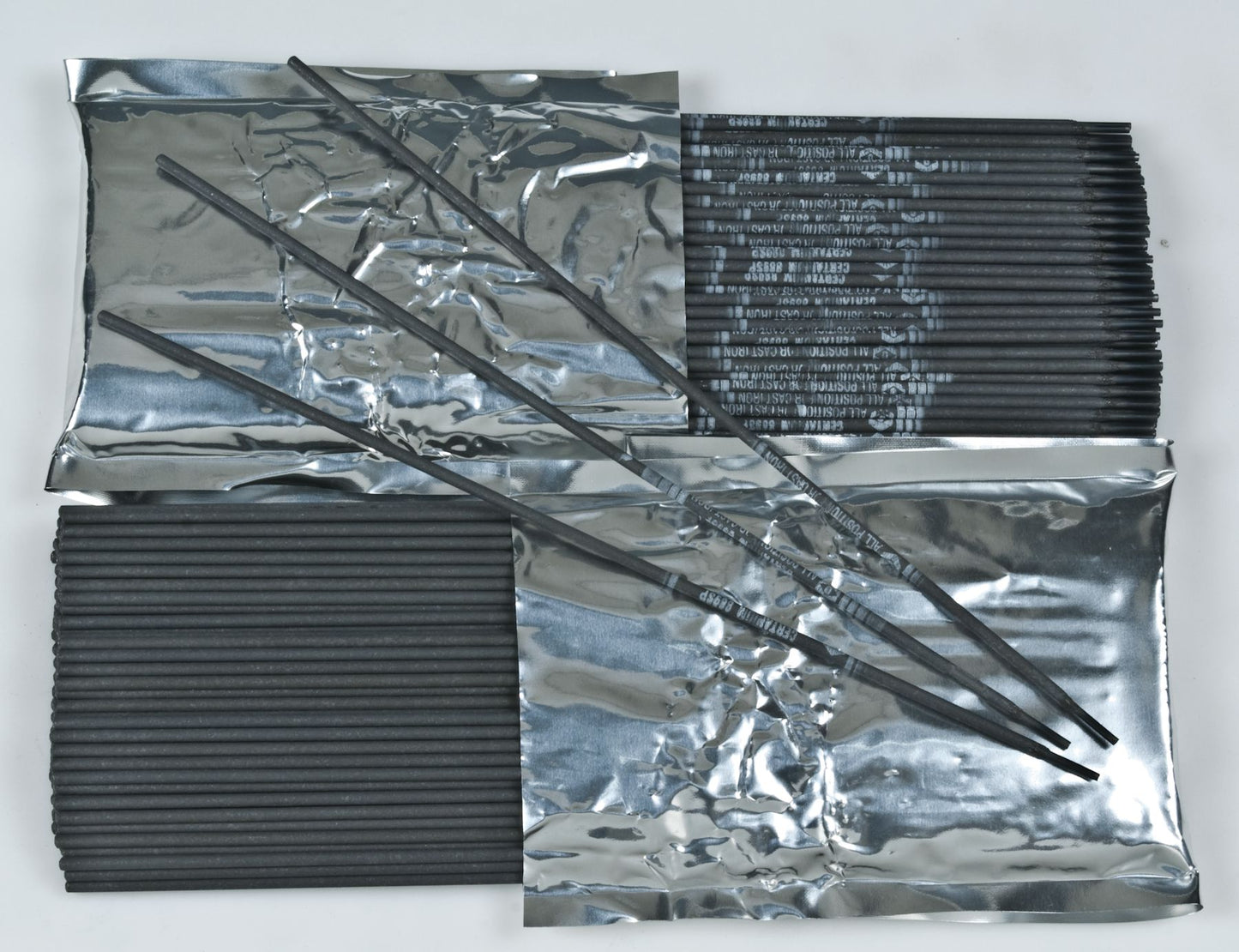

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/32"
(Pack of 10)

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

Frequently Bought Together

631 Cast-Weld Fc Alloy Wire .035X11LB

Item#: EG63140035

222 Cast Iron Stick Rod Electrode 3/32"

270 Cast Iron Stick Rod Electrode 1/8"

Self-Drilling Screw Hex Head 1/4-14 x 1"

SAE Flat Washer Thru-Hardened Steel 5/8"

Stepdown Butt Connector 16 to 14/12 to 10 AWG

333 Dissimilar Steel TIG Wire 3/32"

E7018 Mild/Carbon Steel Stick Electrode 1/8

Item#: EG12047019

338 Mild/Carbon Steel Stick Rod Electrode 1/8"

606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire

Item#: EG60640023

665 Copper and Brass TIG Wire 3/32"

333 Dissimilar Steel Stick Rod Electrode 3/32"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12001
Welding Process	Stick
Type	Flux Coated
Diameter	3/32 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
Ford Tox Number	019982
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.0 lb
