Home Welding Welding Alloys Cast Iron 631 Cast-Weld Fc Alloy Wire .045X11LB
Cast Iron

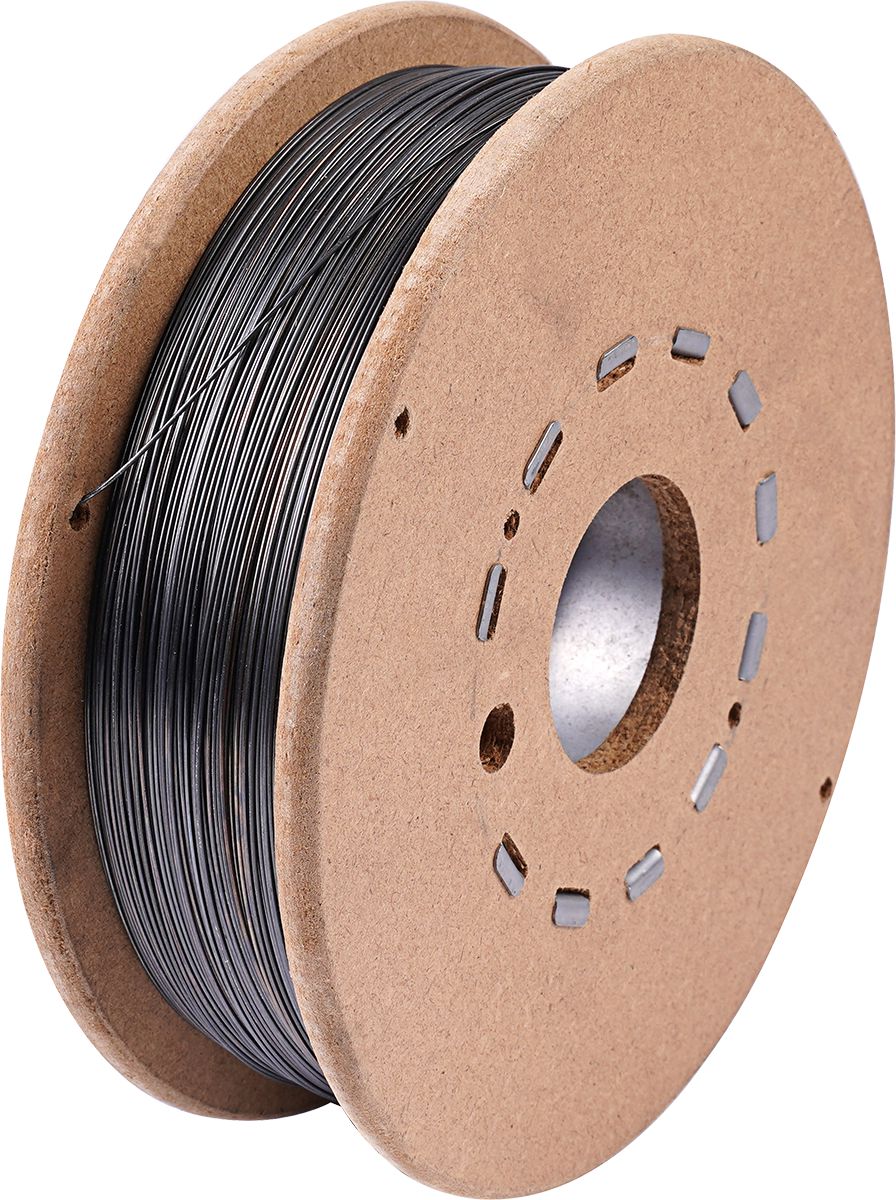

631 Cast-Weld Fc Alloy Wire .045X11LB
631 Cast-Weld Fc Alloy Wire .045X11LB

631Cast-Iron Flux Core Wire Desingned To Weld All Grades Of Cast Iron/Duel Sheiled Wire/Gas 98%Ar 2%Co2 Polarity Dc+Tensile 73000
(Pack of 11)

Item#: EG63140045

Lawson Products

Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

222 Cast Iron Stick Rod Electrode 3/32

222 Cast Iron Stick Rod Electrode 3/32"

Item#: CW1861
270 Cast Iron Stick Rod Electrode 1/8

270 Cast Iron Stick Rod Electrode 1/8"

Item#: CW2071
131 Cast-Weld Special Purpose Cast Iron Electrode 3/16

131 Cast-Weld Special Purpose Cast Iron Electrode 3/16

Item#: EG13120000
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
Lock Washer Alloy Steel 1/2

Lock Washer Alloy Steel 3/8"

Item#: A530
Oxy-Therm Cutting Rod 3/8 x 36

Oxy-Therm Cutting Rod 3/8 x 36"

Item#: CW3620
281 High Strength Silver Bearing Solder .031DIA 19G TUBE

281 High Strength Silver Bearing Solder .031DIA 19G TUBE

Item#: EG28172000
Oxy Acetylene Fuel Gas Three Replacement Flint, Electro-Zinc Plated

Oxy Acetylene Fuel Gas Three Replacement Flint

Item#: CW1309
106 Mild Steel All Purpose Electrode, Mild Steel Stick Electrode Chematized Flux / Moisture Proof/Polarity Dc Or Ac 1/8

106 Mild Steel All Purpose Electrode

Item#: EG10694002
346 Tool Steel TIG Wire 1/16

346 Tool Steel TIG Wire 1/16"

Item#: CW1892
ER4043 Aluminum MIG Welding Wire 0.045

ER5356 Aluminum MIG Welding Wire 0.035"

Item#: 41744
Swivel Head Ratchet 1/4 Drive, 1/4

Swivel Head Ratchet 1/2 Drive

Item#: DY89310011
Swivel Head Ratchet 1/4 Drive, 1/4

Swivel Head Ratchet 1/4 Drive

Item#: DY89310009
Z-Flex Disk 2

Z-Flex 2" Dia., 36 Grit, Roll Lock Mount, Zirconia Alumina

Item#: DY87802039
Swivel Head Ratchet 1/4 Drive, 1/4

Swivel Head Ratchet 1/2 Drive

Item#: DY89310011
Swivel Head Ratchet 1/4 Drive, 1/4

Swivel Head Ratchet 1/4 Drive

Item#: DY89310009
Z-Flex Disk 2

Z-Flex 2" Dia., 36 Grit, Roll Lock Mount, Zirconia Alumina

Item#: DY87802039

Product Description

Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter

Technical Specifications

Item#: EG63140045
Welding Process Flux-Core Arc Welding
Type Flux-Cored Wire
Diameter .045 "
Base Metal Cast Iron
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 12.05 lb
