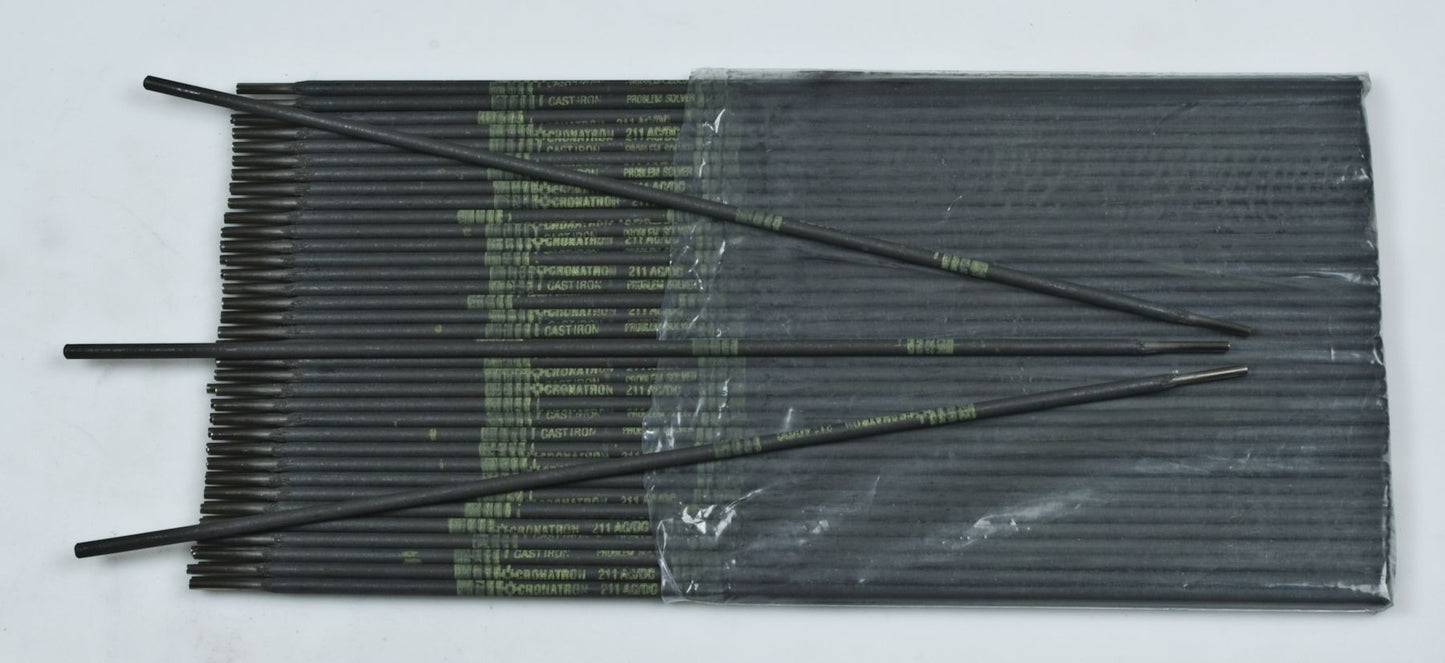

211 Cast Iron Stick Rod Electrode, Flux Coated, 185 to 240 HB Hardness, 12-15% Elongation, 75 to 110 Amps, DCRP/AC Polarity, 1/8"
(Pack of
5)
Achieve high-strength, precision repairs with the 211 Cast Iron Stick Rod Electrode, designed for seamless cast iron welding and cast iron-to-steel applications. With tensile strength up to 84,000 PSI and all-position welding capability, it simplifies complex repairs by eliminating the need to dismantle equipment. Its fully machinable welds and pass-over-pass efficiency save time while delivering reliable results. From cylinder blocks to manifolds, this versatile electrode is your go-to solution for restoring cracked or broken parts in pump housings, machine bases, and more. Optimize your workflow with the trusted performance of the 211 Cast Iron Welding Electrode.
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSIHardness: 185 – 240 BHNPolarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.
Frequently Bought Together
131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Plow Bolt High Strength A9 3/4-10 x 3"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Class 2 Two Tone Vest Lime Size Large/X-Large
Couldn't load pickup availability
Product Description
Achieve high-strength, precision repairs with the 211 Cast Iron Stick Rod Electrode, designed for seamless cast iron welding and cast iron-to-steel applications. With tensile strength up to 84,000 PSI and all-position welding capability, it simplifies complex repairs by eliminating the need to dismantle equipment. Its fully machinable welds and pass-over-pass efficiency save time while delivering reliable results. From cylinder blocks to manifolds, this versatile electrode is your go-to solution for restoring cracked or broken parts in pump housings, machine bases, and more. Optimize your workflow with the trusted performance of the 211 Cast Iron Welding Electrode.• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSIHardness: 185 – 240 BHNPolarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.
Technical Specifications
| Item#: | CW1034 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 84,000 PSI |
| Elongation | 12-15 % |
| Base Metal | Cast Iron |
| Hardness | 185-240 BHN |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.4 lb |
Product Restrictions
