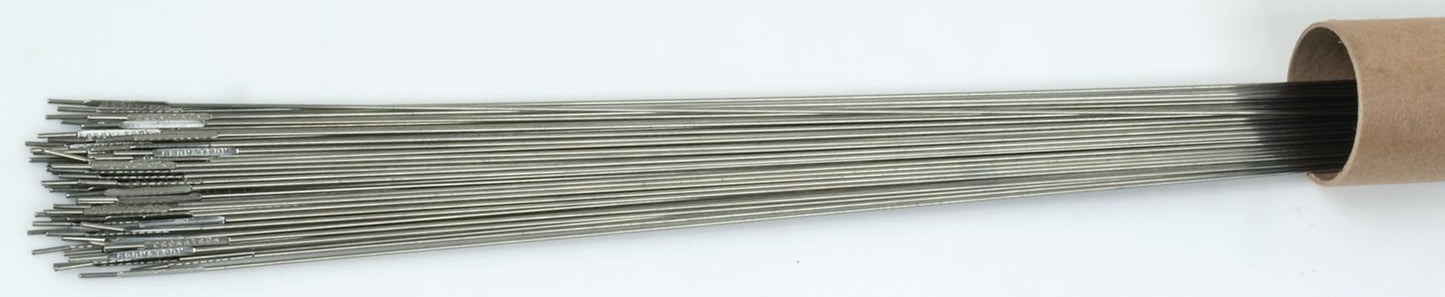

211 Cast Iron TIG Wire 1/16"
(Pack of
2.0)
The 211 Cast Iron TIG Wire, also known as Chronatig 211T, is your go-to solution for reliable and efficient cast iron repairs. Designed for professional welders and repair technicians, this specialized filler metal ensures high-strength, fully machinable welds on various cast iron types, including cast iron to steel. Say goodbye to dismantling equipment, thanks to its all-position welding capabilities, which save time and effort. With its soft copper-nickel composition, the wire provides excellent elongation for crack-sensitive repairs on intricate components like engine blocks, cylinder heads, and water jackets.
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Frequently Bought Together

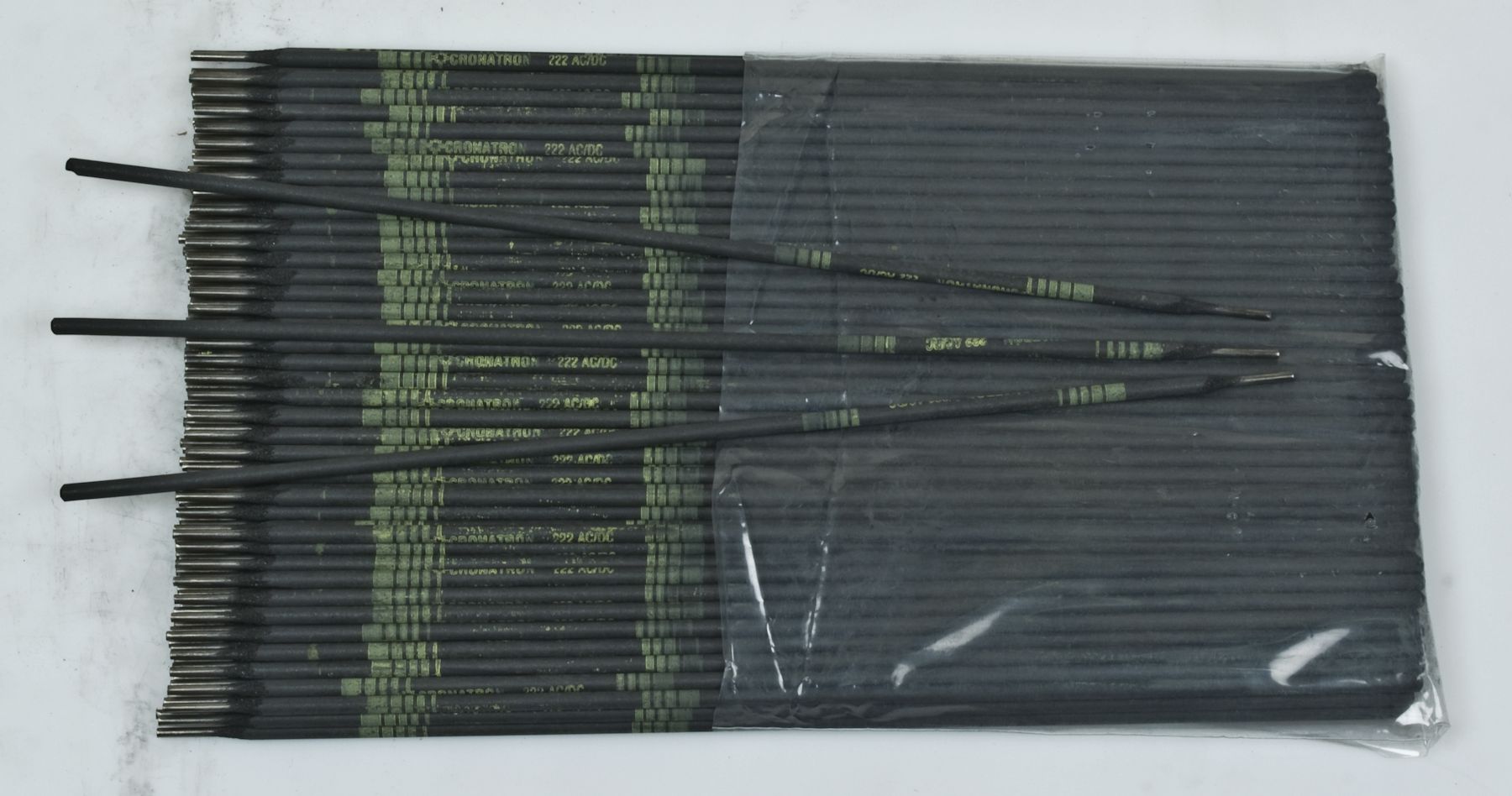

222 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 3/32X36
Couldn't load pickup availability
631 Cast-Weld Fc Alloy Wire .035X11LB
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
Flat Soapstone 1/2"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
556 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
Product Description
The 211 Cast Iron TIG Wire, also known as Chronatig 211T, is your go-to solution for reliable and efficient cast iron repairs. Designed for professional welders and repair technicians, this specialized filler metal ensures high-strength, fully machinable welds on various cast iron types, including cast iron to steel. Say goodbye to dismantling equipment, thanks to its all-position welding capabilities, which save time and effort. With its soft copper-nickel composition, the wire provides excellent elongation for crack-sensitive repairs on intricate components like engine blocks, cylinder heads, and water jackets.• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Technical Specifications
| Item#: | CW1901 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 185-240 BHN |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
Product Restrictions
