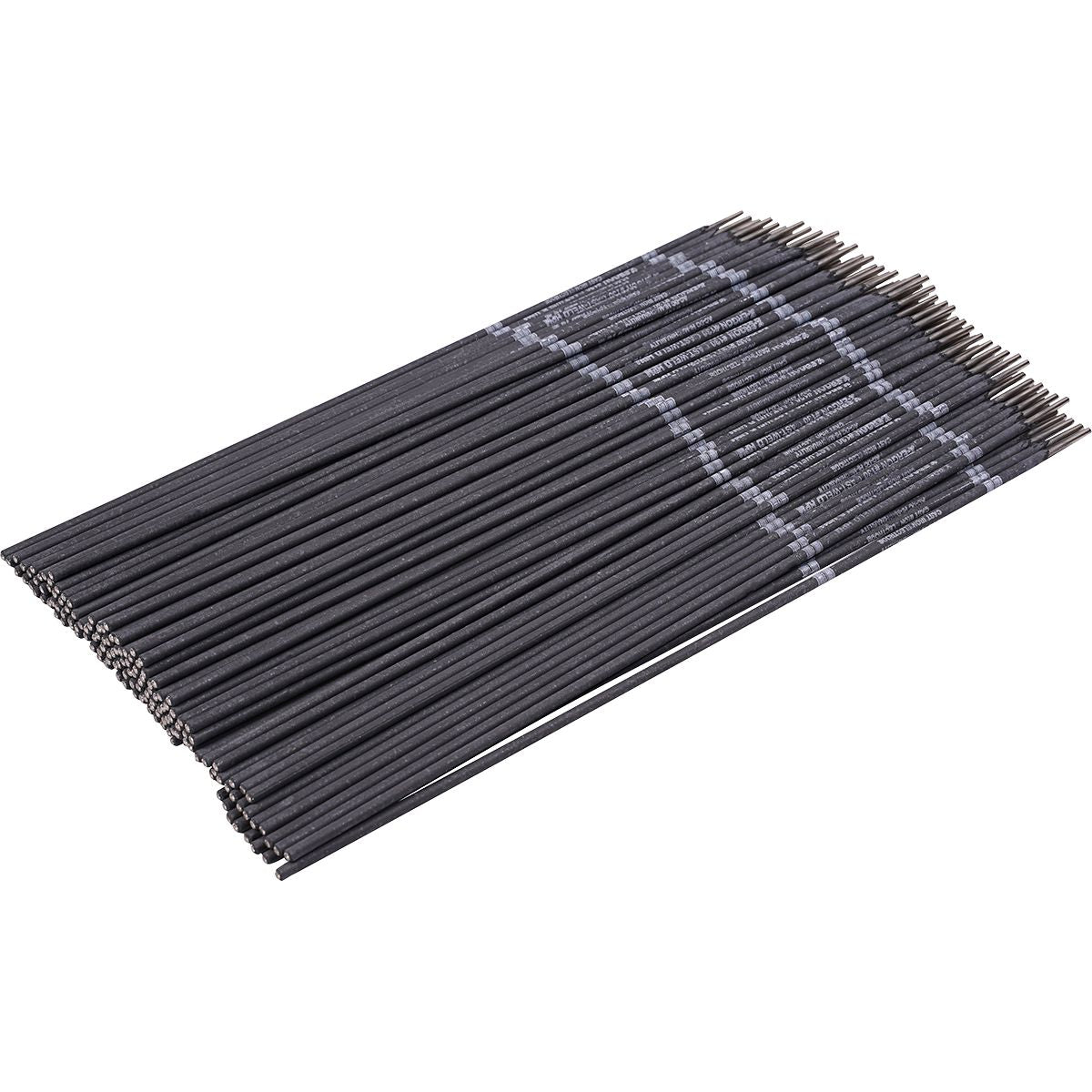

Home Cast Iron 130 Hpm Cast Iron Machinable Electrode 5/32
Cast Iron

130 Cast Weld All Position Stick Electrode/Machinable/ Non-Conductive Flux/Polarity Dcep/Ac/Tensile 60000/All Position
(Pack of 5)

Item#: EG13030000

Lawson Products

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Read More
Check Availability

Frequently Bought Together


889 Cast Iron Stick Rod Electrode 1/8"

Item#: P12003

130T Machinable Cast Iron Tig Alloy 1/16X36

Item#: EG2007130T

130 Hpm Cast Iron Machinable Electrode 3/32

Item#: EG13050000

M12™ FUEL™ HACKZALL® Reciprocating Saw Kit

Item#: 1632684

CryoBoost 1/4" Dia. 1/4" Hex Shank Drill Bit

Item#: DY83611664

Flex-Guard Braided Sleeving 3/8"

Item#: 61685

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Round Soapstone 1/4 x 5"

Item#: CW1475

Wear Plates Used By Maintenance Welder 1/4X4X5

Item#: EG09904500

Oxy Acetylene Fuel and Oxygen Quick Connector

Item#: CW1407

510 Aluminum TIG Wire 1/16"

Item#: CW1016

510 Aluminum MIG Welding Wire 3/64"

Item#: CW1942

X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64

Item#: EG00495602

Product Description

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#: EG13030000
Welding Process Stick
Type Stick
Diameter 5/32 "
Tensile Strength 60,000 PSI
Base Metal Cast Iron
Hardness 80 HRB
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 5.99 lb
