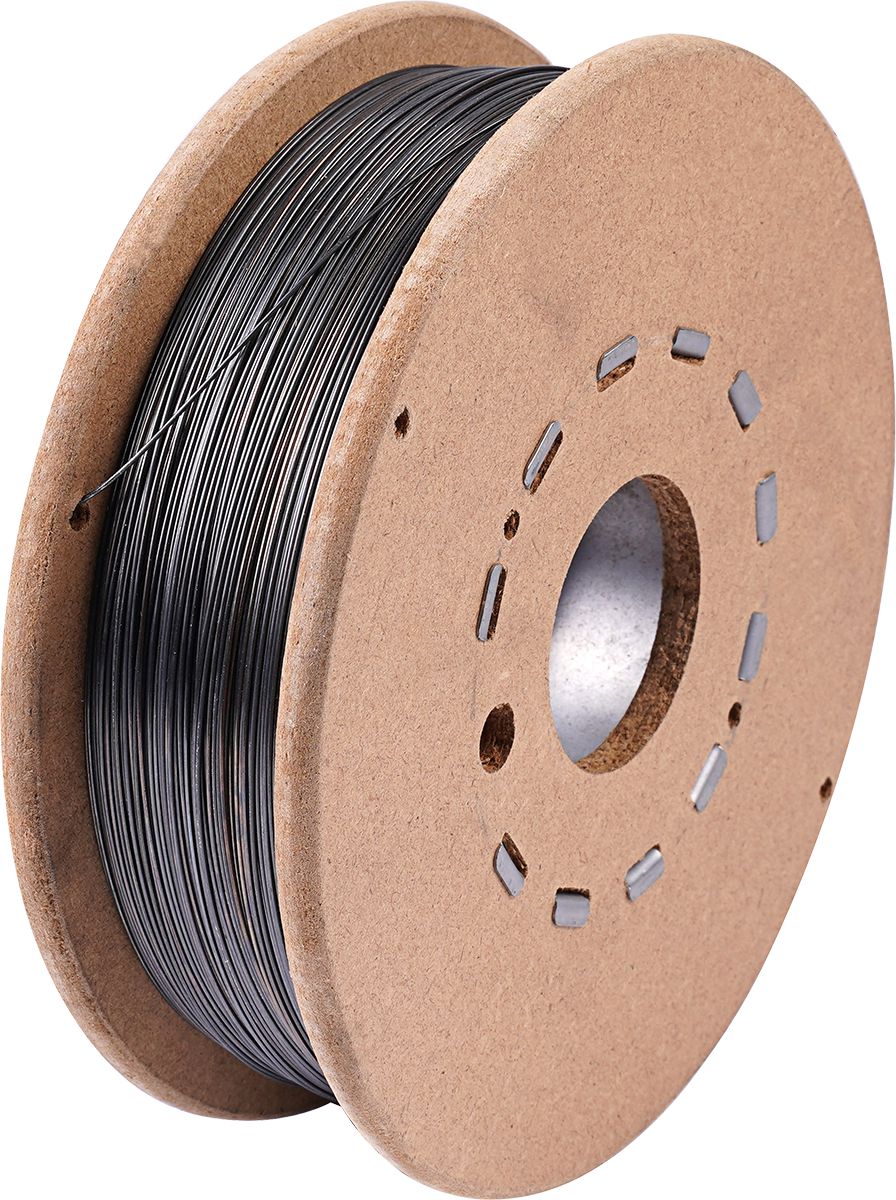

631 Cast-Weld Fc Alloy Wire .035X11LB
(Pack of
11)
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
Weld all grades of weldable cast iron All-position
High deposition saves time and money
Easy slag removal
Wets out even on dirty cast iron
Machinable deposits
High-strength
Tensile strength: 73,000 psi/503 MPa
Elongation: 12%
Hardness: 98 Rb
Machinability: Good
Color match: Good
Current: DCEP
Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Frequently Bought Together

222 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability

130T Machinable Cast Iron Tig Alloy 3/32X36
Couldn't load pickup availability

211 Cast Iron TIG Wire 1/16"
Couldn't load pickup availability

Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability

Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability

Self Ignighting Propane Torch Head
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

Rosin Core Solder 1/16"
Couldn't load pickup availability

383 Stainless Steel TIG Wire 1/16"
Couldn't load pickup availability

333 Dissimilar Steel TIG Wire 1/8"
Couldn't load pickup availability

510 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag. Weld all grades of weldable cast iron All-position
High deposition saves time and money
Easy slag removal
Wets out even on dirty cast iron
Machinable deposits
High-strength
Tensile strength: 73,000 psi/503 MPa
Elongation: 12%
Hardness: 98 Rb
Machinability: Good
Color match: Good
Current: DCEP
Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Technical Specifications
Item#: | EG63140035 |
---|---|
Welding Process | Flux-Core Arc Welding |
Type | Flux-Cored Wire |
Diameter | .035 " |
Base Metal | Cast Iron |
UNSPSC #: | 23271810 |
TAA Compliant: | Yes |
Weight: | 11.77 lb |
