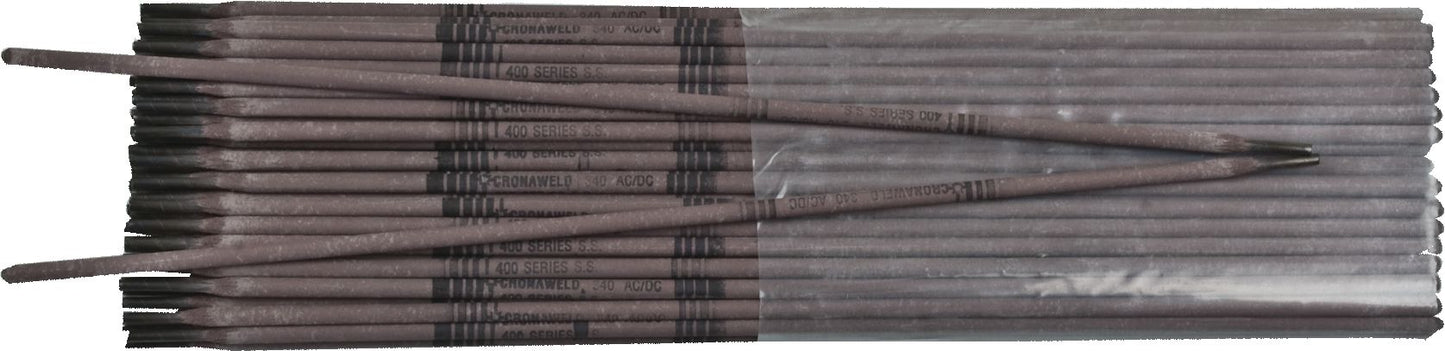

340 Chro-moly Stick Rod Electrode, Flux Coated, 40 HRC Hardness, 25% Elongation, 85 to 120 Amps, DCRP Polarity, 1/8"
(Pack of 5)

SKU:CW1029 Item#: CW1029

Cronatron®

Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.
Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.

Check Availability

Quantity

Frequently Bought Together

103 The Ultimate Low Hydrogen Mild Steel Electrode 3/32

Item#: EG1035000R

106 Mild Steel All Purpose Electrode 3/16

Item#: EG10620000

106 Mild Steel All Purpose Electrode 5/64

Item#: EG1066000G

SAE Flat Washer Thru-Hardened Steel 5/16"

Superbutt Connector 22 to 18 AWG Red

Locknut with Nylon Insert Grade 8 5/16-18

Round Soapstone 1/4 x 5"

201 Rectangular Wear Disc Plate 3 x 6 x 5/32"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

109 High Strength Electrode 1/8

Item#: EG10940000

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375

E6011 Mild/Carbon Steel Stick Electrode 5/32"

Product Description

Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.
Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.

Technical Specifications

Item#:	CW1029
Welding Process	Stick
Type	Flux Coated
Diameter	1/8 "
Tensile Strength	140,000 PSI
Elongation	25 %
Base Metal	Chro-moly
Hardness	40 HRC
Polarity	DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.0 lb
