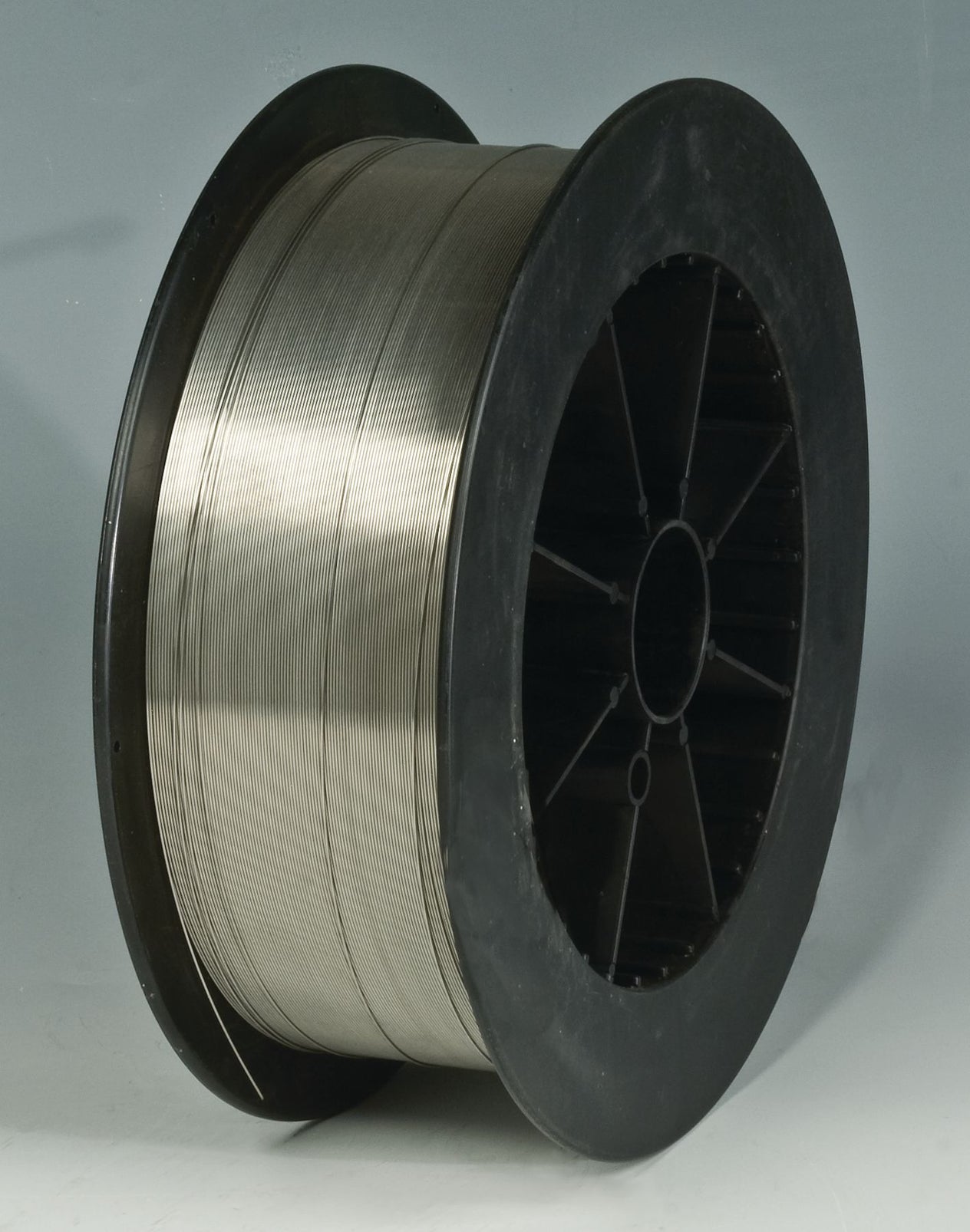

383 Stainless Steel MIG Welding Wire, Solid, 75Ar/25CO2 or 98Ar/2Ox Shielding Gas, 35% Elongation, DCRP Polarity, 0.035"
(Pack of
25)
SKU:CW5153 Item#: CW5153
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.
Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Gas: 98% Ar, 2% O2 or 90% He, 7.5% Ar, 2.5% CO2
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
E309L-16 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
ER316L Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
ER309L Stainless Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
TIG Welding Electrode 3/32"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Gas: 98% Ar, 2% O2 or 90% He, 7.5% Ar, 2.5% CO2
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5153 |
|---|---|
| Welding Process | MIG |
| Type | Solid |
| Diameter | .035 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 75Ar/25CO2 or 98Ar/2Ox |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 27.5 lb |
